Adrian Tanner

December 2015-October 2016

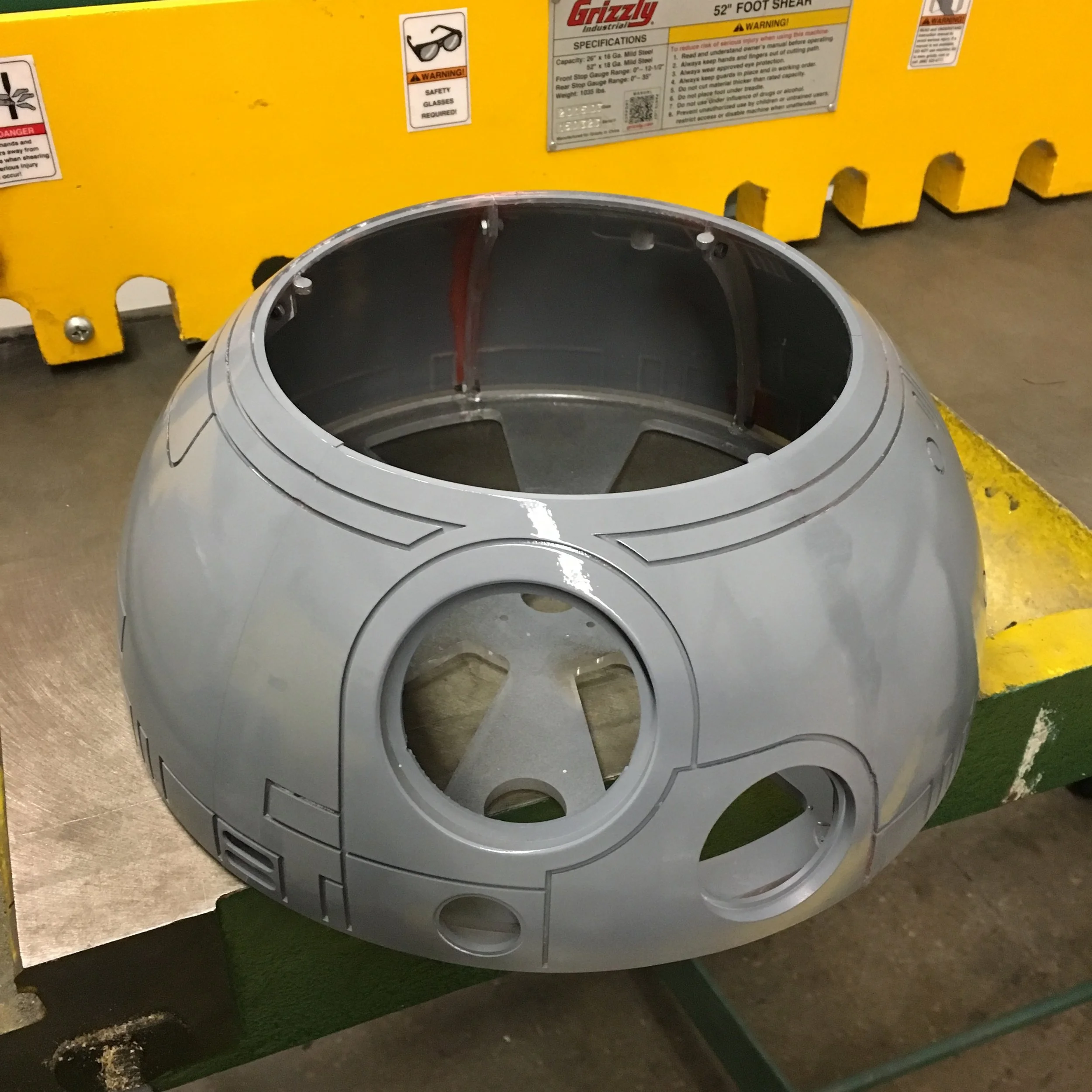

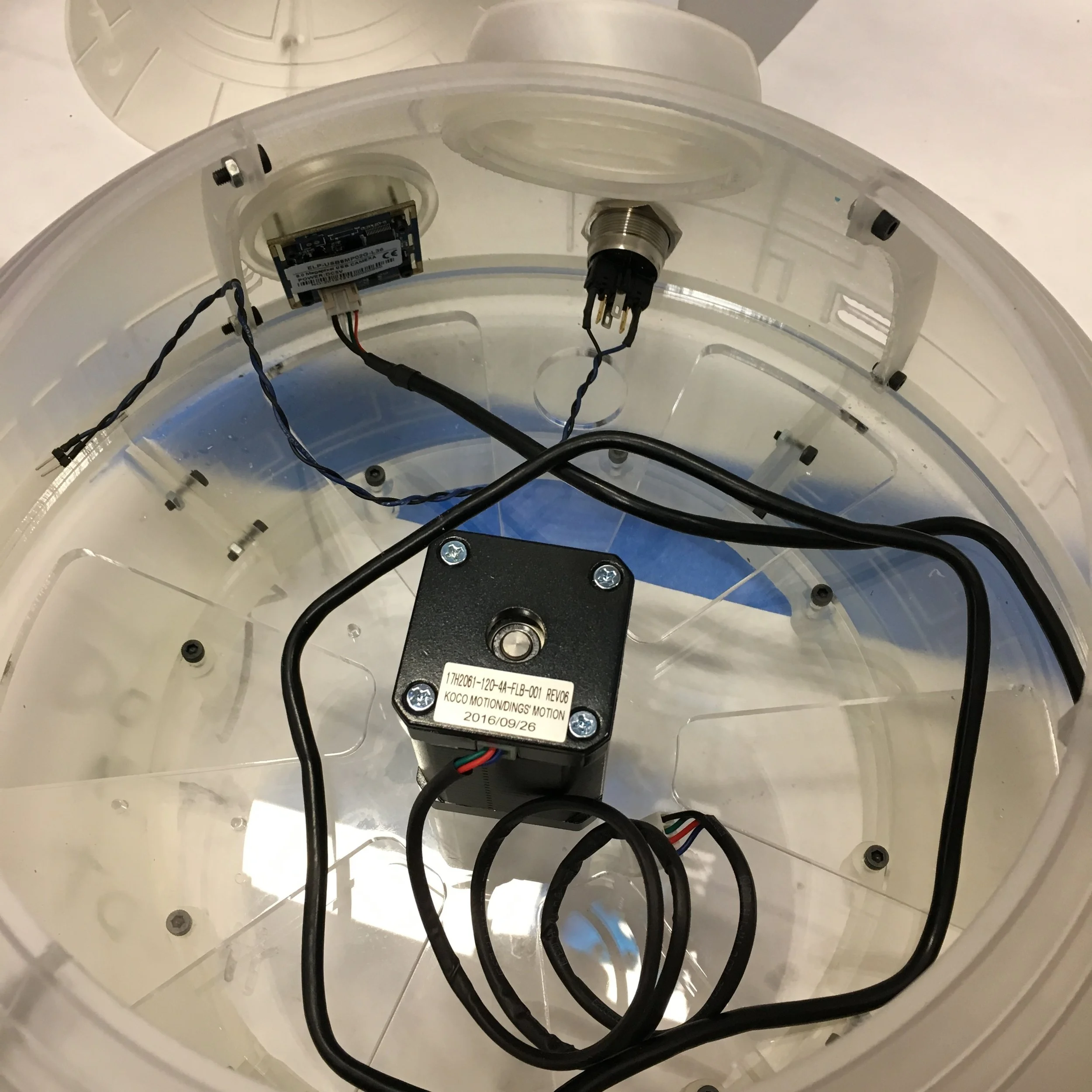

Full-scale R2D2 Astromech replica

I began CAD shortly after The Force Awakens was released and finished the whole project the following October. The project traveled to NY Maker Faire and was not destroyed by the hundreds of children who passed by the booth and tugged on its parts - big win in my book.

The project used approximately 10 liters of resin and runs on Form 2 electronics.

Credit to Rob Chron for the glamour shot

October - November 2023

It has brakes mom I swear

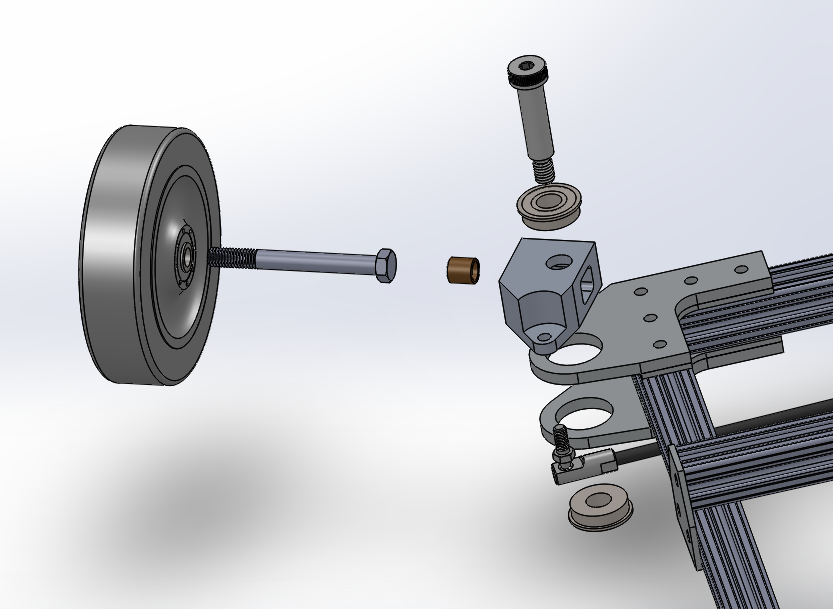

Miniature electric motorcycle designed in Onshape. Uses mostly COTS or parts already available to me.

Created with parts scavenged from a broken e-scooter and a decommissioned pharmaceutical robot, this quick and fun build was a hit with the kids at work! The only custom parts are the printed seat, the wheel mounts, and steering plate assembly. I’m considering getting the carbon steel parts powder coated or enameling them myself in the future to prevent deterioration.

On a mostly volunteer basis I work with my good friend David running STEM programs for kids at the Boys and Girls Club in South Lake Tahoe. I help out with design, writing curriculum, and teaching in-person when possible.

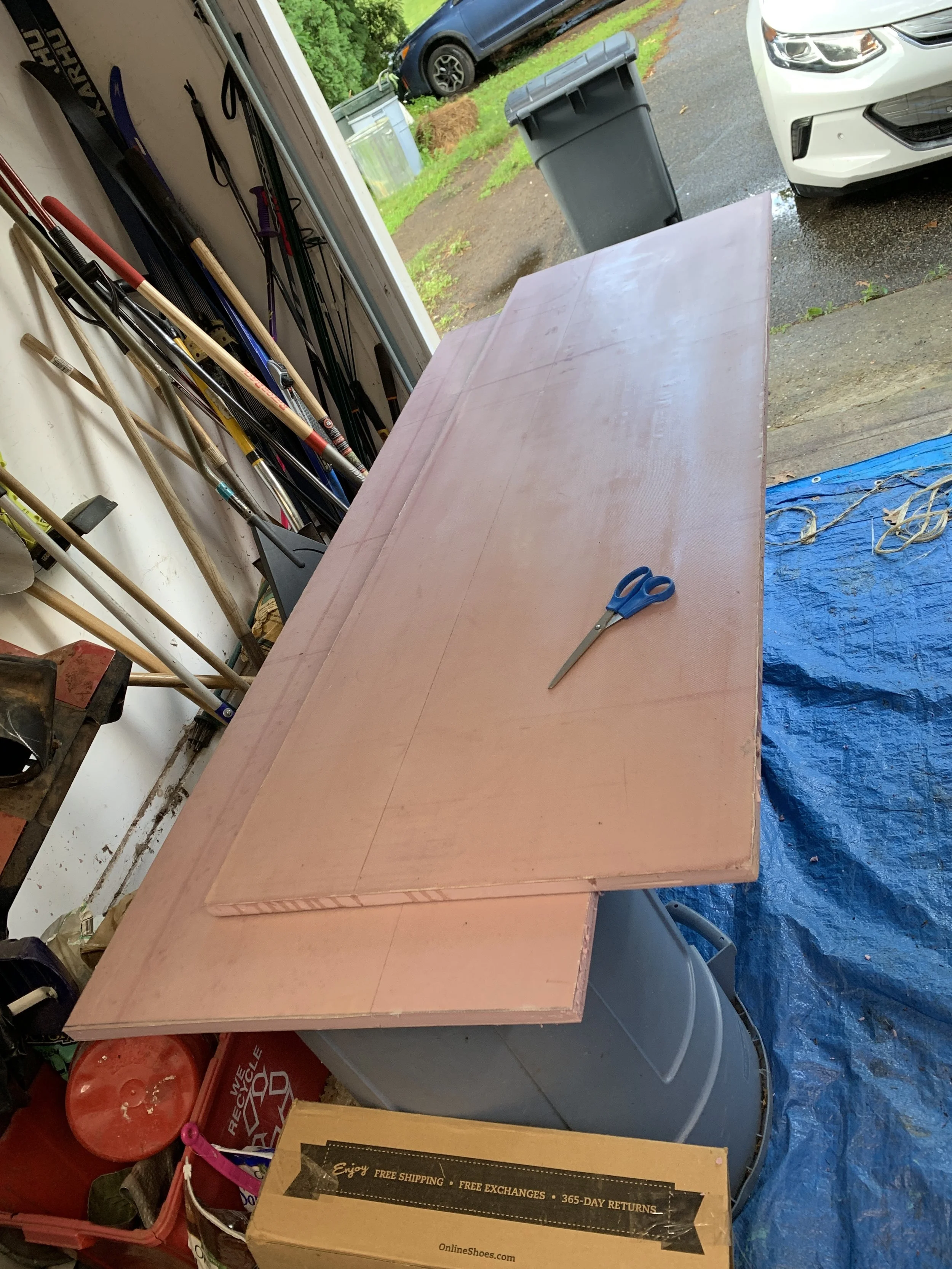

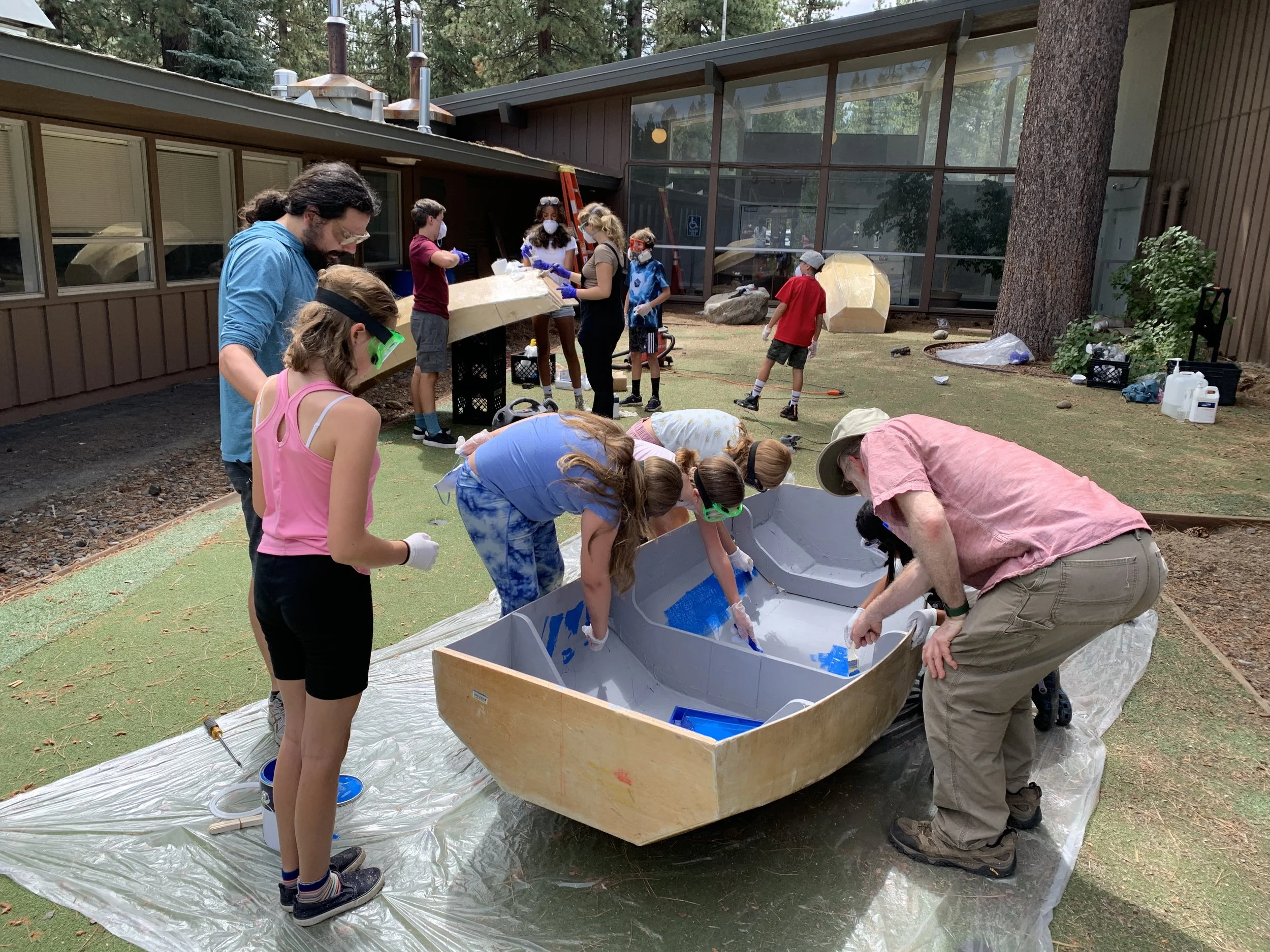

Here is an article about the plywood/composite boat building camp we ran summer 2023! None of the boats sank but several ended up with scissors or paint brushes epoxied to the hulls :)

February - March 2020

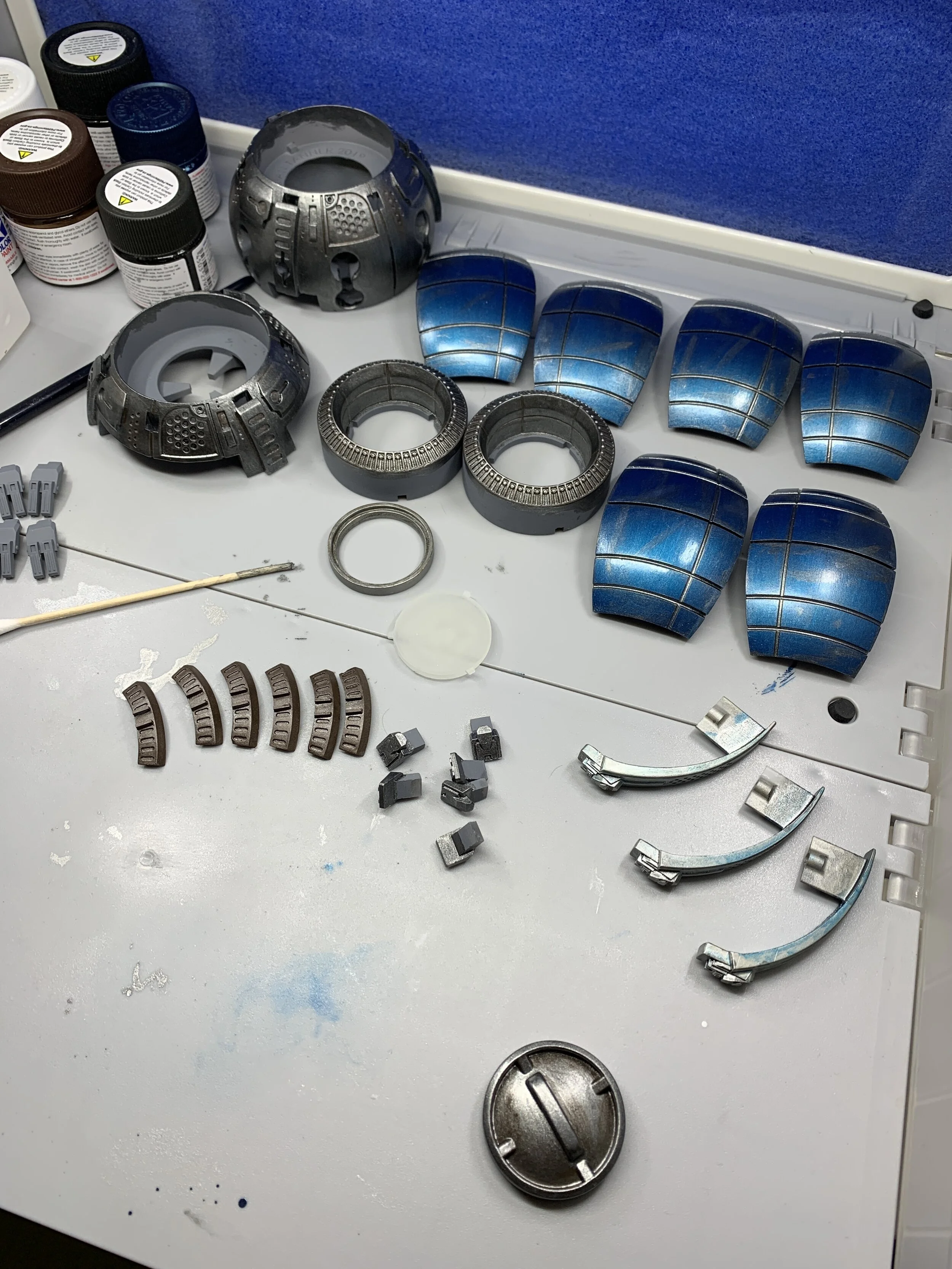

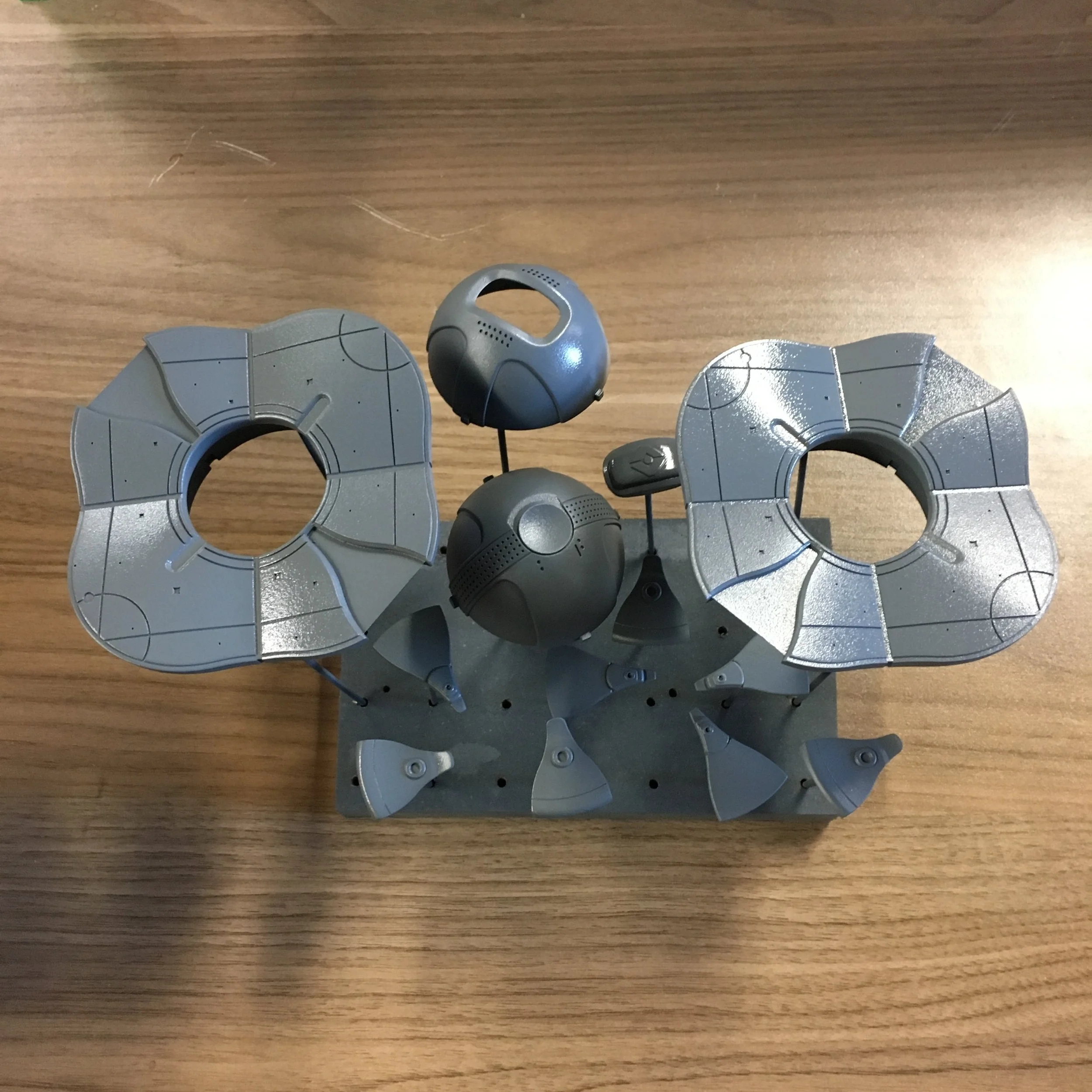

Highly detailed model of the Totem Shell from Destiny 2. Snaps together with magnets. All parts printed on Form 2 SLA machine, painted with Tamiya acrylics.

Solidworks

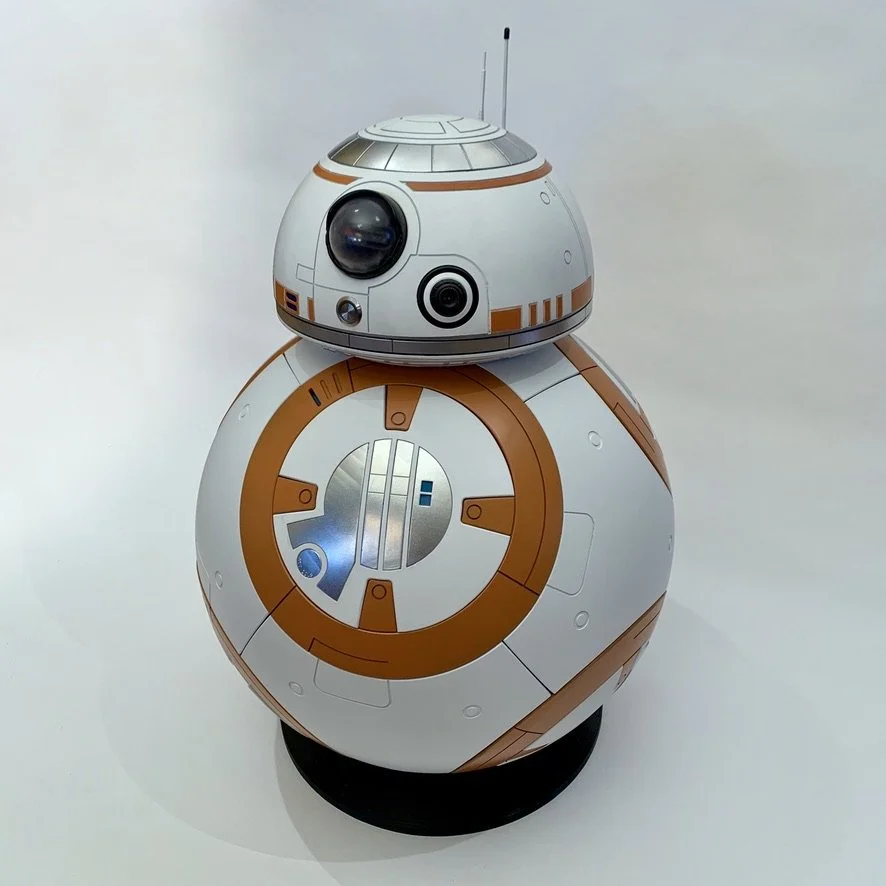

January 2018 - Ongoing

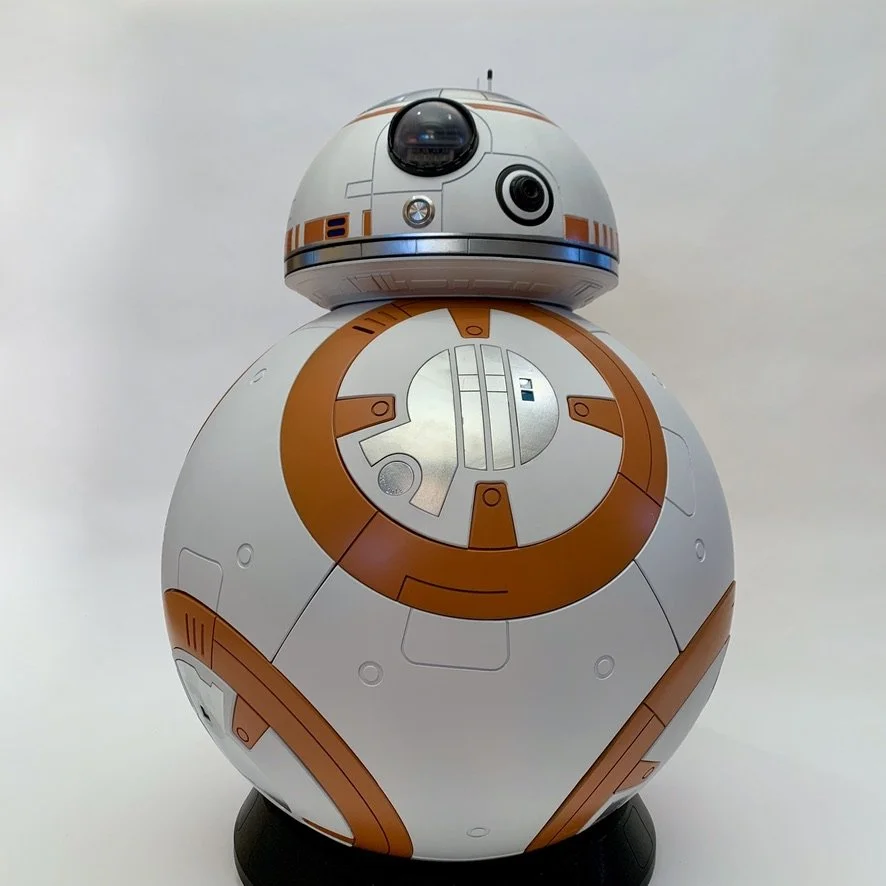

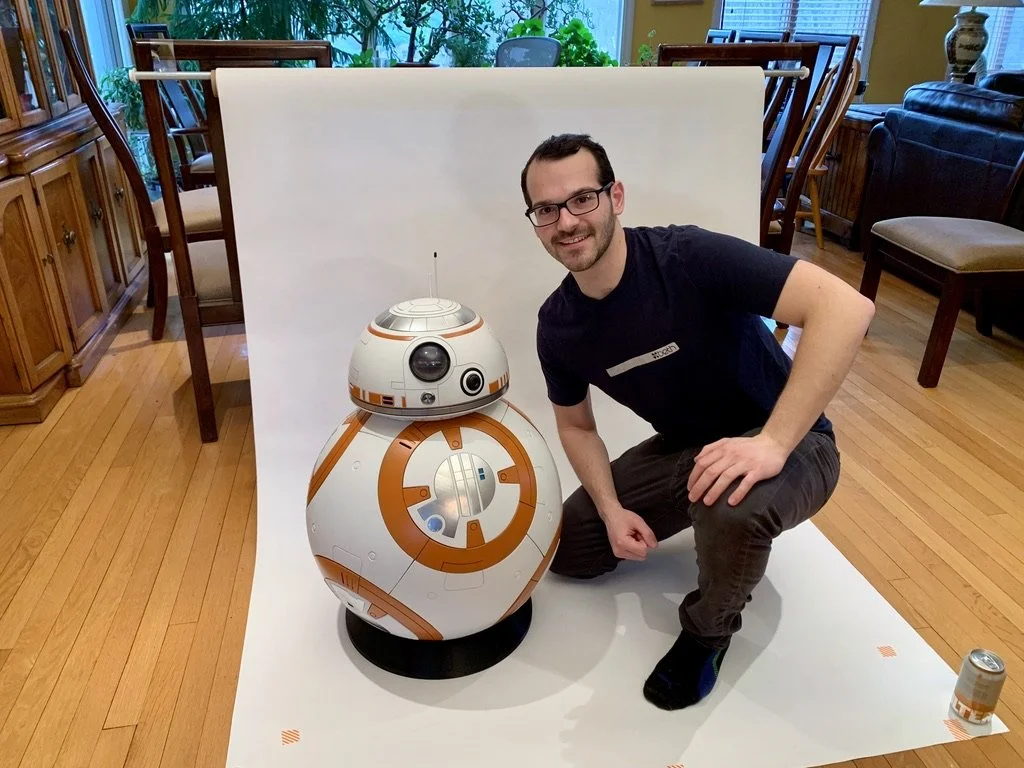

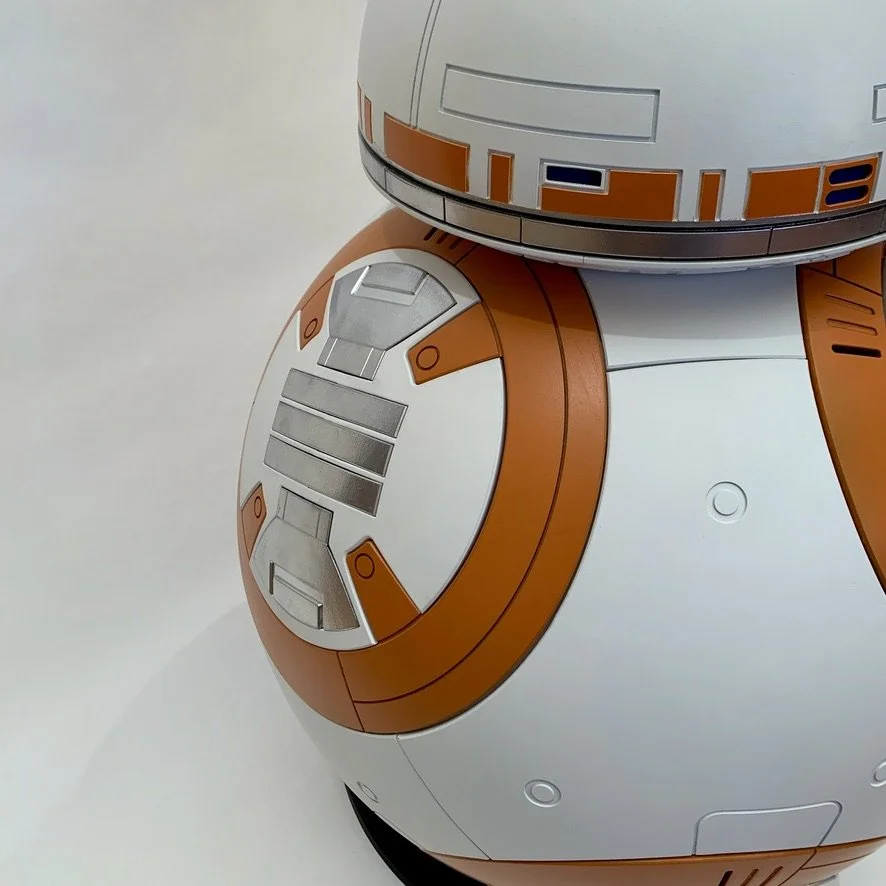

Full-scale BB8 replica from Star Wars VII

Solidworks

SLA 3D printed parts

Spray paint

LEDs, Laser, USB camera

For my latest work, please find me at @claybyclaudio on Instagram

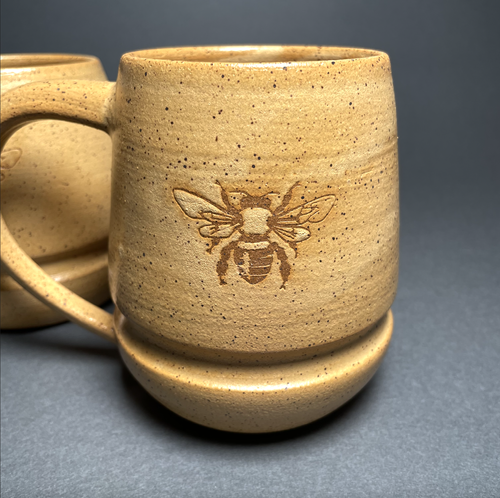

if you hire me I’ll make you a mug

March 2018 - Ongoing

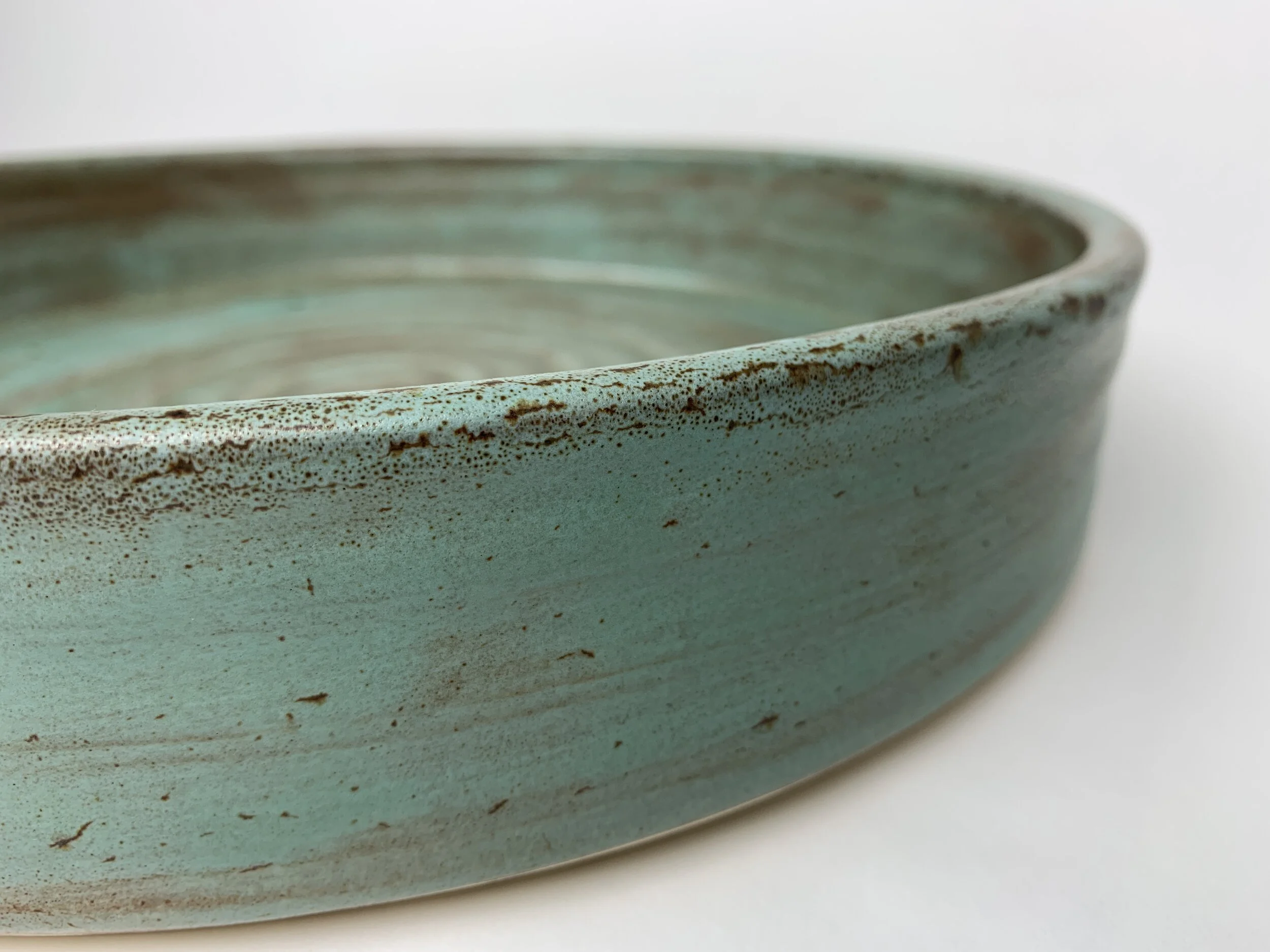

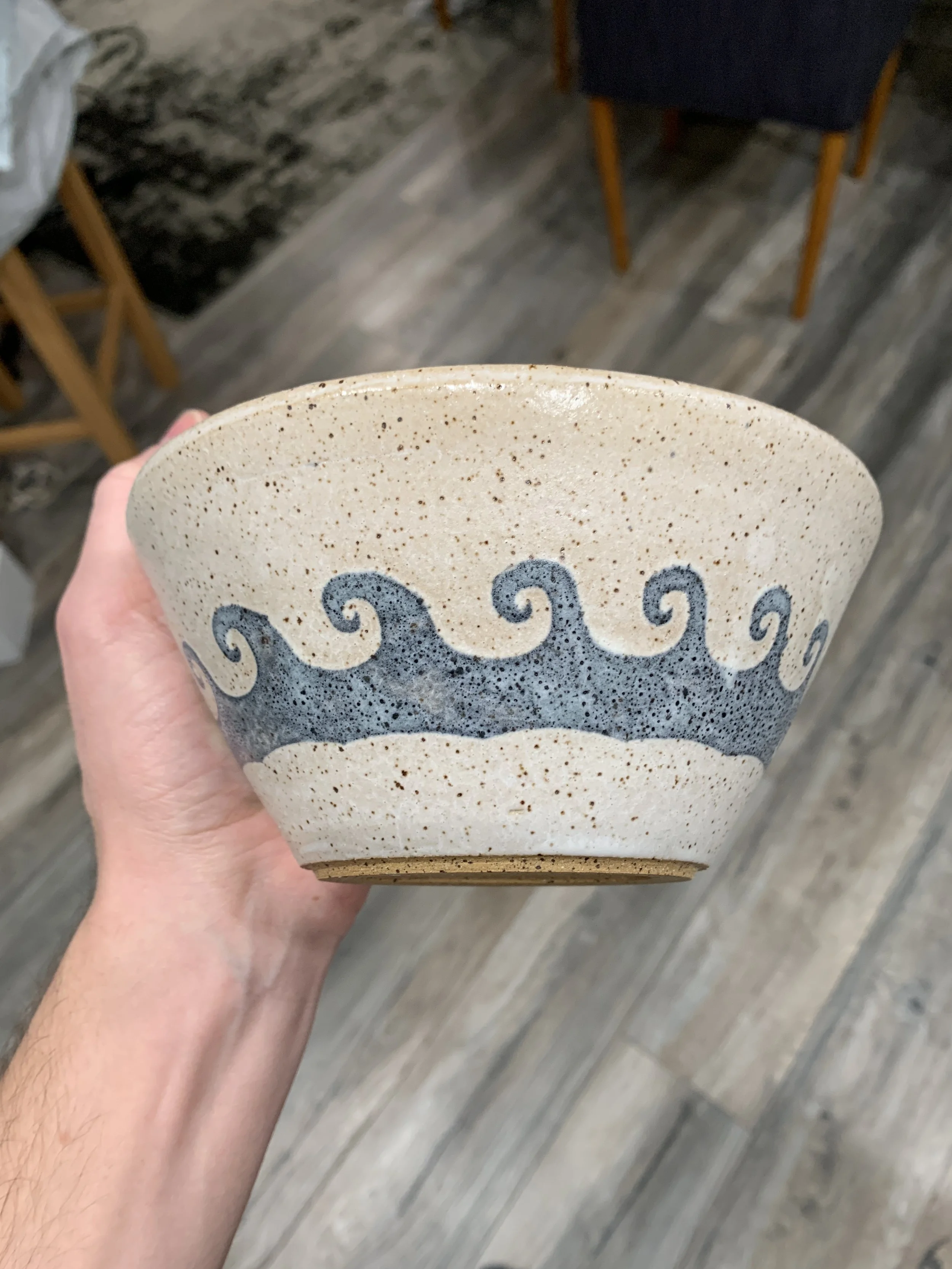

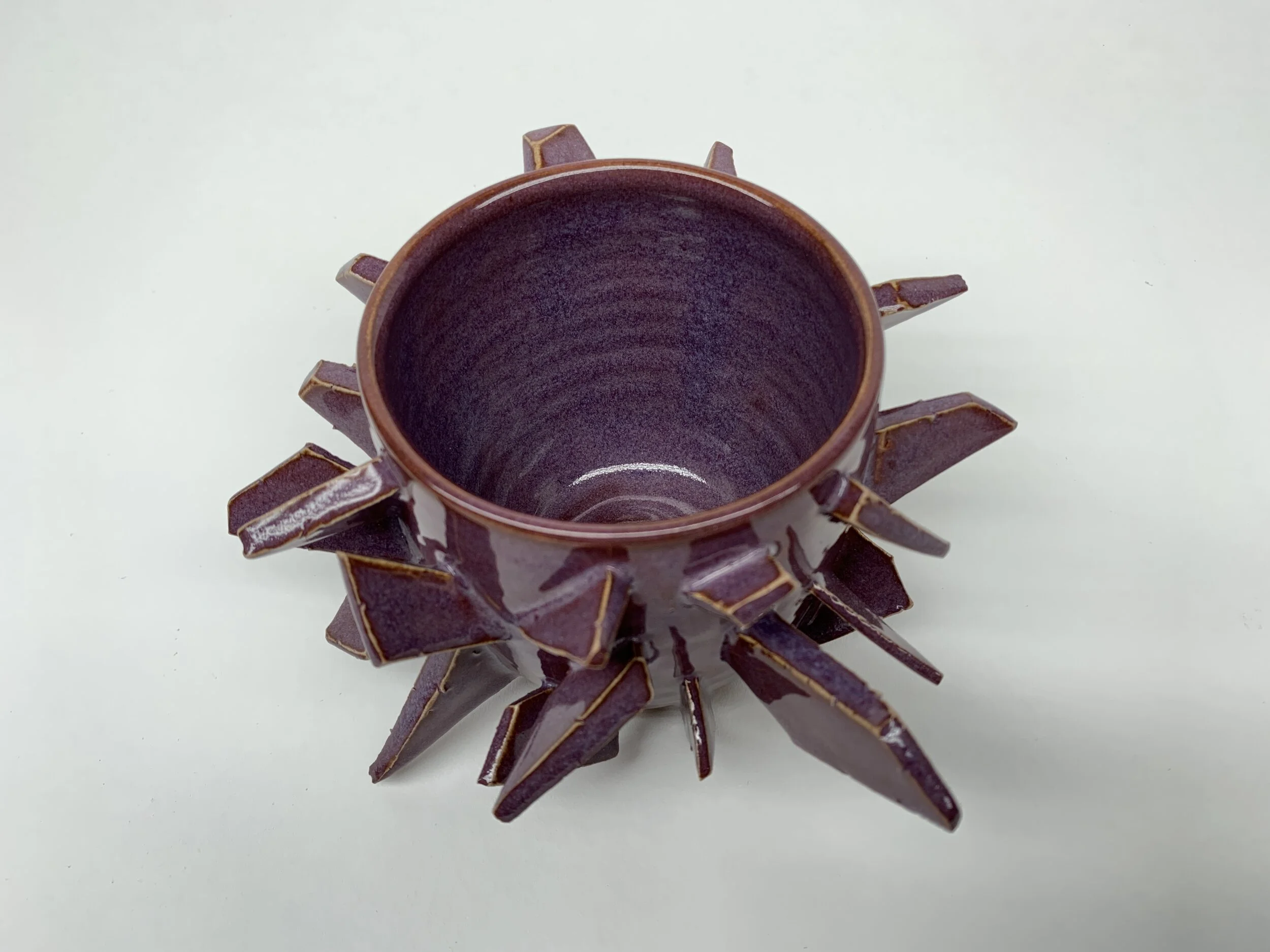

Contents include functional pots as well the decidedly less functional members of the ‘Kate’s Shitty Mugs’ Series.

Lately I’ve been creating patterns on my pots using vinyl stencils that I design in Sketchbook and Inkscape. I use a Silhouette Cameo 4 to cut my stencils.

Just having fun. I made some t shirts.

Get it? It’s a pizza meatball.

June 2015 - Ongoing

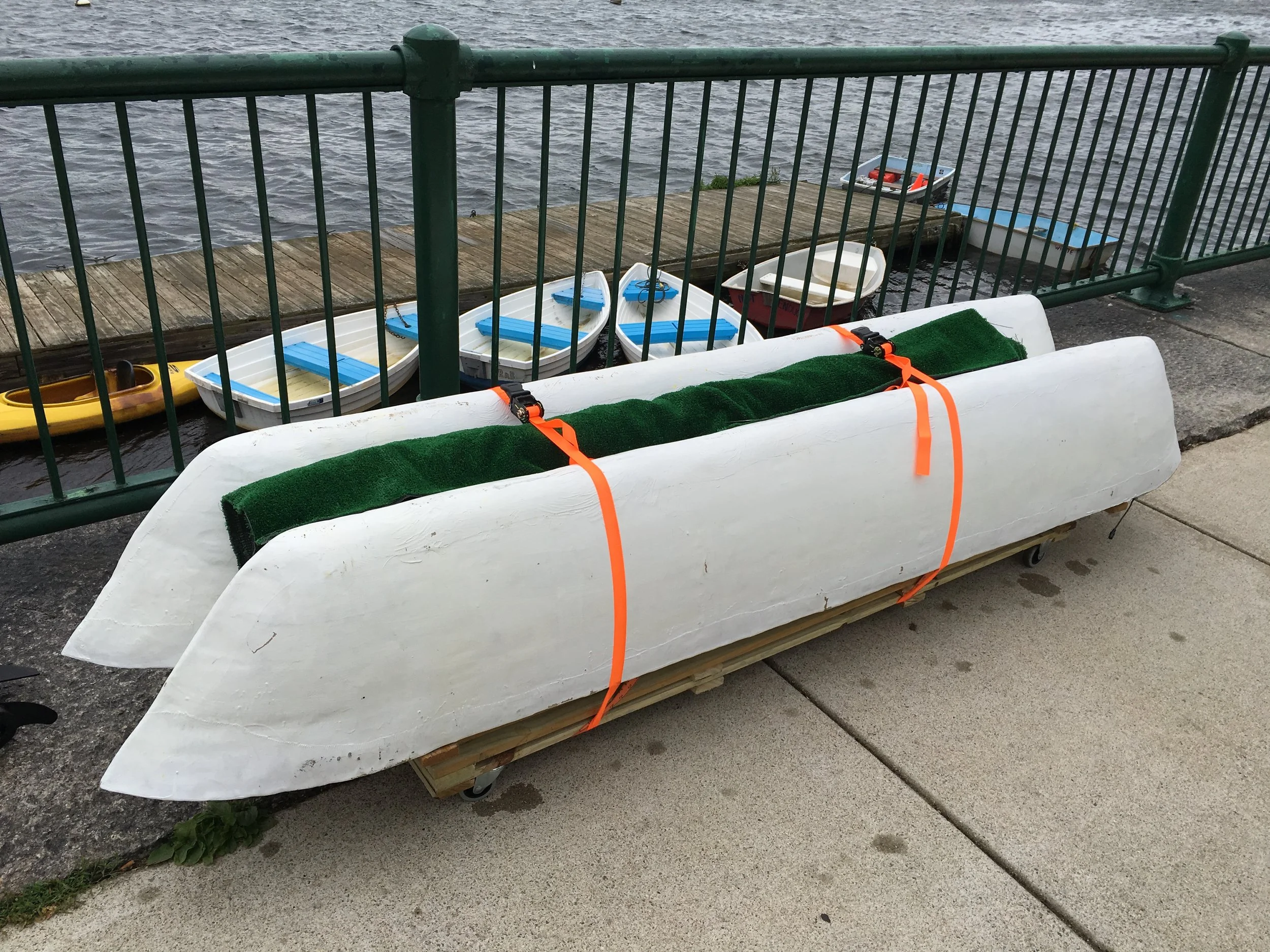

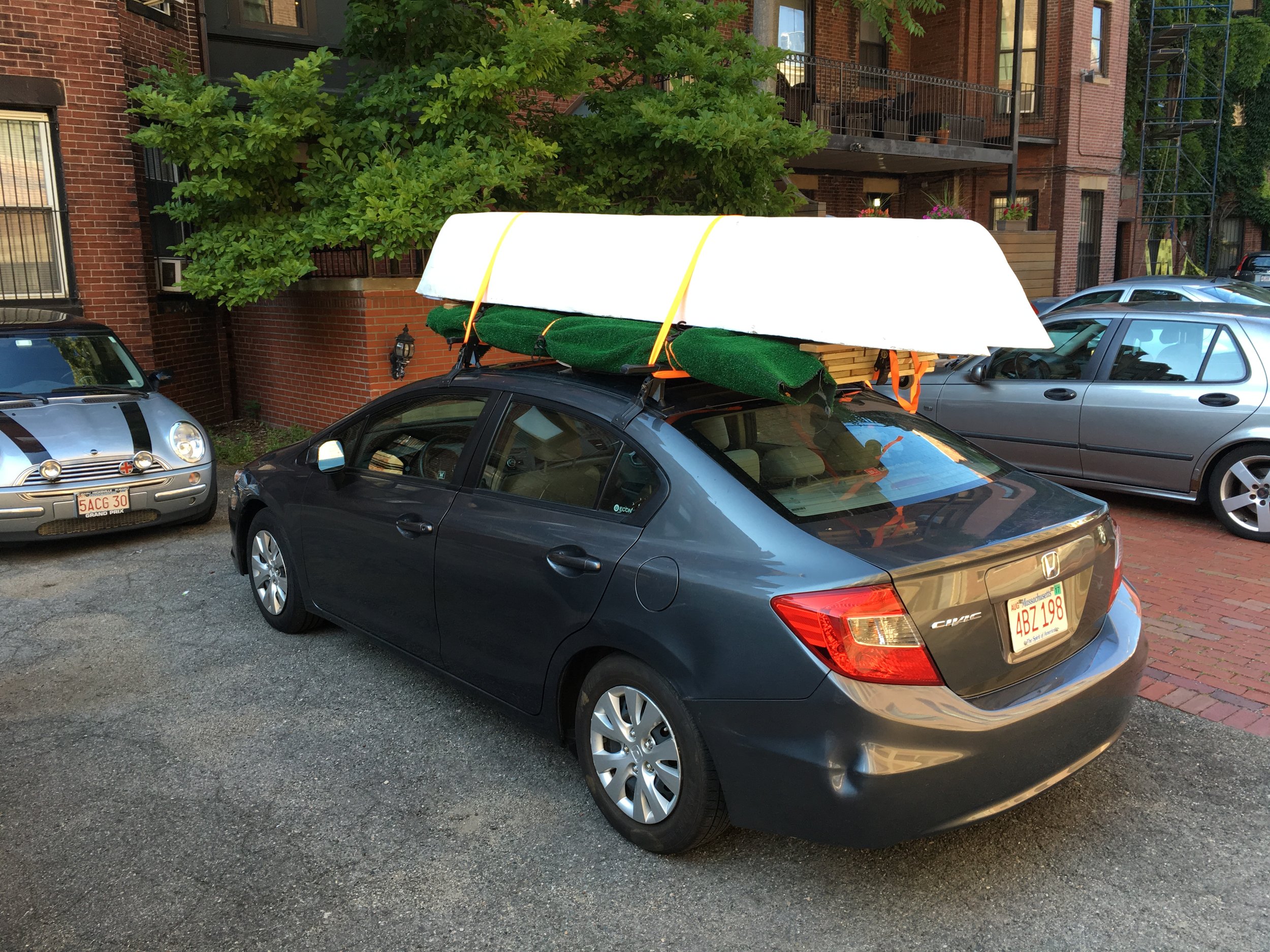

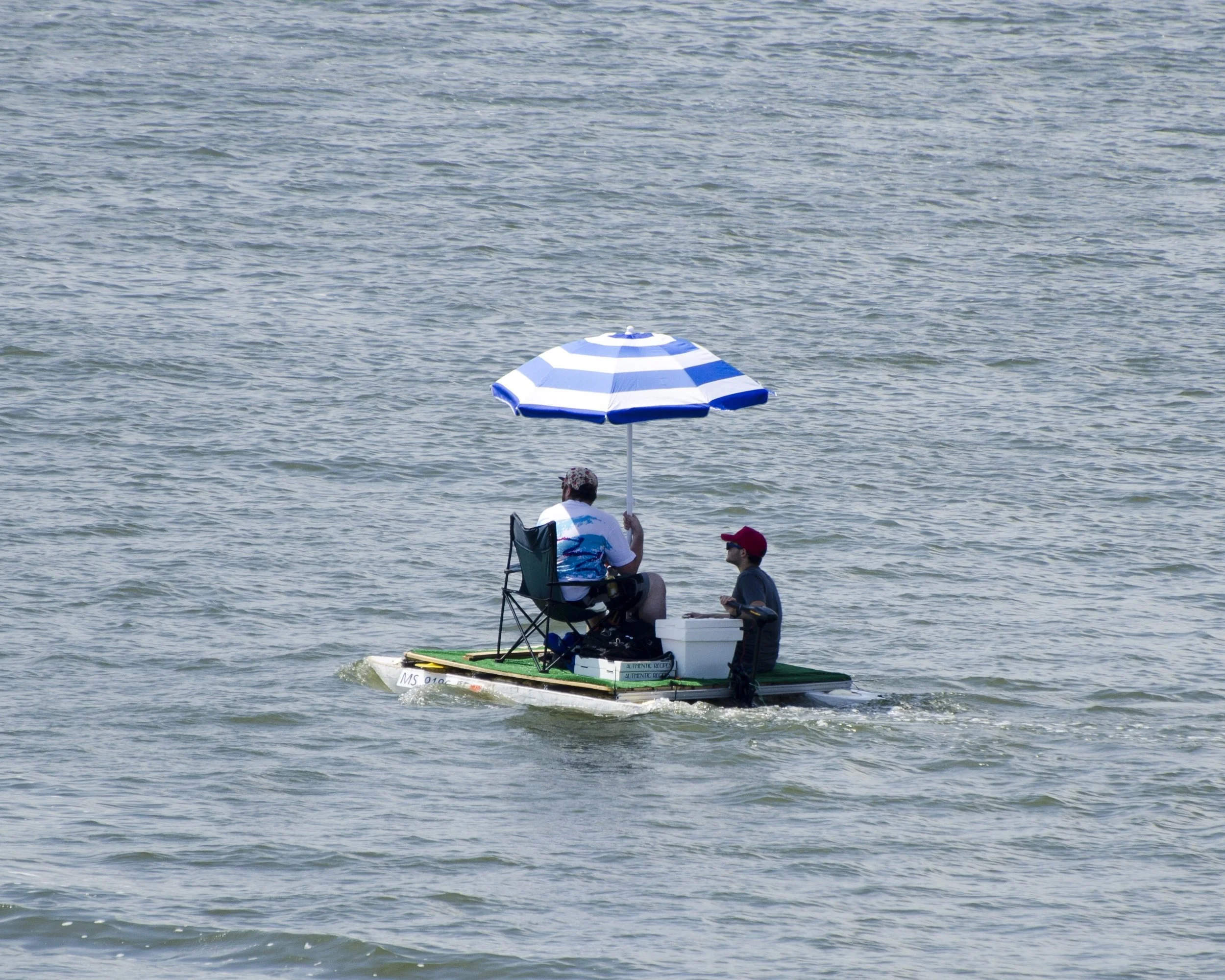

My homemade collapsible Pirate Ship

Registered MA Motor Vessel (!)

EPS insulation foam, fiberglass + epoxy layup, aluminum extrusion frame, wood + astroturf deck

Is subject to periodic improvement, mostly for ease of assembly.

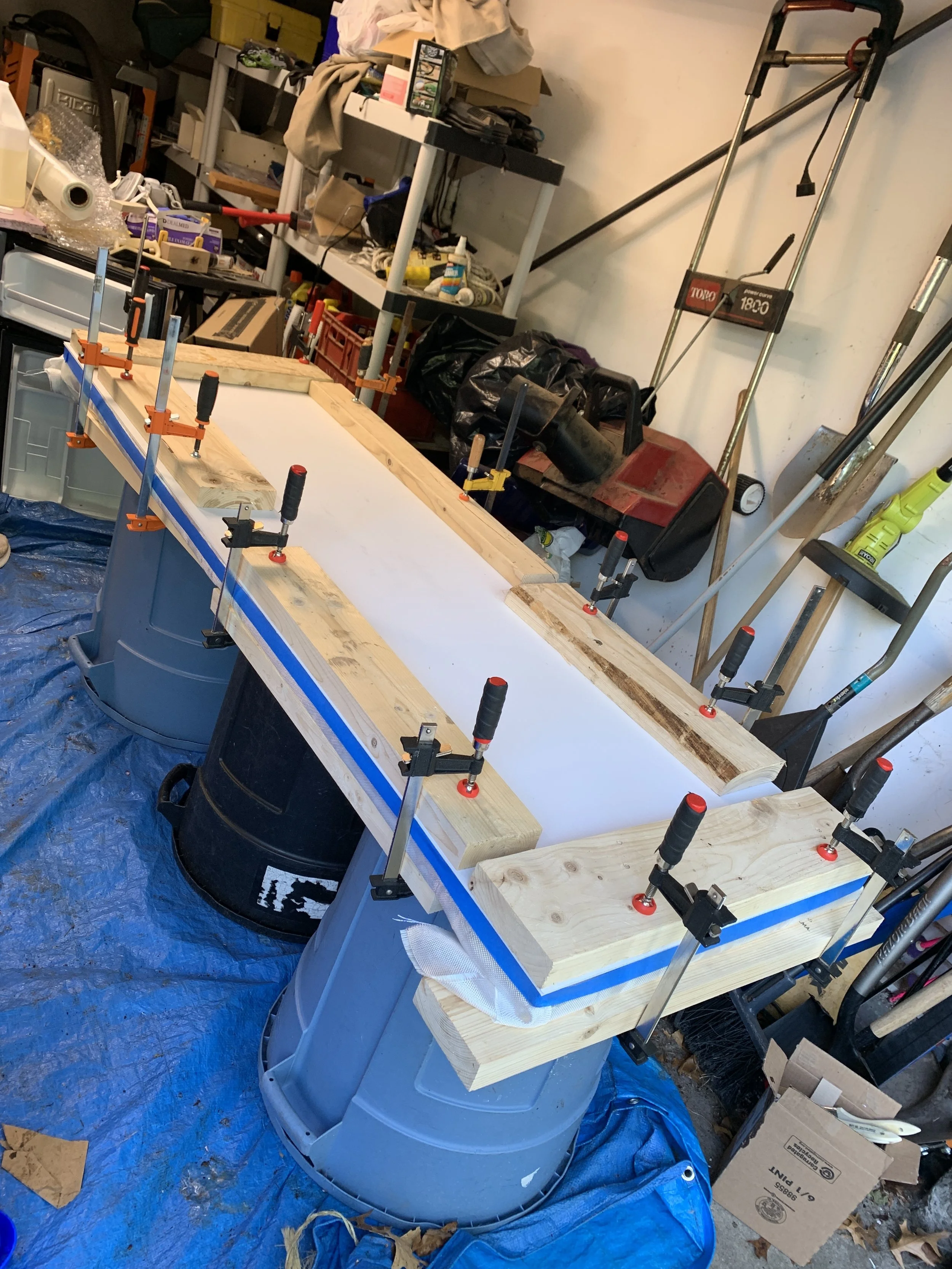

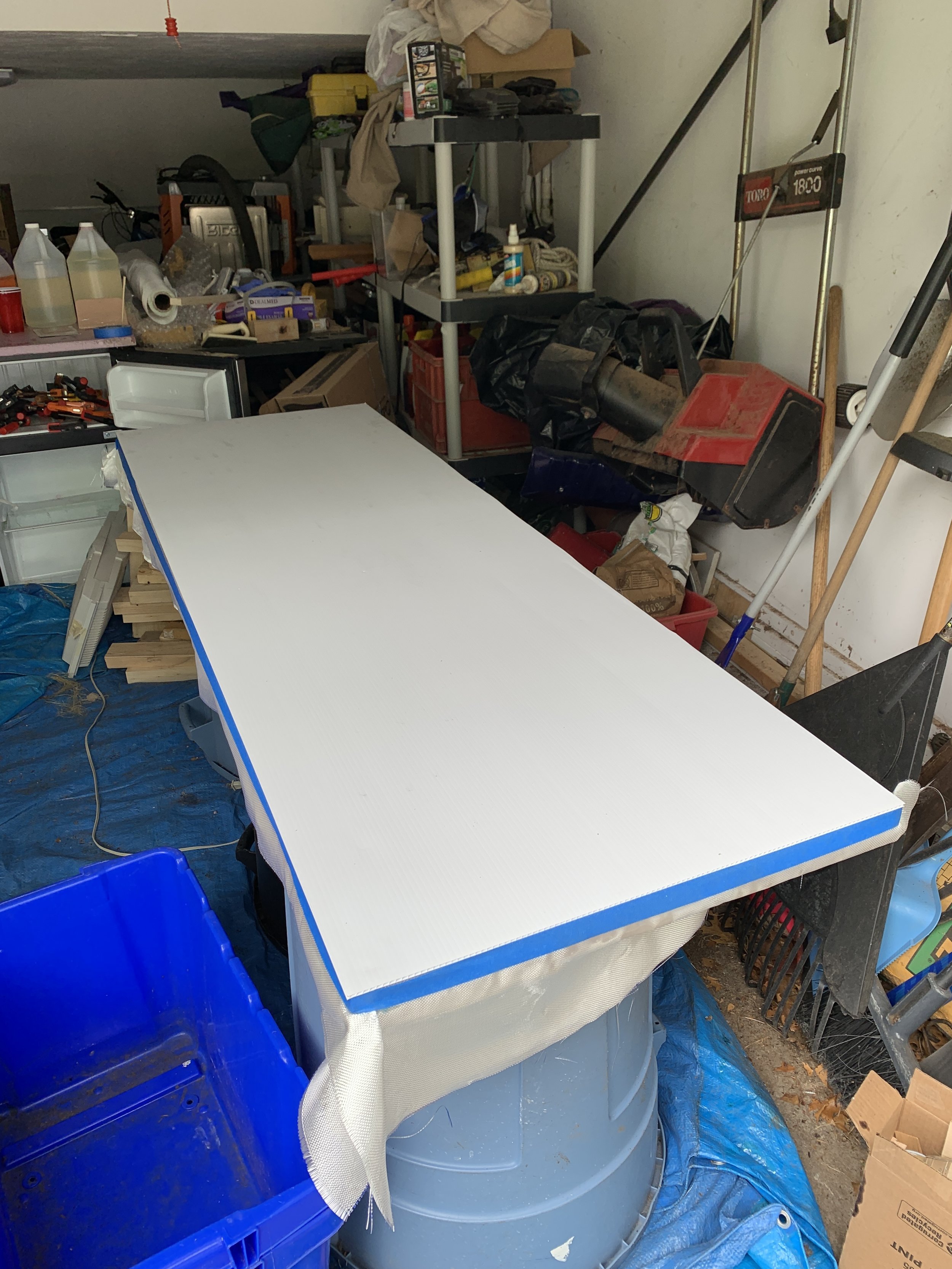

Summer 2019: wooden deck being replaced by foam/fiberglass/coroplast sandwich to decrease weight. Possibility of getting 2-stroke engine to replace electric, which would mean more frame renovations.

Most notable fact: has not sunk yet.

June 2016 - July 2018 (project handoff)

https://www.playsuperlative.com/

March - August 2020

Full scale replica of Devil’s Ruin exotic sidearm from Destiny 2.

Printed in PLA on Prusa i3 Mk3 and CF/Nylon on Markforged Onyx One. Laser Flaps actuated by the trigger, arduino pro mini inside controls LEDs and laser for normal/charged firing animation.

Solidworks

Summer 2020

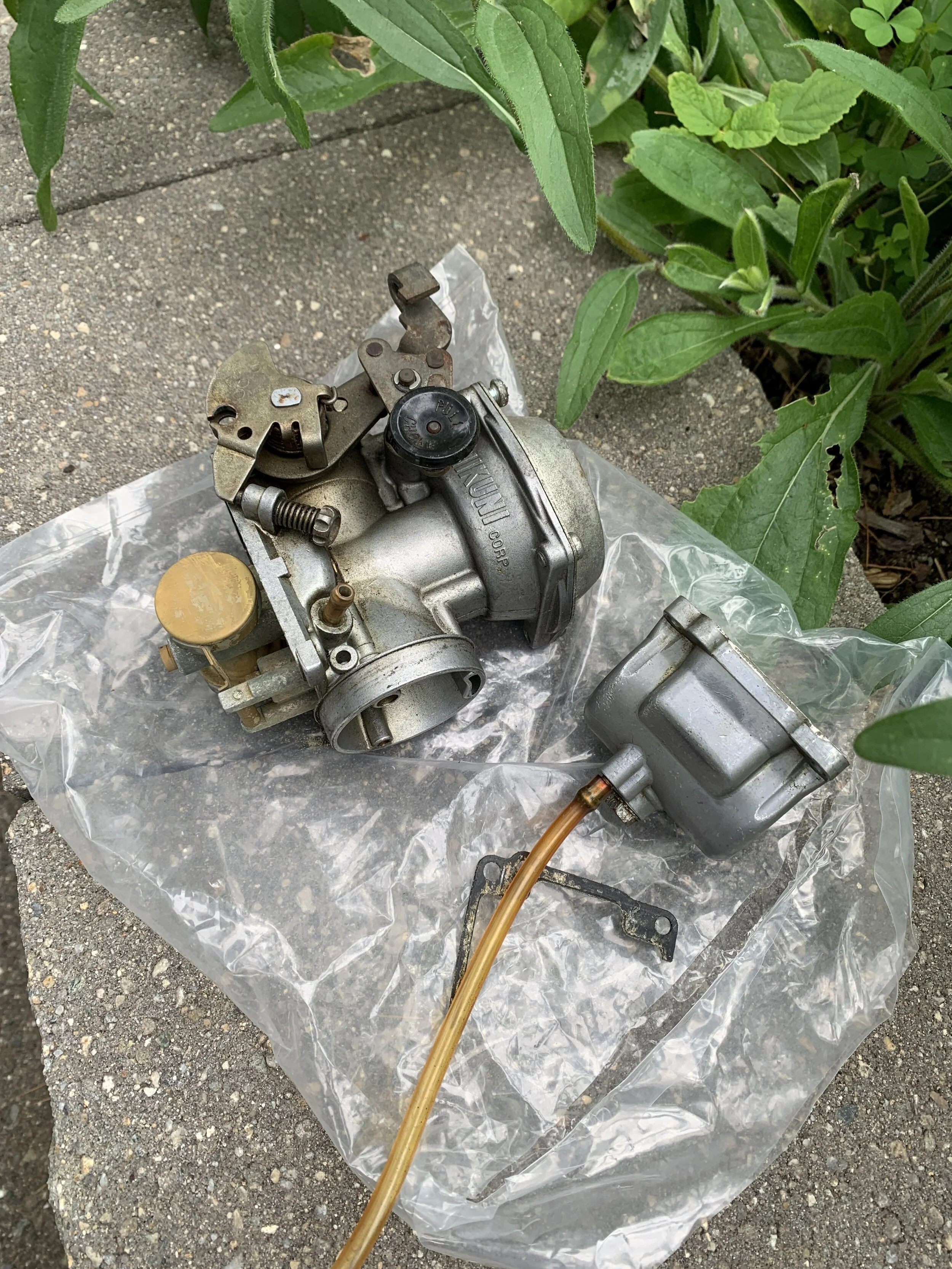

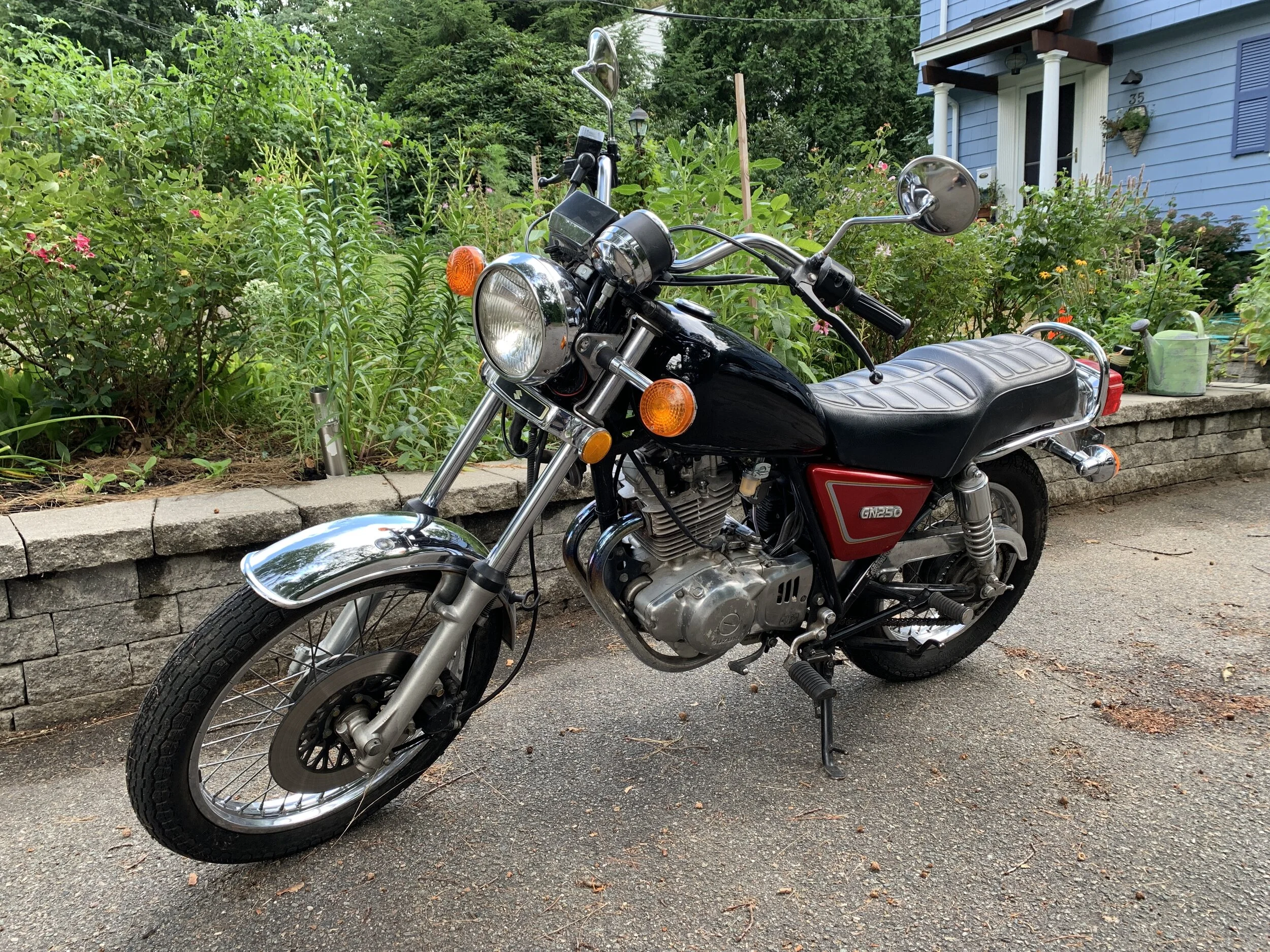

In 2017 I bought a 1988 Suzuki GN250 Motorcycle. It wasn’t running and I took it on as a project to learn about small engines and eventually how to ride a motorcycle. The bike limped along with the aid of regular carb cleanings for several years until I decided to fix ALL THE THINGS once and for all and sell it.

In the end, the bike got a new battery, fuel tank, petcock, fuel line, carburetor, spark plug, air filter, and oil filter. I had a few friends help out and several of them learned to ride as well. I learned a lot about carburetor maintenance (and why I will always opt for fuel injection) and gained an appreciation for how much could be done without fancy digital ECUs. Always check battery polarity.

October 2019

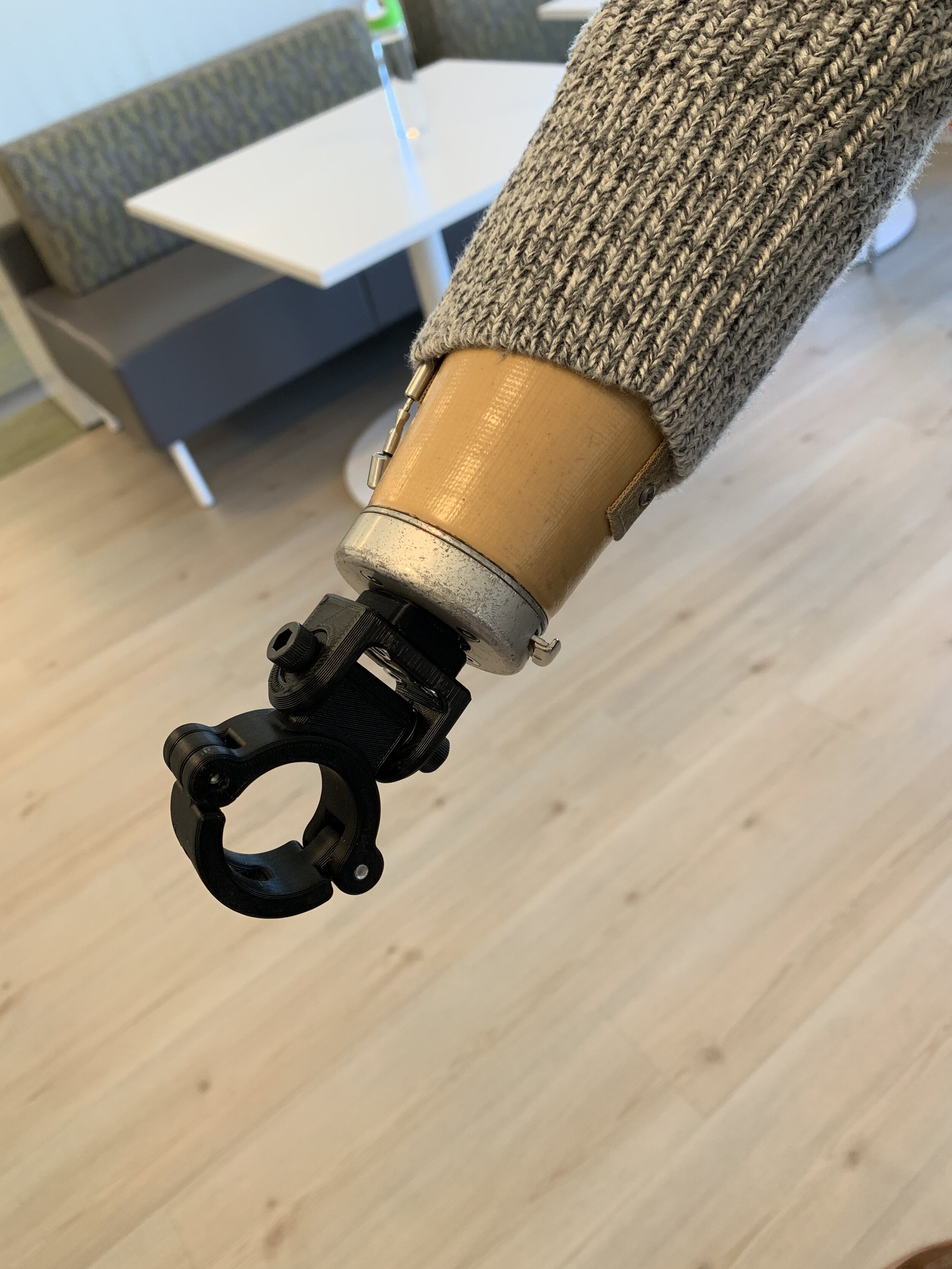

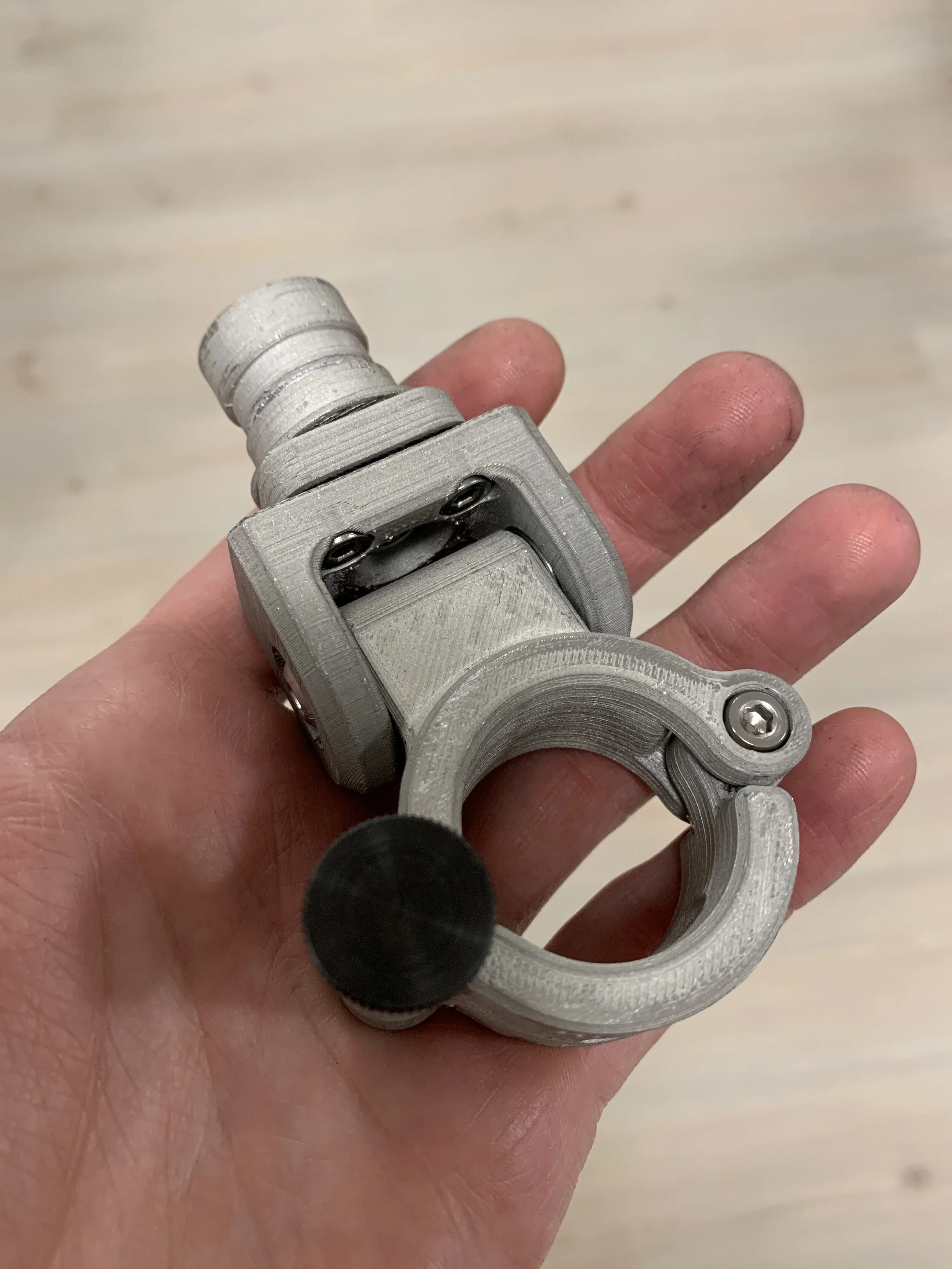

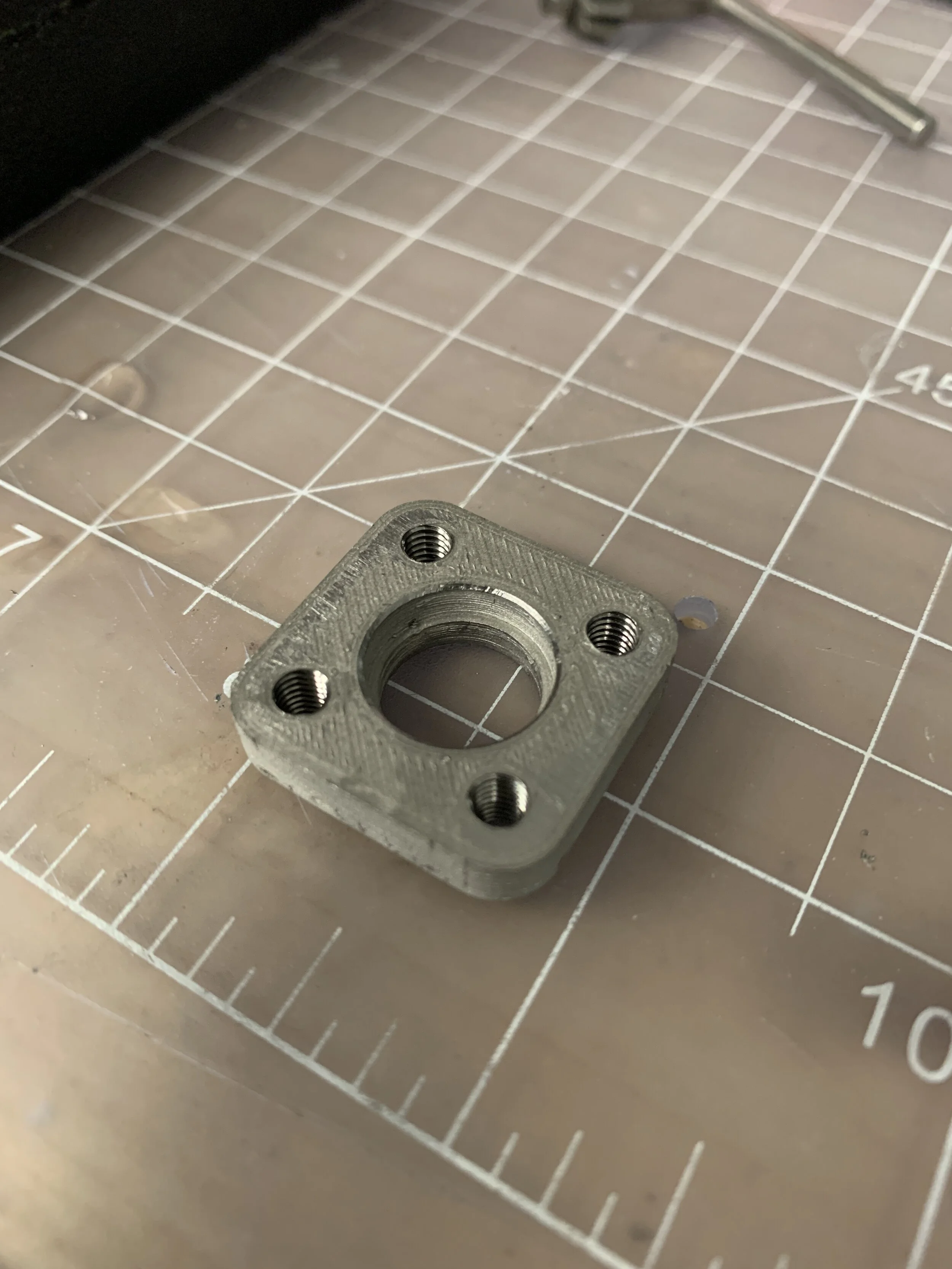

Created for a friend missing a hand. Sized for standard bar diameter. Prototyped in PLA, final printed on Desktop Metal Studio system in 17-4 Stainless

Solidworks

May - November 2018

IKELOS_HC_V1.0.1 // Destiny 2

Solidworks

SLA 3D printed parts, spray paint, speaker wire, magnets

Yes the zip ties are actually in the game!

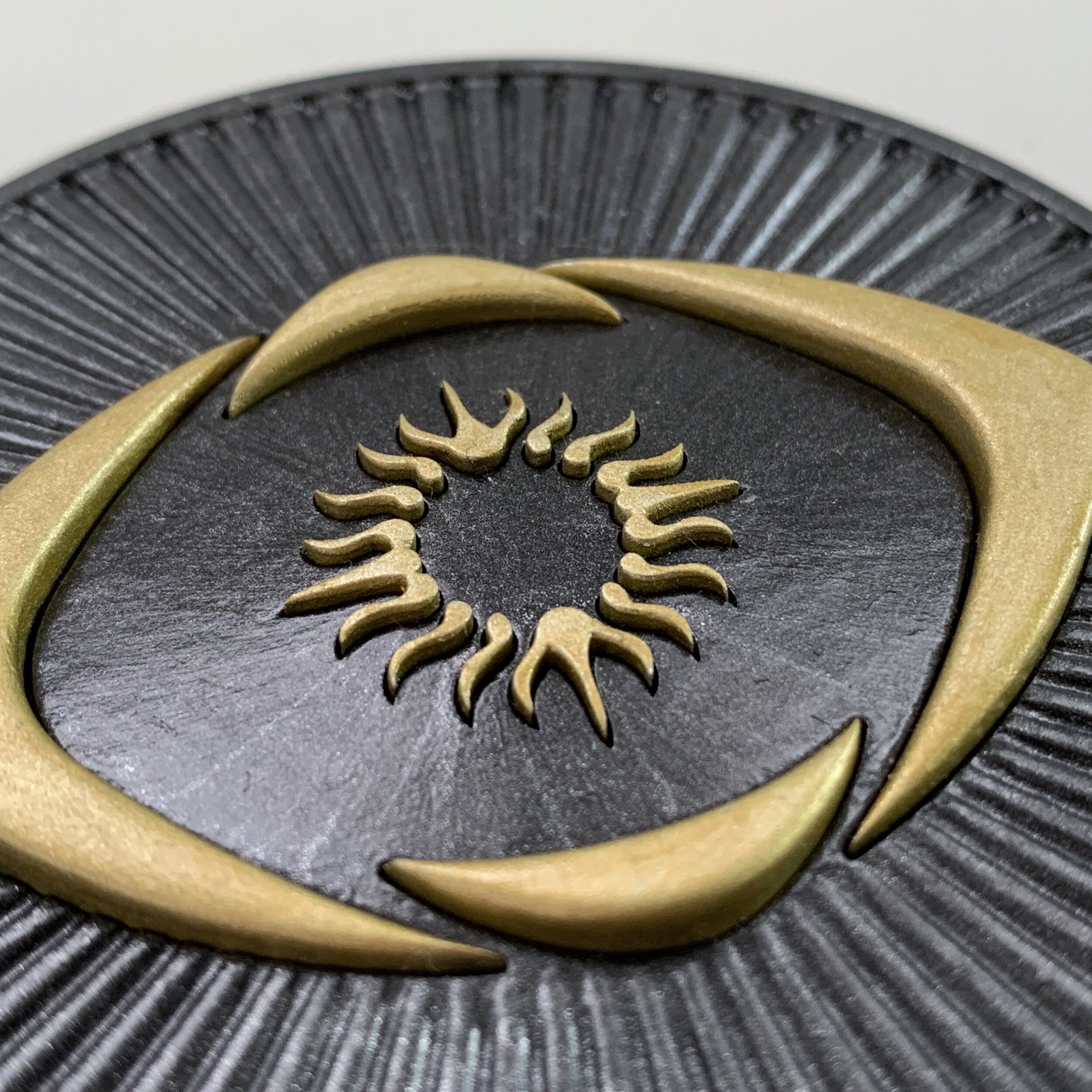

June 2020

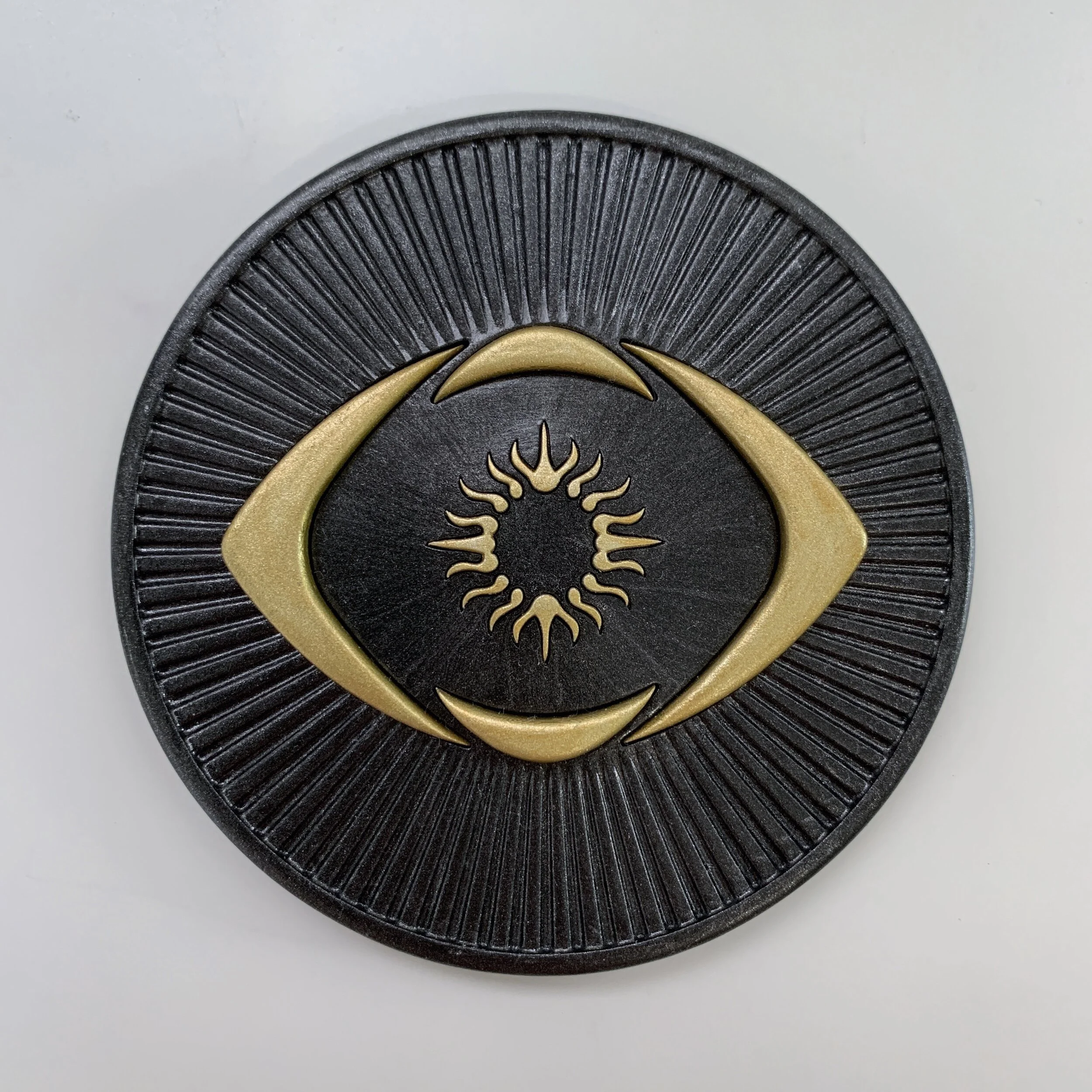

Earned through victory in the Trials of Osiris.

SLA on Form 2, painted with Tamiya.

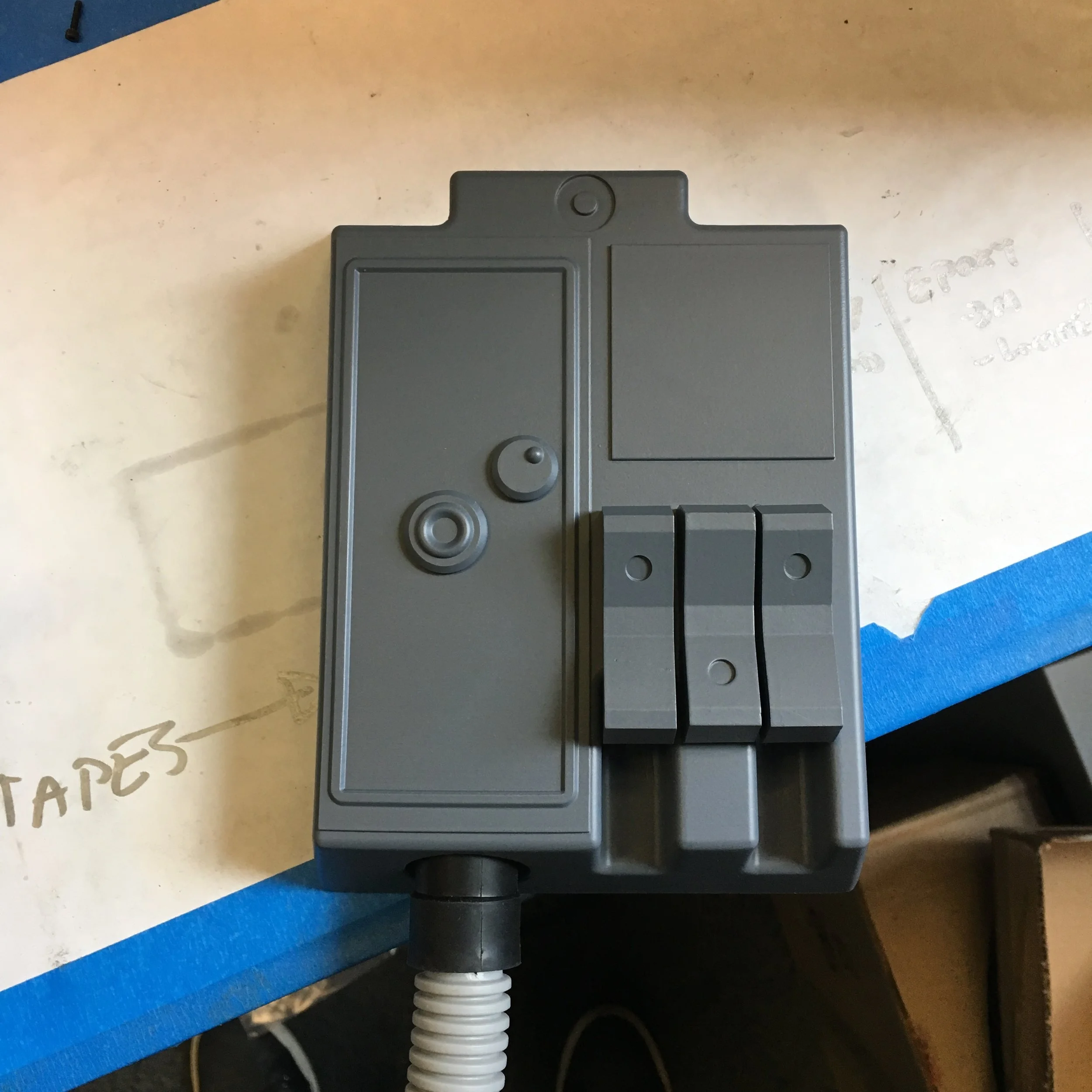

February - March 2018

Orange flight suit + webbing + clasps

SLA 3D printed parts

Dishwasher drain hose

Spray Paint

I was arrested for defying the empire at AB 2018

I also ran a road race in costume as Lamb SkyBAAAlker to win free food.

September 2020 - ongoing development

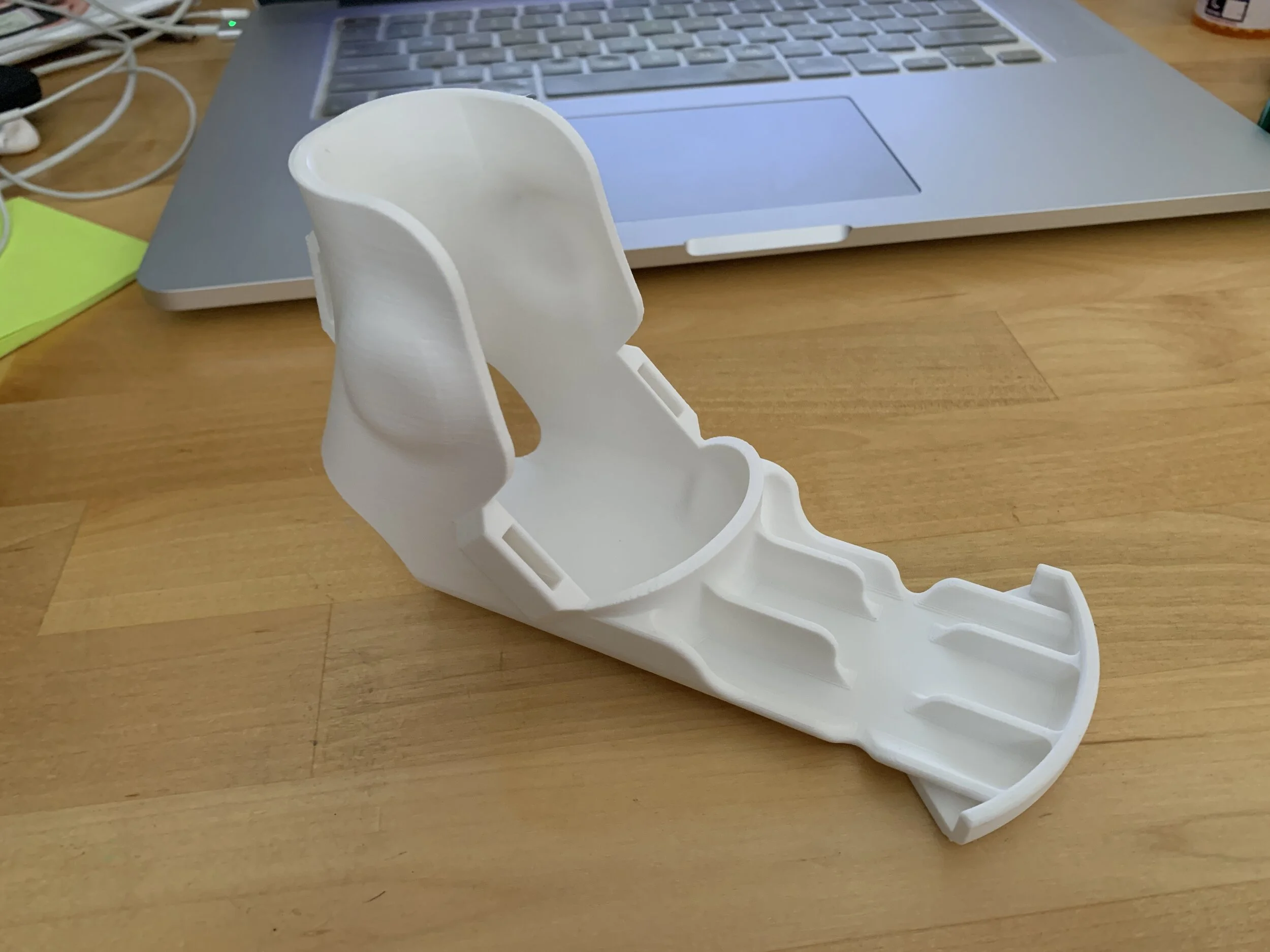

Brianna, 7 years old, is missing the front part of her foot. At her age, prosthetics don’t last long and are prohibitively expensive to make very comfortable. 3D printing a better brace is one of my current passion projects. It is challenging during a pandemic because all interactions are remote (MA <> NY) and getting accurate measurements is challenging. I tend to oversize the structure and rely on the family inserting adhesive foam to create comfortable contours.

Prototyped in PLA, most versions sent are Markforged Onyx with velcro straps.

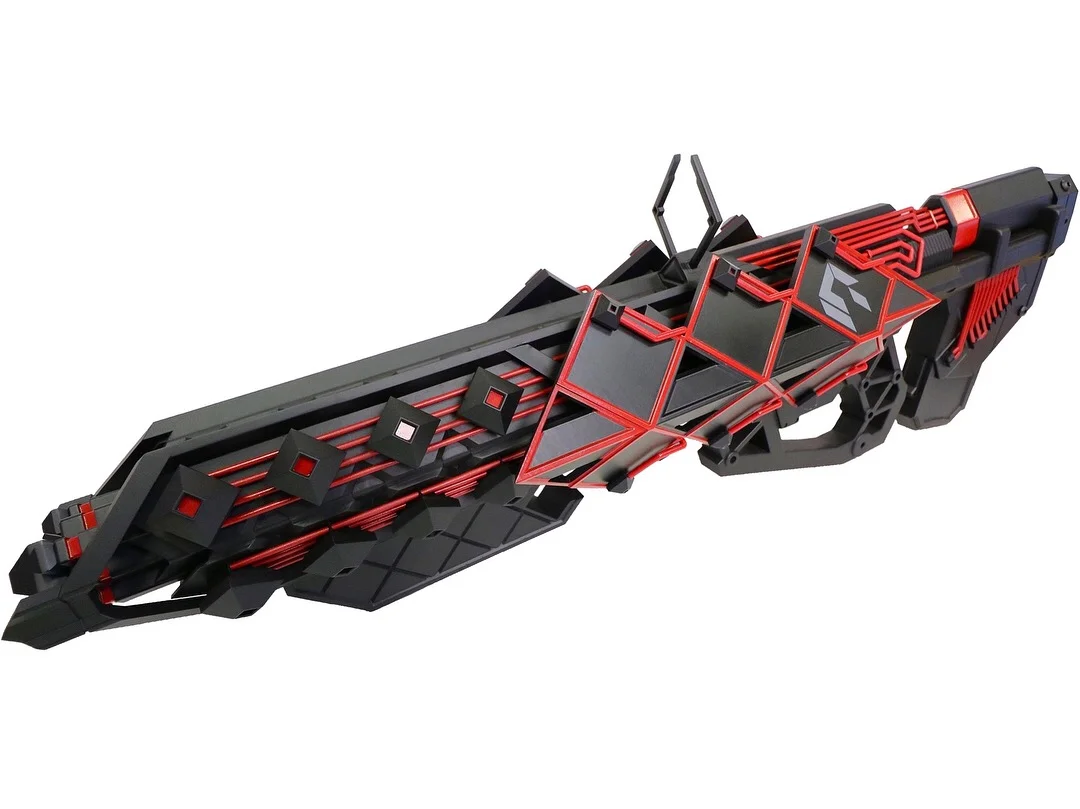

October 2016 - August 2017

Outbreak Prime Exotic from the video game Destiny

SLA 3D printed parts

Steel reinforcing rod

Spray paint

October - November 2019

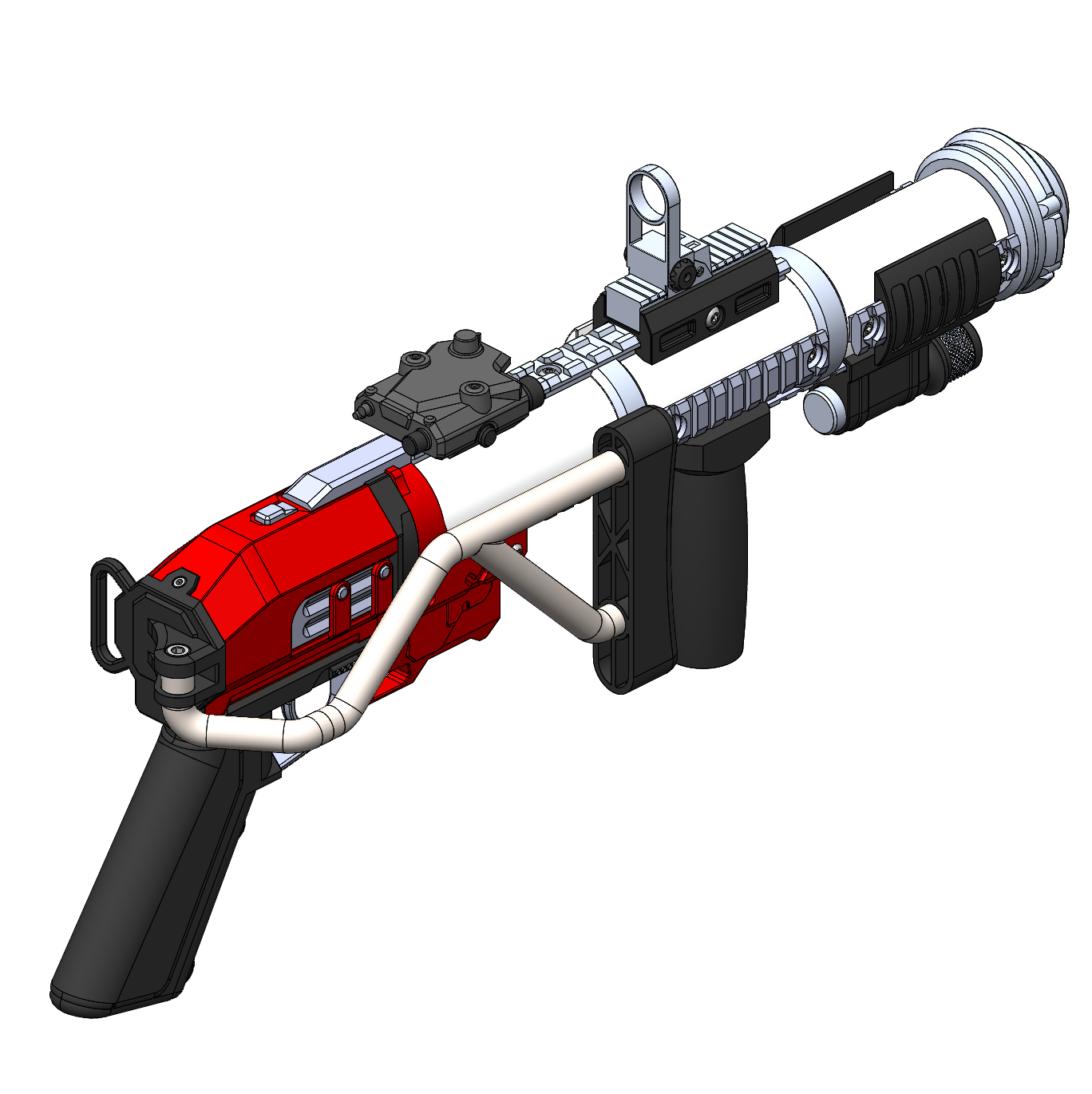

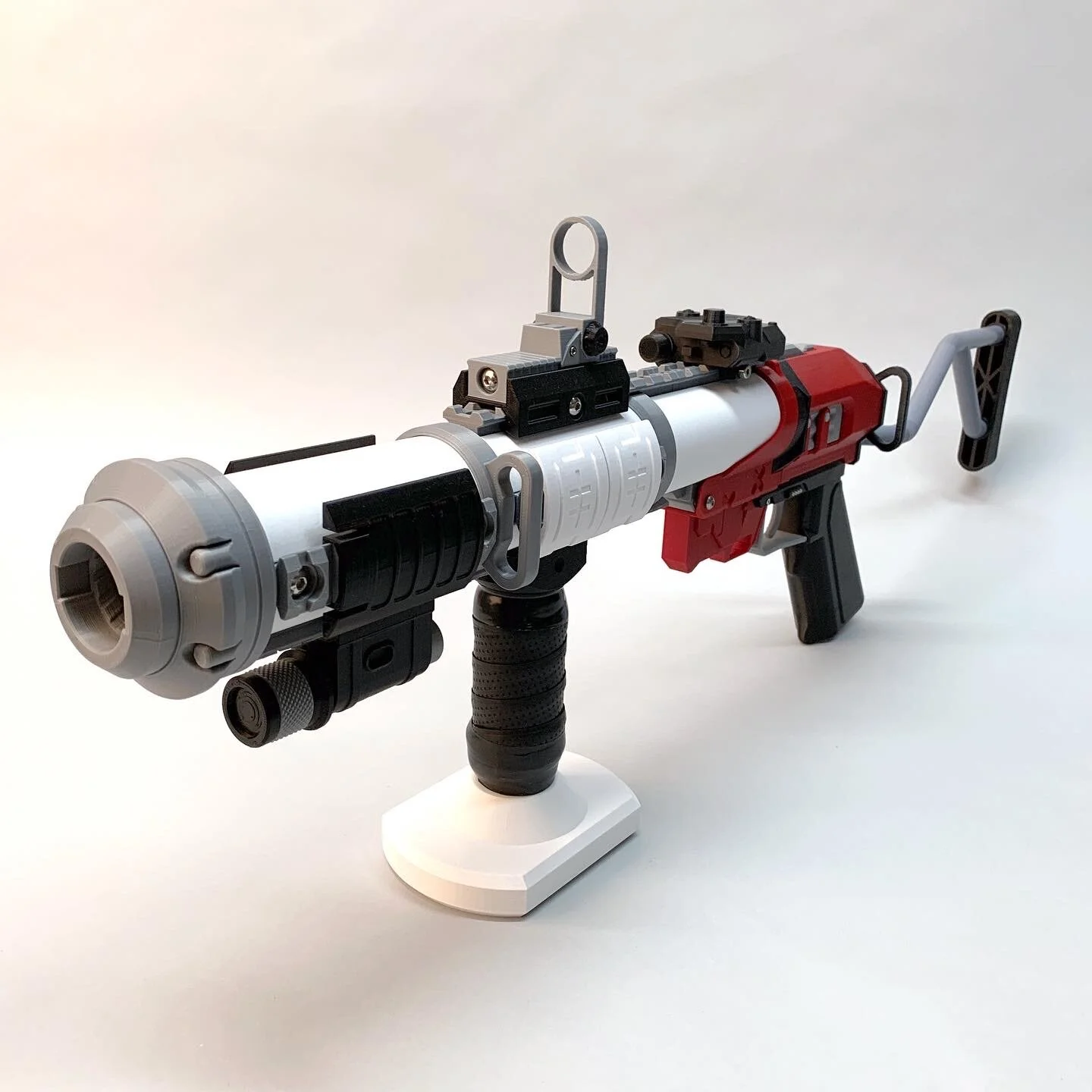

Destiny’s most hated weapon comes to life.

Full scale replica of The Mountaintop. Printed in PLA on Prusa i3 Mk3 in multicolored filament. ‘Functional’ breech and micro-missile. Files for sale in my store.

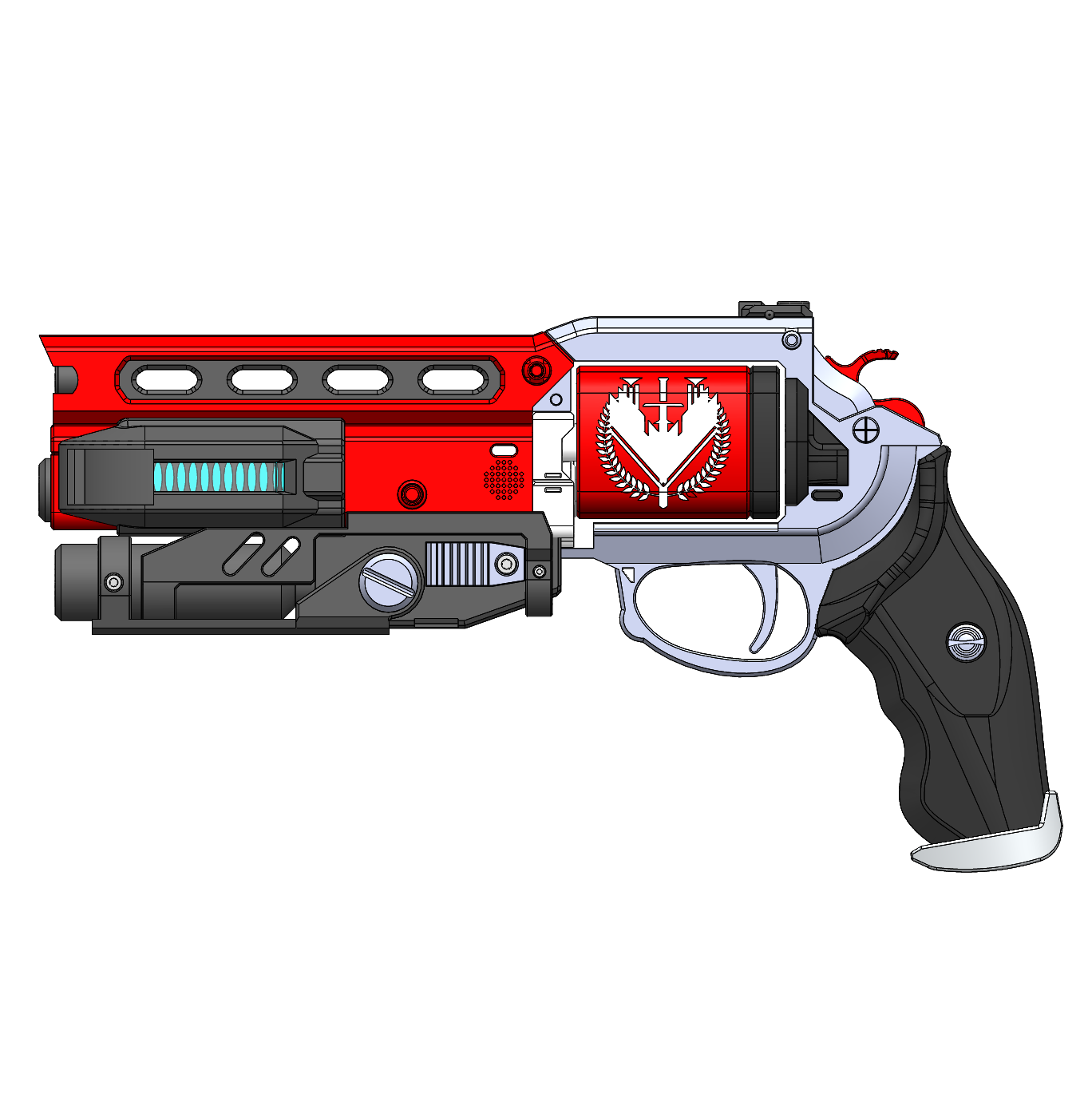

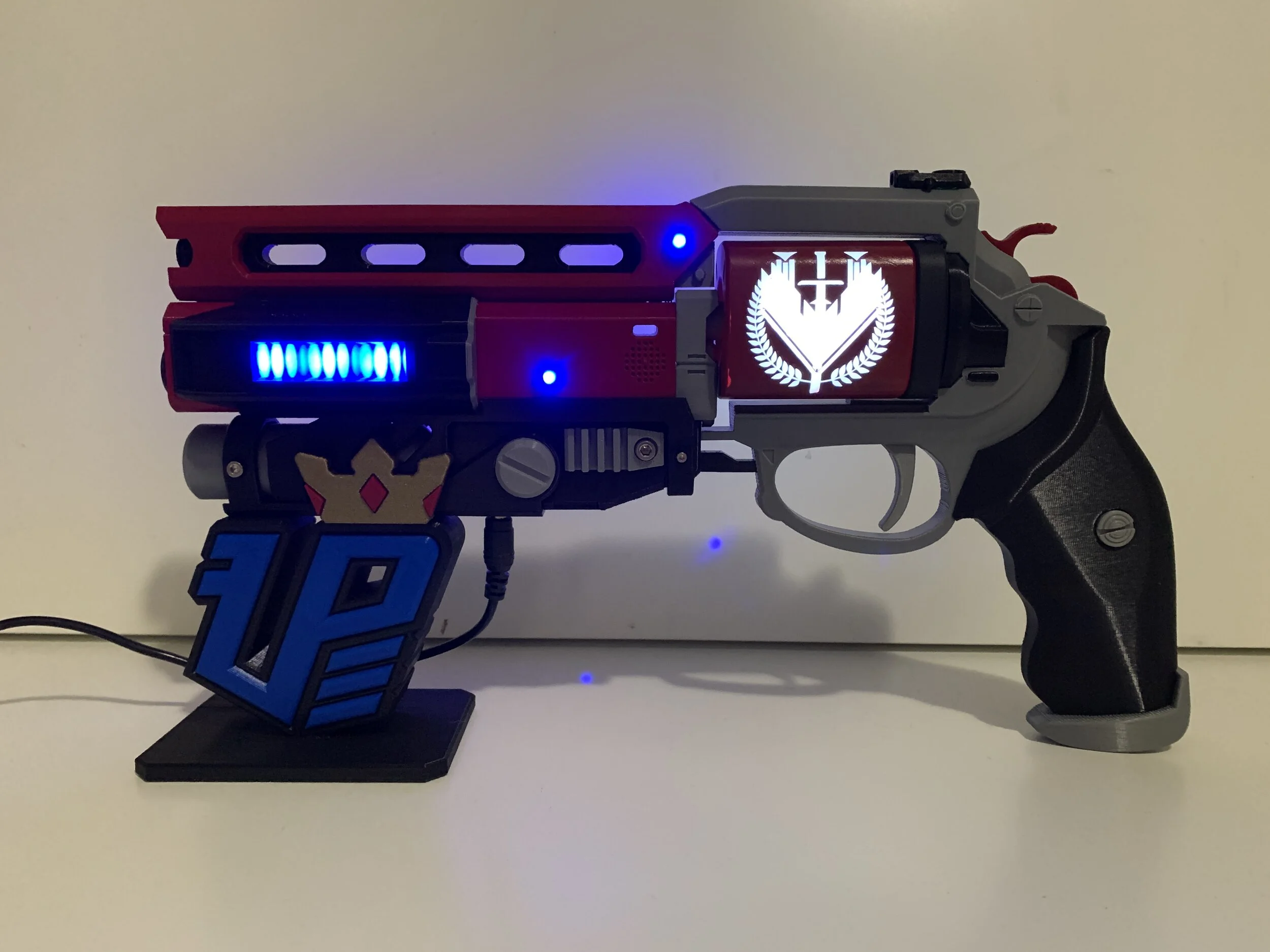

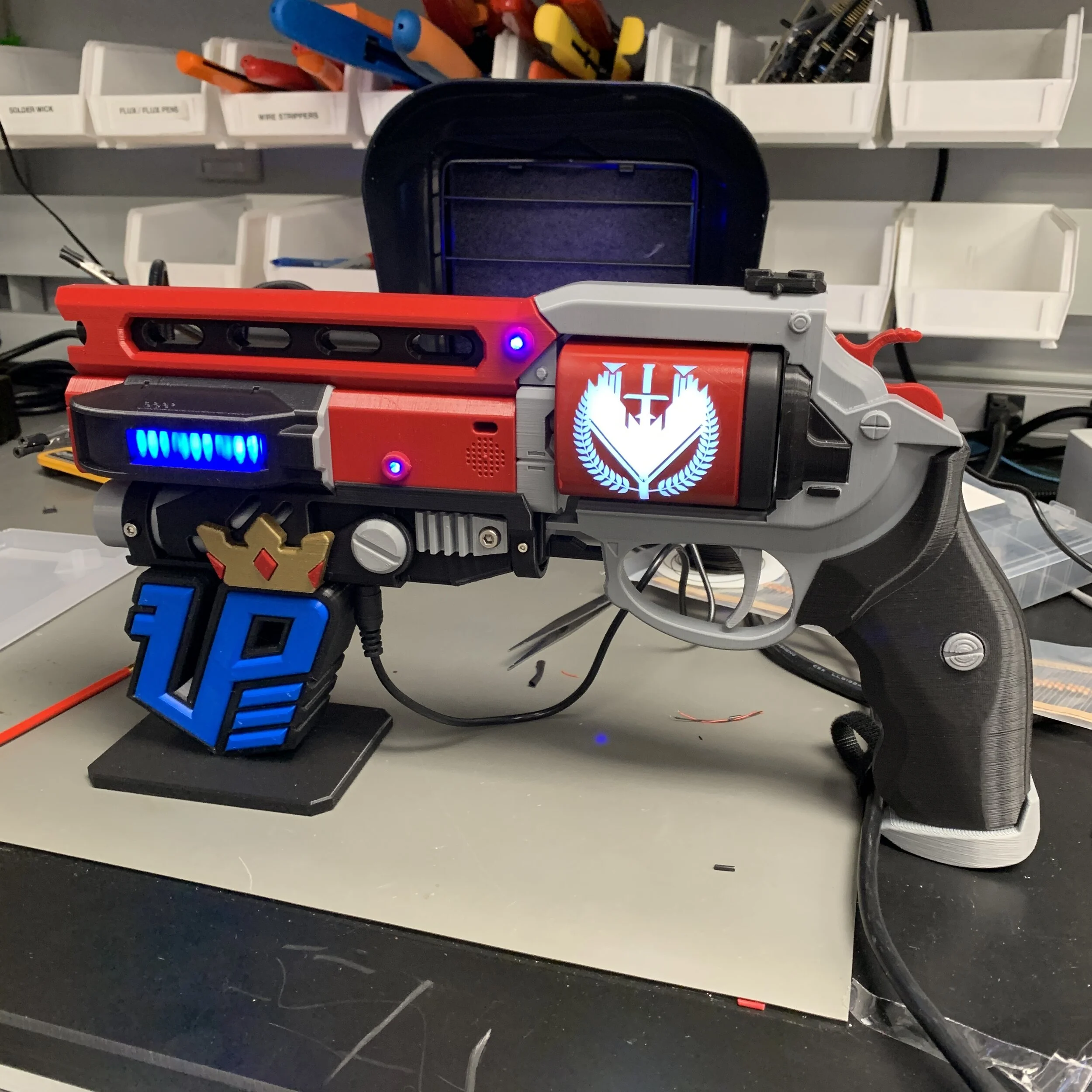

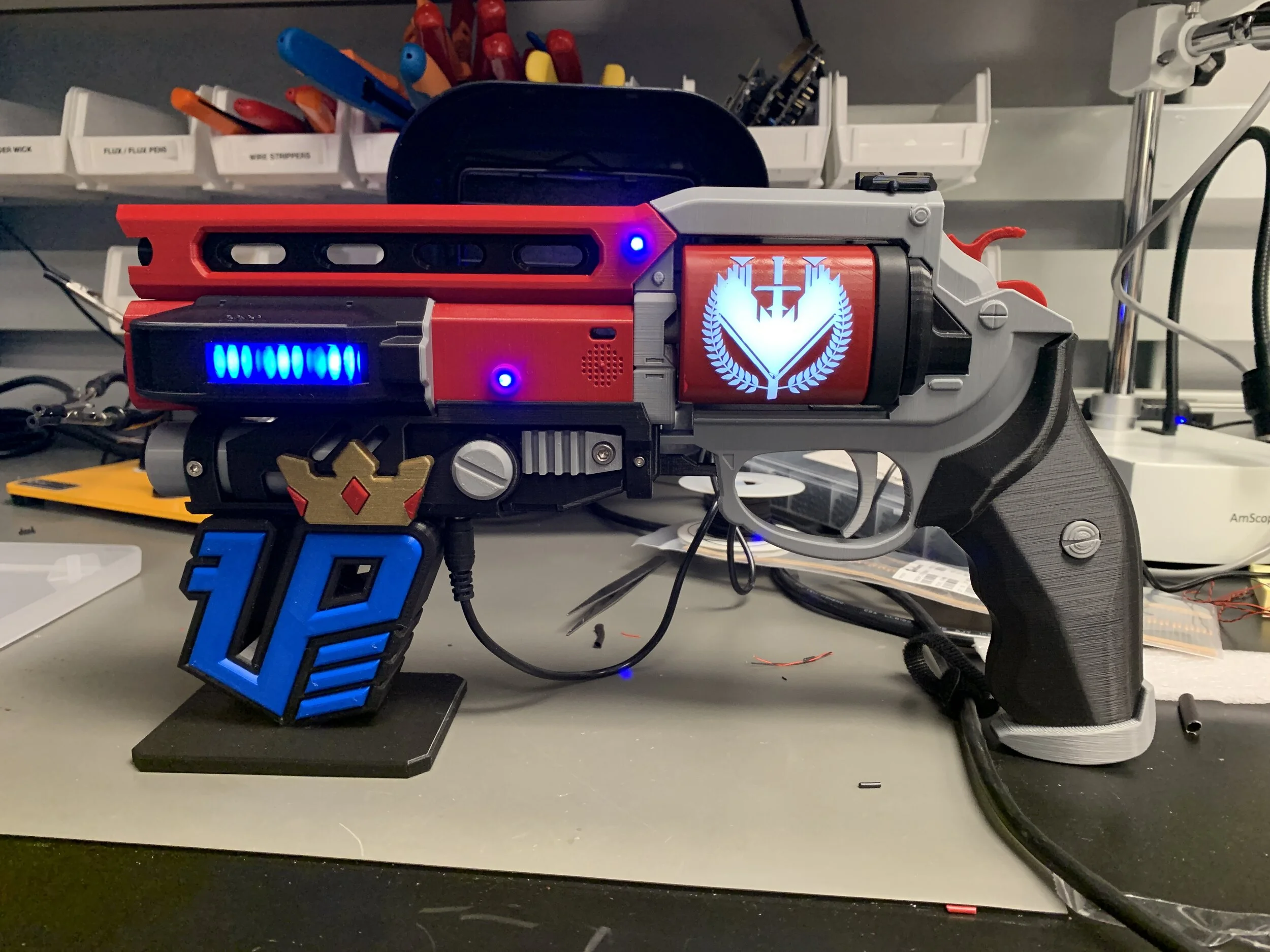

November 2019 - January 2020

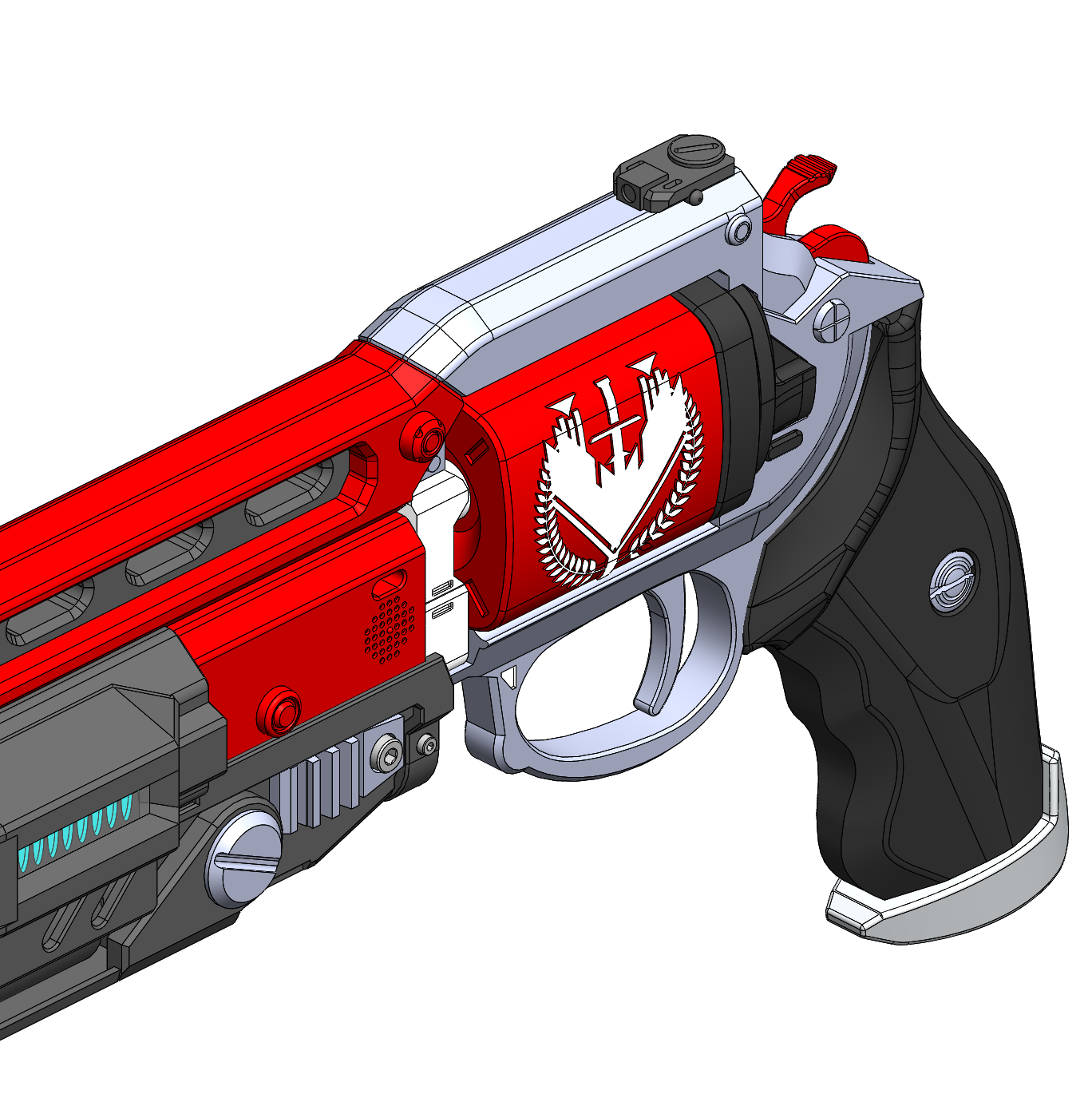

Once Destiny’s most coveted hand cannons.

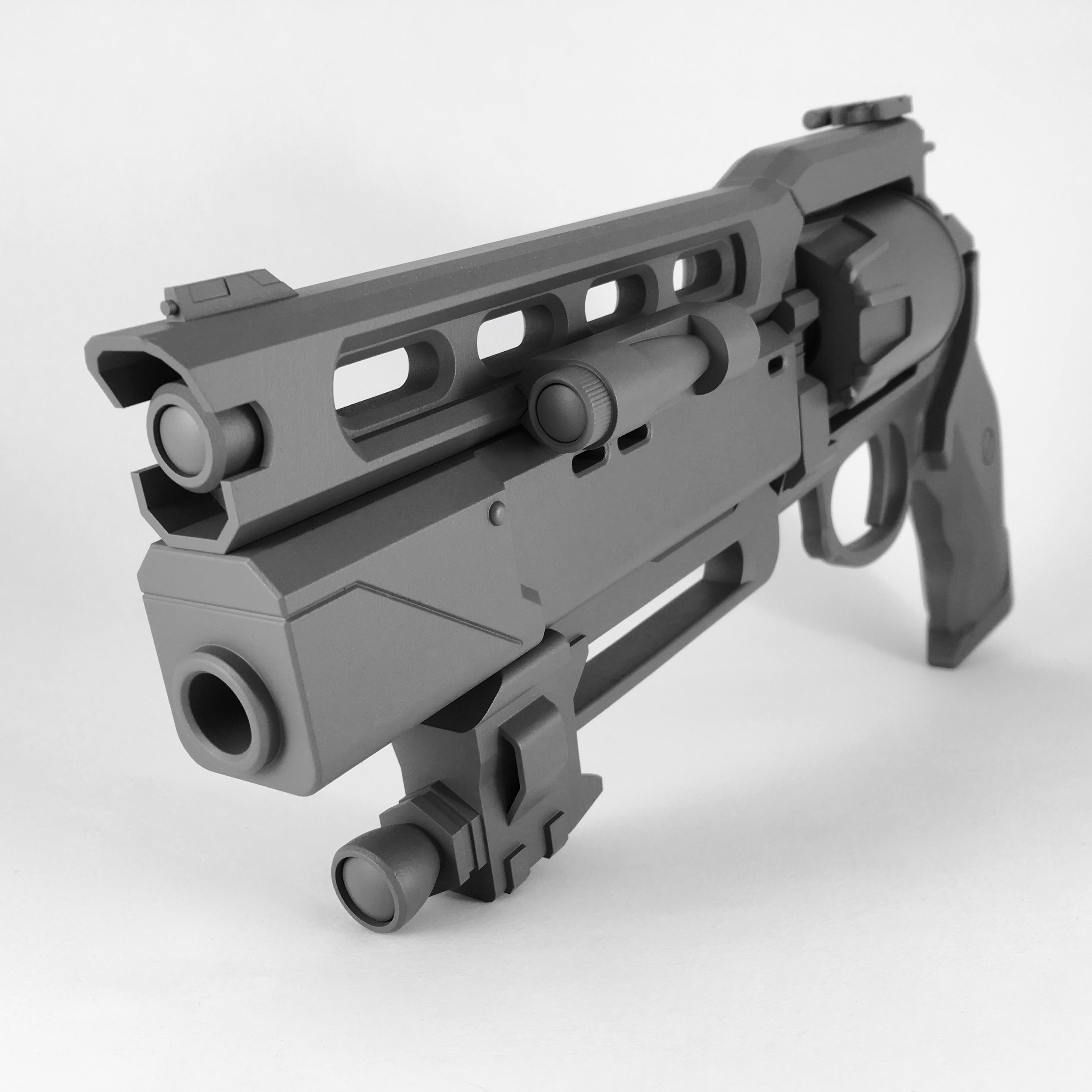

Full scale replica with working trigger and lots of LEDs inside. Printed in PLA on Prusa i3 Mk3 and SLA on Form 2.

August 2011 - April 2015

A hub motor I based upon a stator salvaged from a large photocopier. Coils were wound by hand with 2 x 22 gauge wire. This never made it onto an actual vehicle, but some (very old) math for an ‘electric kick scooter’ with this motor is below:

I want to climb a 10% grade:

F = mg sin(theta)F = 75 kg * 9.8 m/s^2 * 0.1

F = 73 N

I want to climb the hill at 5 m/s.

P = linear force * linear velocity

P = 73 N * 5 m/s

P = 365 W

Torque = Force * radius

3" radius wheel = 0.076m

T = F * r

T = 73 N * 0.076 m

T = 5.55 Nm

33 volt battery

365 W = 33 v * 11.1 A

T = 4NIBLR

(torque = 4 * # of wraps * current * strength of magnetic field * length of stator * radius of stator)

Estimate 1 Tesla.

T = 4NIBLR

N = T/4IBLR

N = 5.55 Nm / 4 * 11.1 A * 1 T * 0.0254 m * 0.034 m

N = 144 wraps per phase

Max current through 4x22 gauge wire = 40 A

N = 40 turns per phase.

If A = 11.1 then N = 144

If A = 40 then N = 40

Torque constant, in Nm/A.

Kt = T/I = 4NBLR

For 11.1 A we get 0.5 Nm/A

For 40 A we get 0.14 Nm/A

1 Nm/A = 1 V/(radian/s)

33 v/(0.5 v/rad/s) = 66 rad/s

33 v/ (0.14 v/rad/s) = 236 rad/s

66 rad/s * 1 rev/2 pi radians * 60 s/1 min * 60 min/1 hr * 2 pi (3 in)/1 rev * 1 ft/12 in * 1 mile/5280 ft = 11.2 mph

Try 72 wraps (experimentally determined maximum)

Kt = 0.248 Nm/A

5.55 Nm / 0.248 Nm/A = 22.4 A

33 v/ 0.248 v/rad/s) = 133 rad/s

130 rad/s * 1 rev/2 pi radians * 60 s/1 min * 60 min/1 hr * 2 pi (3 in)/1 rev * 1 ft/12 in * 1 mile/5280 ft = about 22 mph

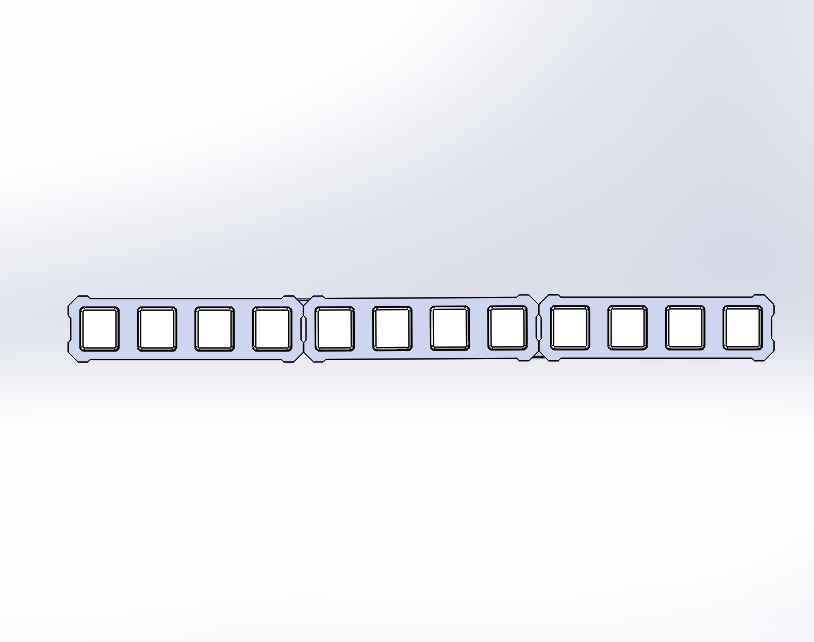

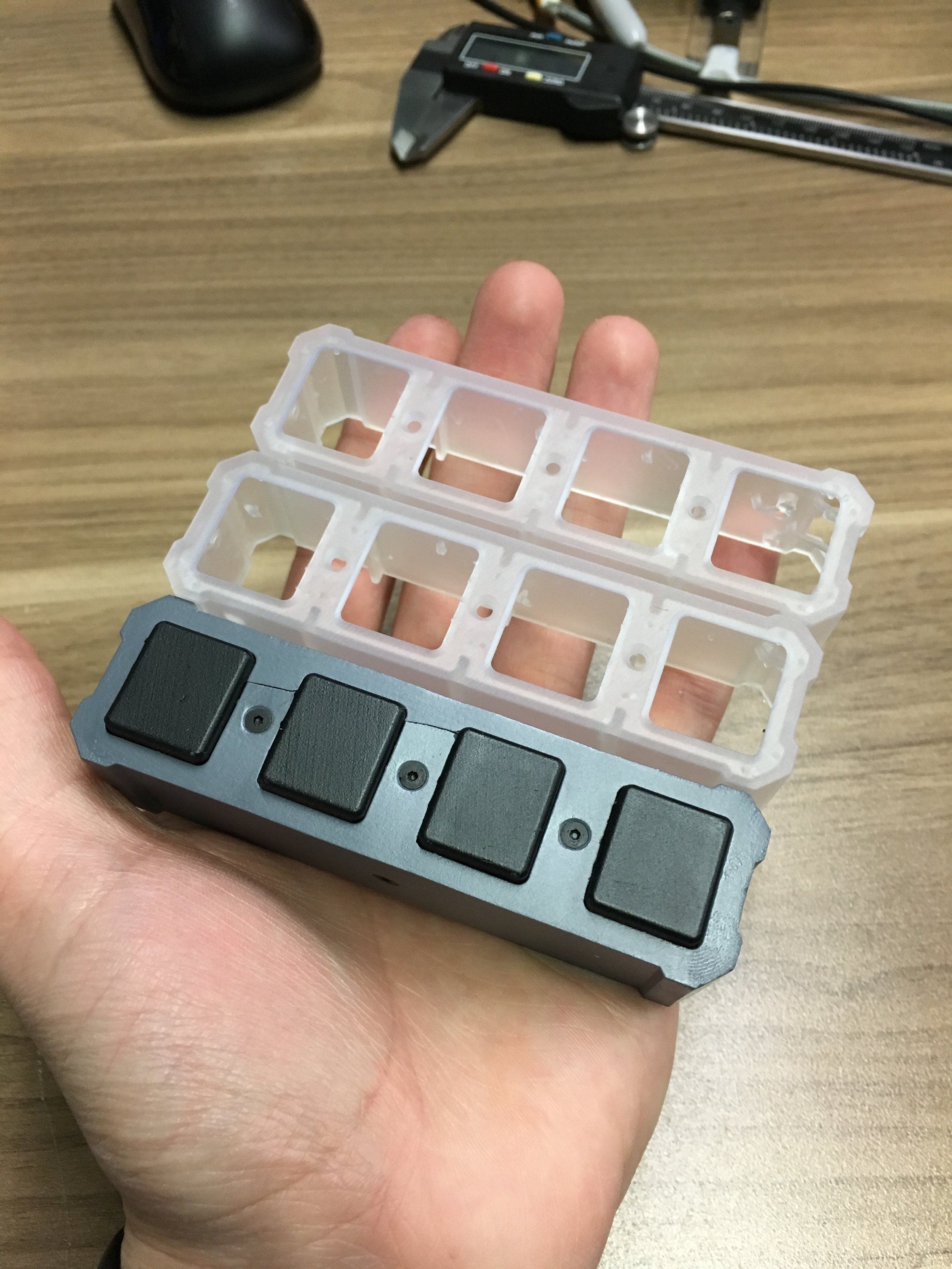

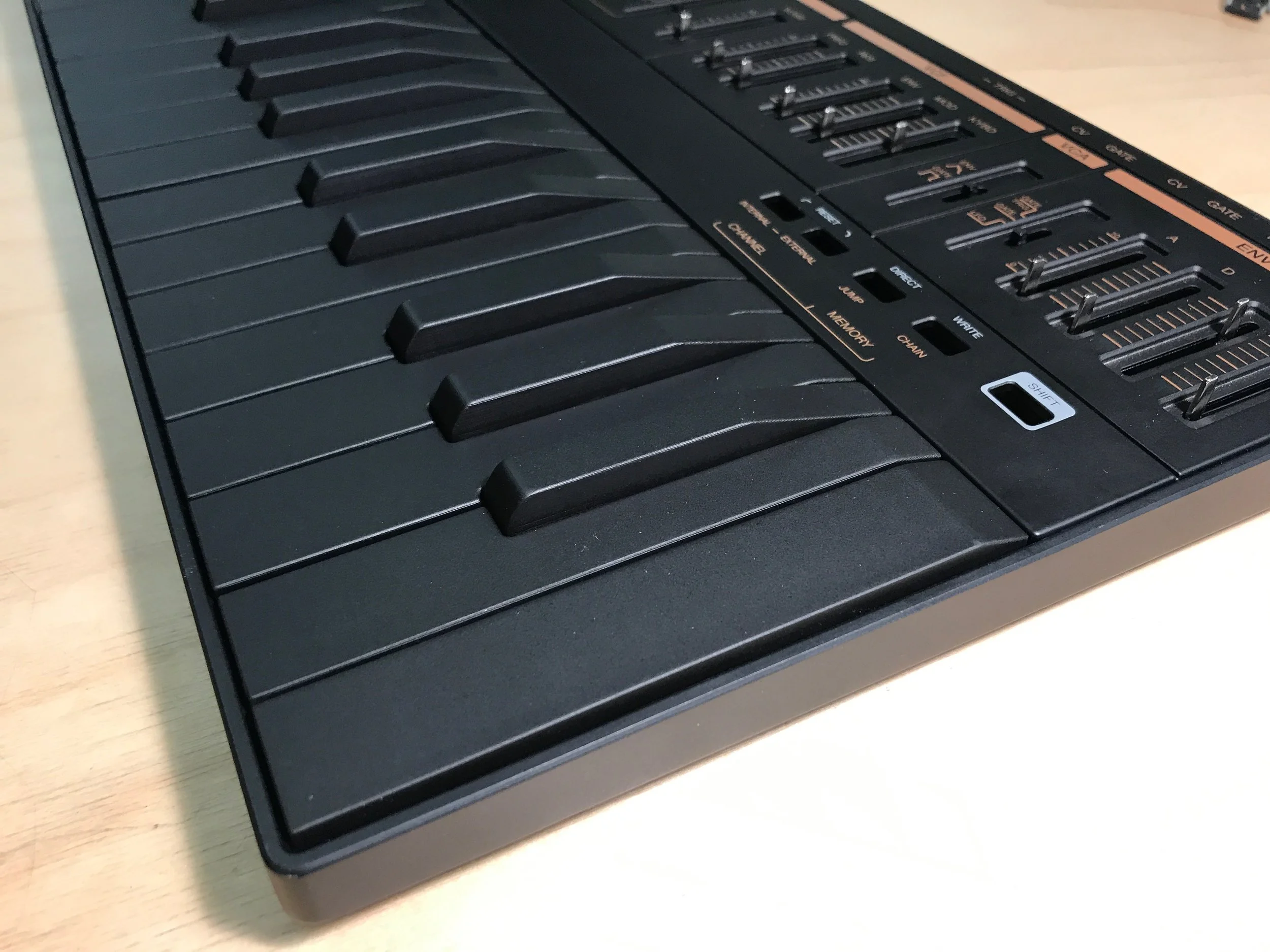

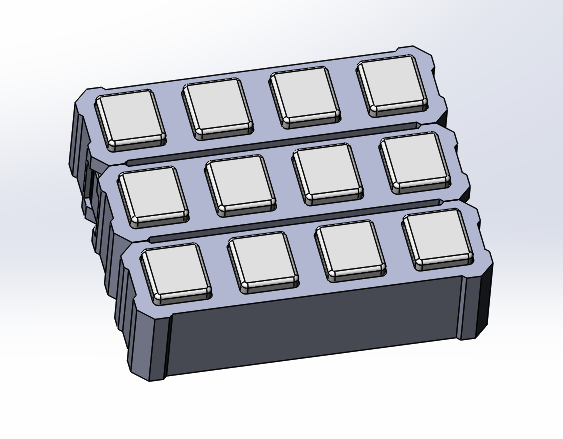

A transforming launchpad concept designed to be portable and versatile. ‘For the traveling live digital musician’

When folded, looks like and behaves like a standard 4x3 launchpad that triggers sounds or other actions in audio software.

When unfolded, acts like a full octave keyboard to allow the user to intuitively create tone sequences without carrying an additional device.

Future ideas include hall-effect form sensing, octave change switches and launchpad configuration manager indicator lights.

January 2018

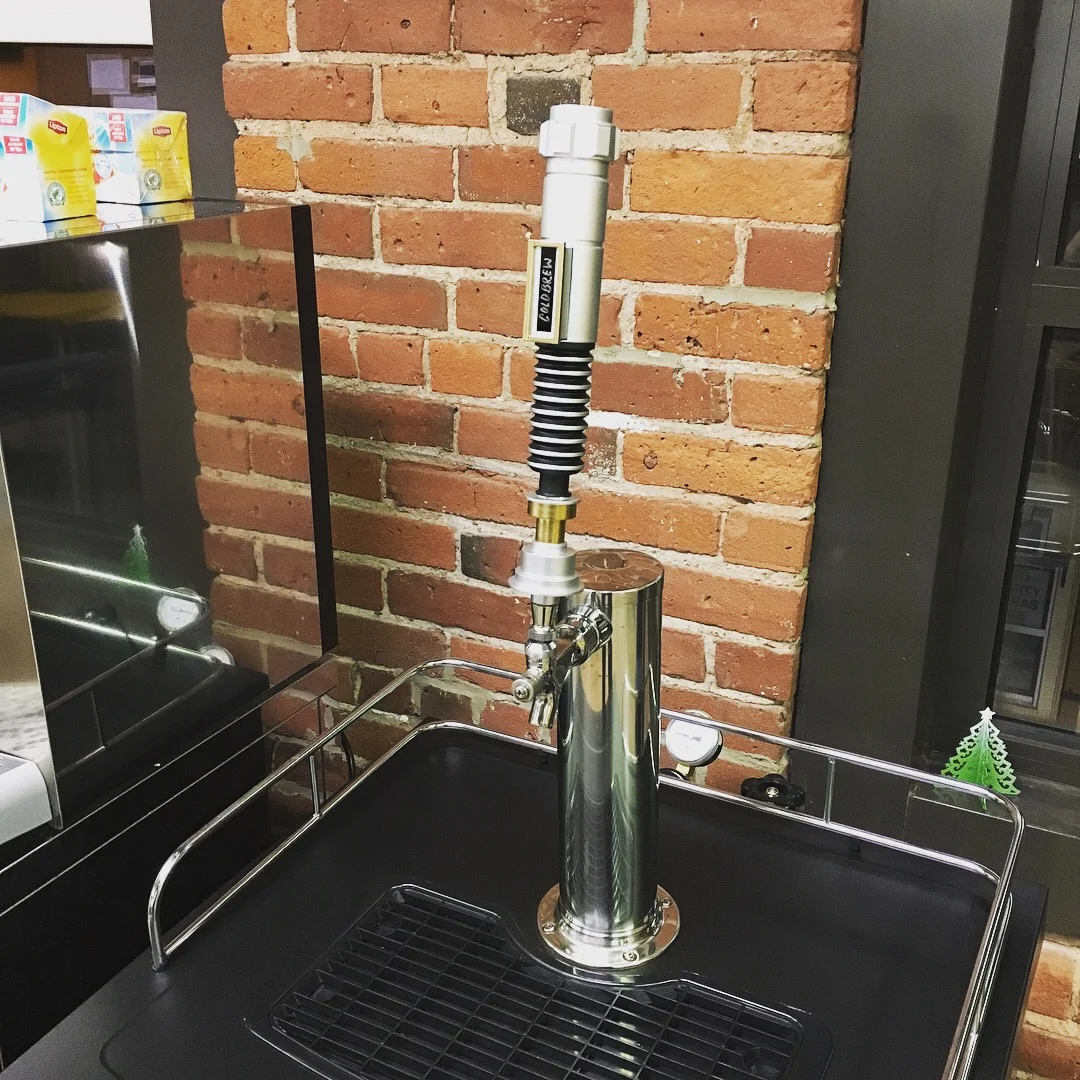

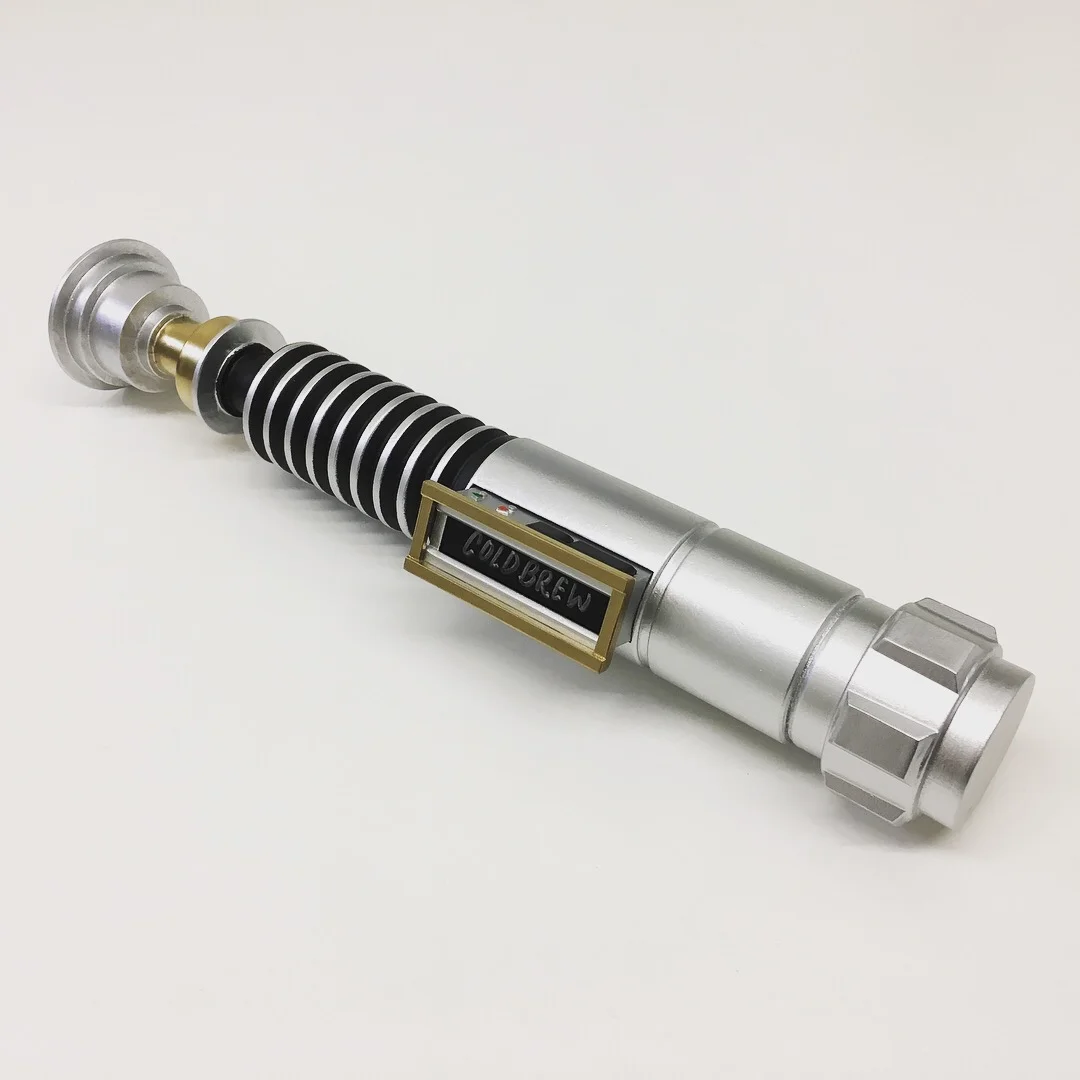

Luke’s ROTJ Lightsaber

Solidworks

SLA 3D printed parts

Steel reinforcing rod

3/8-16 standard tap handle thread

Spray paint

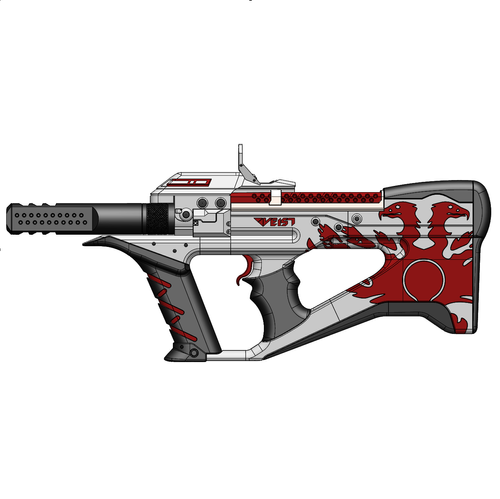

May - June 2019

The Recluse // Destiny 2

Solidworks

Designed for SLA printing

May 2018 - Ongoing

A simple manual printing press with rotating ink disk made for a friend’s business. Uses standard inks and accepts 3D printed type

August - October 2018

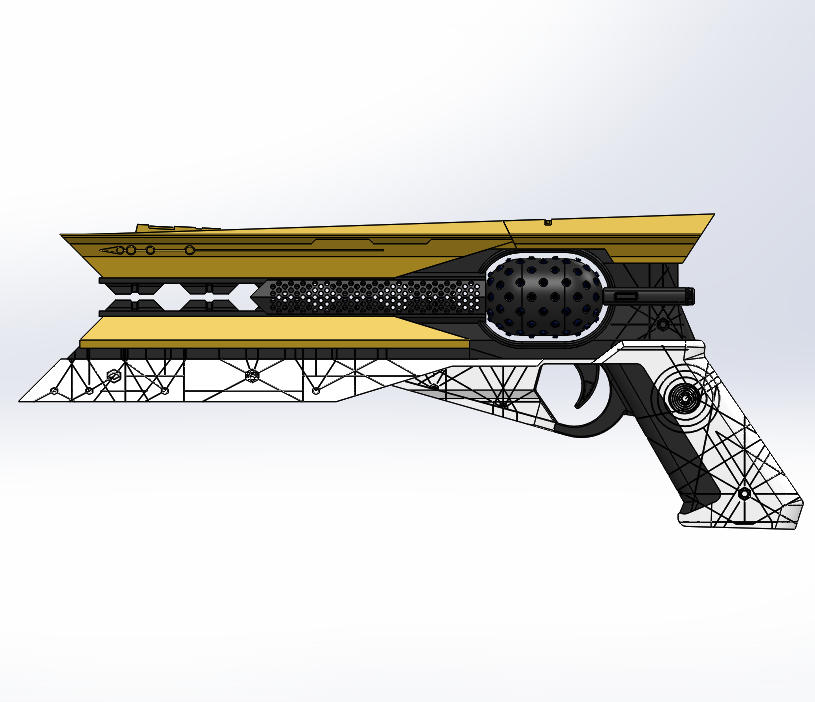

Sunshot - Destiny II

Solidworks

SLA 3D printed parts

Spray paint

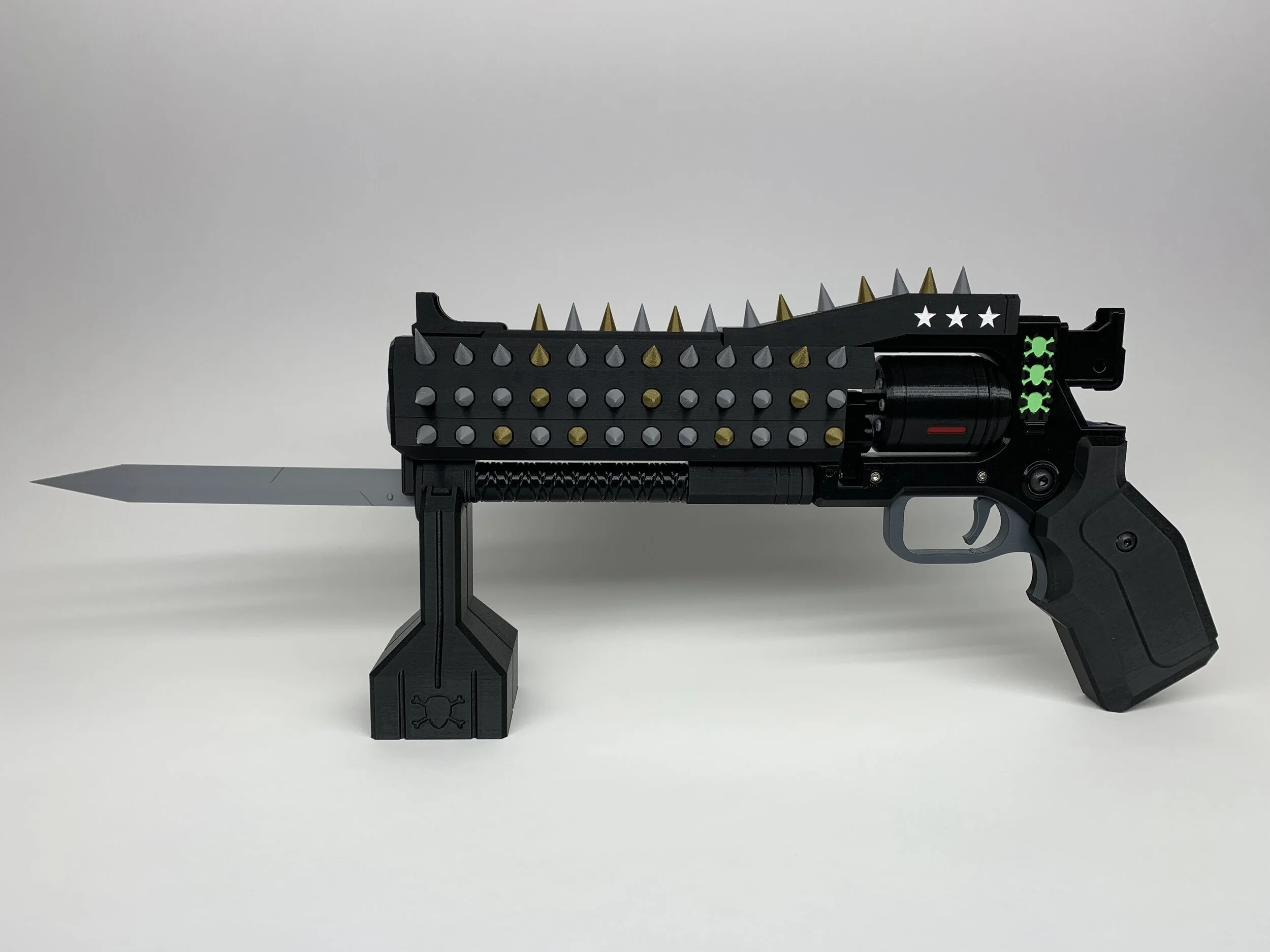

Full scale replica of Crimson // Black Death ornament from Destiny 2.

All printed in PLA on a Prusa i3 Mk3. Working trigger, swing-out removable power pack.

Solidworks

December 2017

Sagira from Destiny II

SLA 3D printed parts

Spray Paint

Very popular on Instagram

May - June 2018

Skyline Flipside Shell from Destiny 2

Solidworks

SLA 3D printed parts

Spray paint

October - November 2017

Commissioned piece for Titanfall II cosplay

SLA 3D printed parts

Adafruit Trinket + Neopixel Jewel

Designed to have easily removable display assembly to quickly swap out or reprogram lighting sequence

July 2016

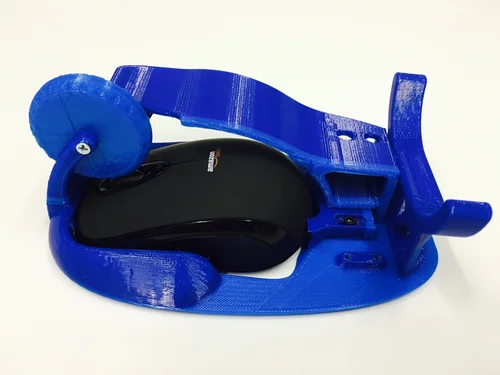

Designed for a competition where the goal was to create a device to assist a person who has limited use of his/her hands.

The assembly can be printed on (probably) any standard sized machine and uses the AmazonBasics wireless mouse and some common hardware. It makes the buttons and scroll wheel larger and tilts them towards the user.

January - April 2019

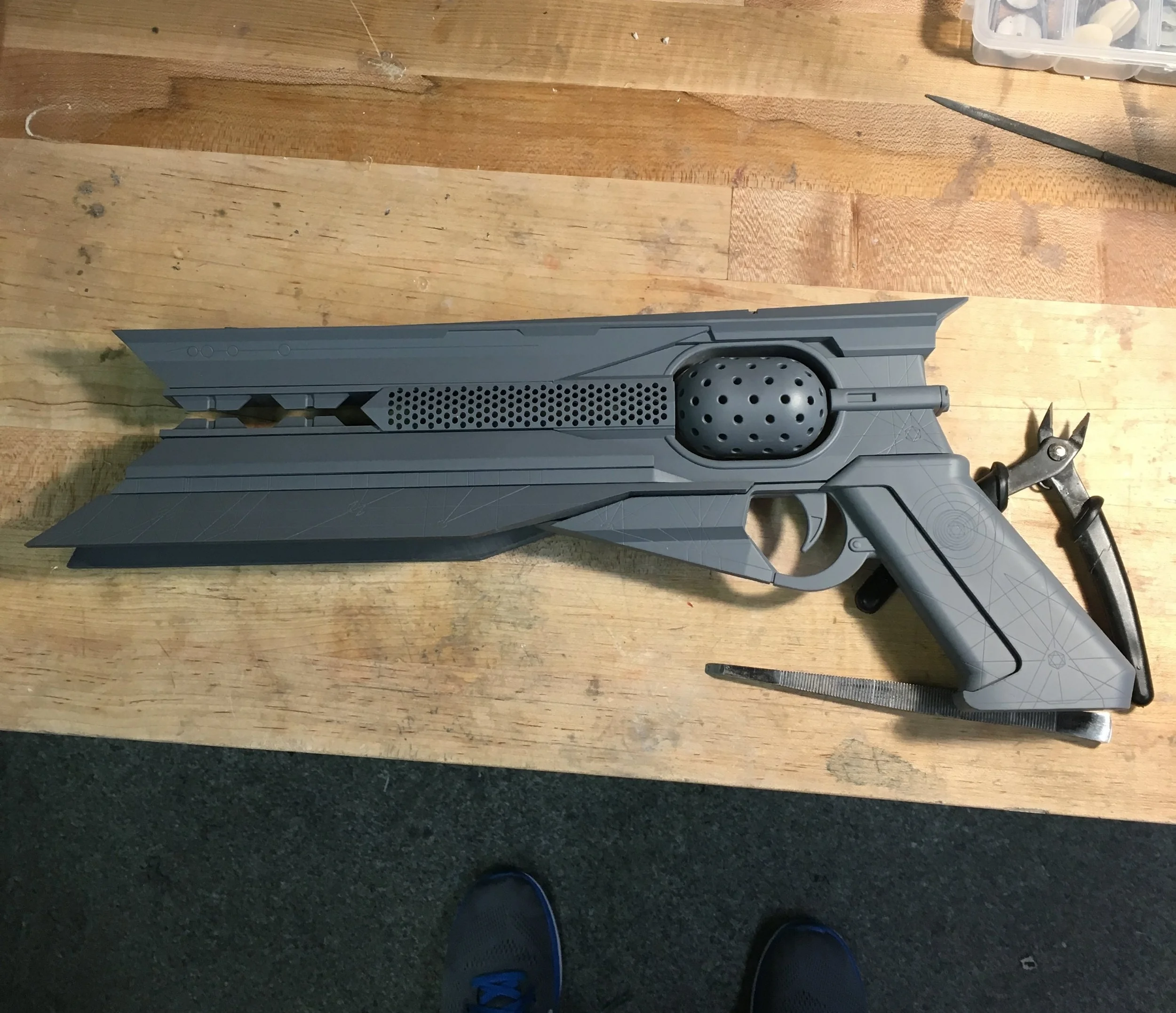

Trust Hand Cannon // Destiny 2

Solidworks

SLA 3D printing, spray paint, LEDs

October 2016 and November 2017

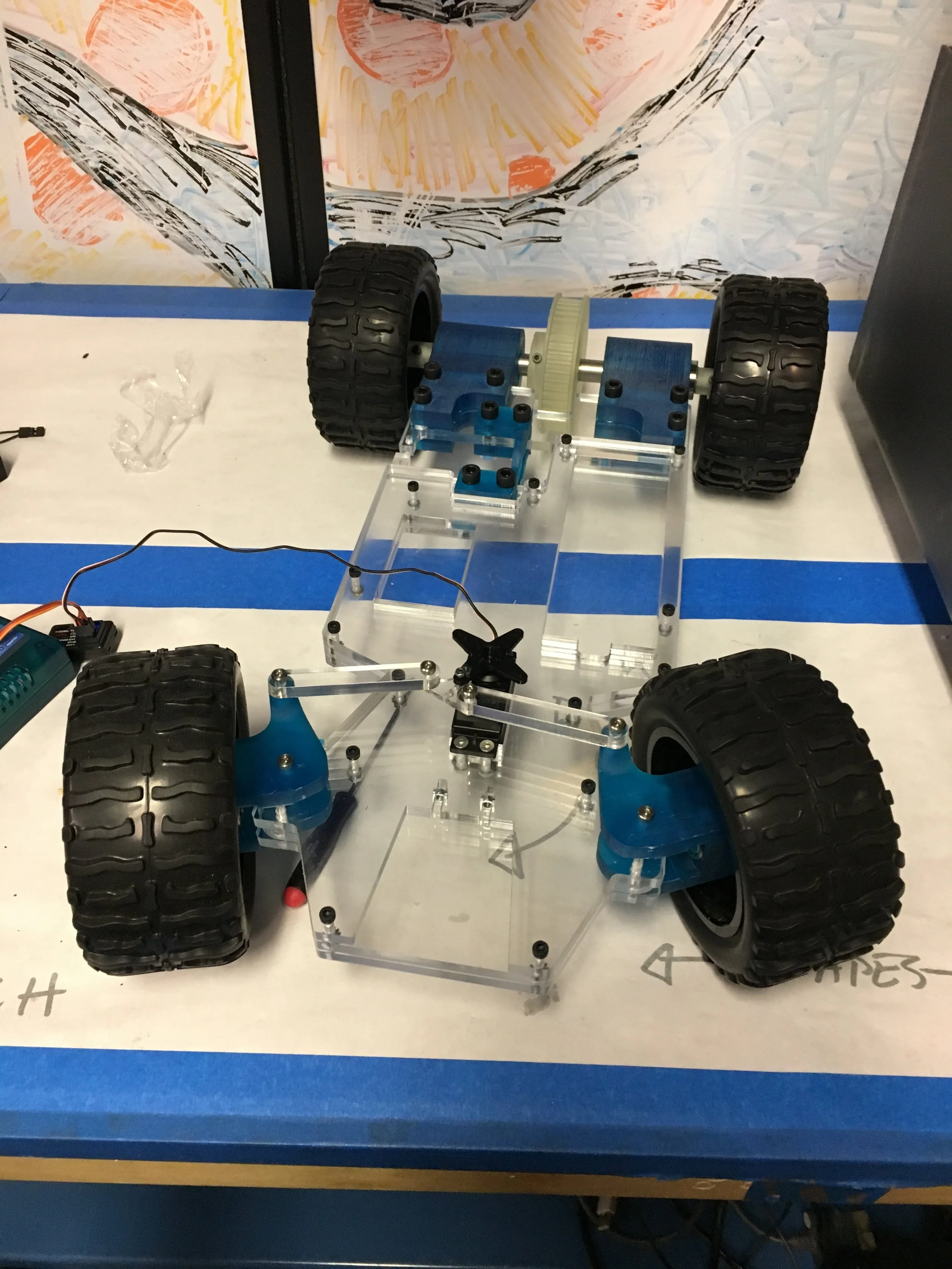

Two RC truck/truggy designs, only one of which came to actually exist.

The design that did not get made was four wheel drive with four wheel suspension and was kind of ridiculous but fun to design in anticipation of the Formlabs Tough V3 Launch.

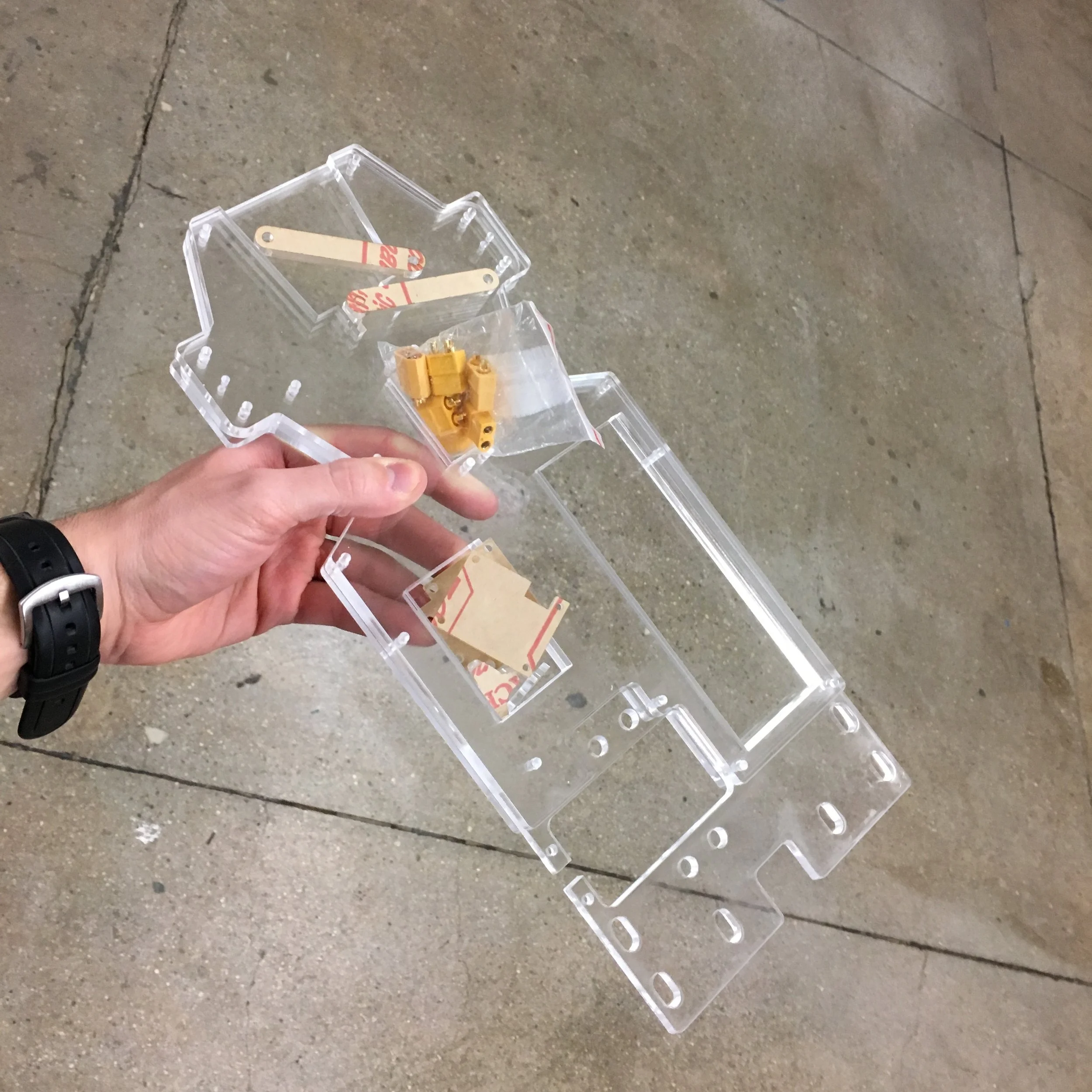

The design that was eventually made was a bit less ridiculous and used an acrylic frame and was quick to assemble. Unfortunately my motor controller’s braking was not functioning properly so it killed itself when it crashed into a wall.

Acrylic frame, SLA 3D printed parts

OTS wheels and power system

December 2017

A rotocasting setup designed to be able to swap part lengths for different sizes of cast and to pack flat to save space when not in use.

Aluminum extrusion, 3D printed parts, stock pulleys and belts

A handful of quadrotors I designed in college and one designed specifically for SLS.

The first is FDM printed from PLA and had a fun spring-loaded leg system and easily swappable parts (which was nice because I crashed a lot.)

The next quad was a departure from the traditionally messy wiring of homemade quads and completely contained all of the wires and electronics. The arms are hollow carbon fiber tubes that the motor wires are routed through.

The final quad was designed to be printed in one piece on the Formlabs FUSE SLS machine and unfold once printed. It flew briefly outside FLHQ in Somerville.

December 2017

Star Map Shell from Destiny II

Solidworks

SLA 3D printed parts

Spray Paint

October 2017

Frontier Shell from Destiny 1

Solidworks

SLA 3D printed parts

Spray paint

LED

October 2017

Commission for Titanfall II Cosplay

Lots of parts. It is very big.

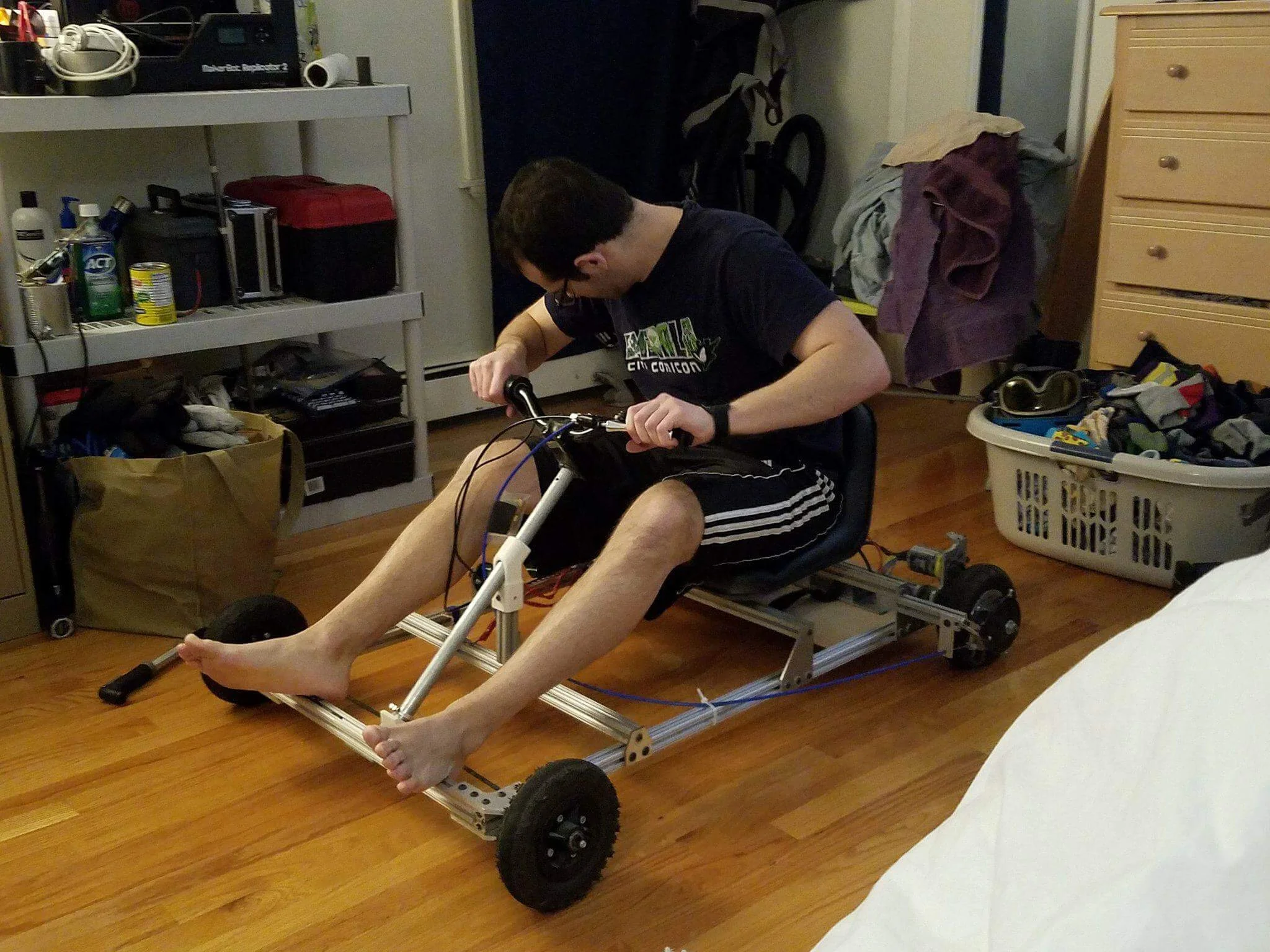

March 2013 - Sort of ongoing

Designed my sophomore year of college and periodically upgraded, I learned a lot from this one. Mostly on how to not do things. It hardly gets used anymore but has a great power system that I would love to put into something else someday.

November 2015

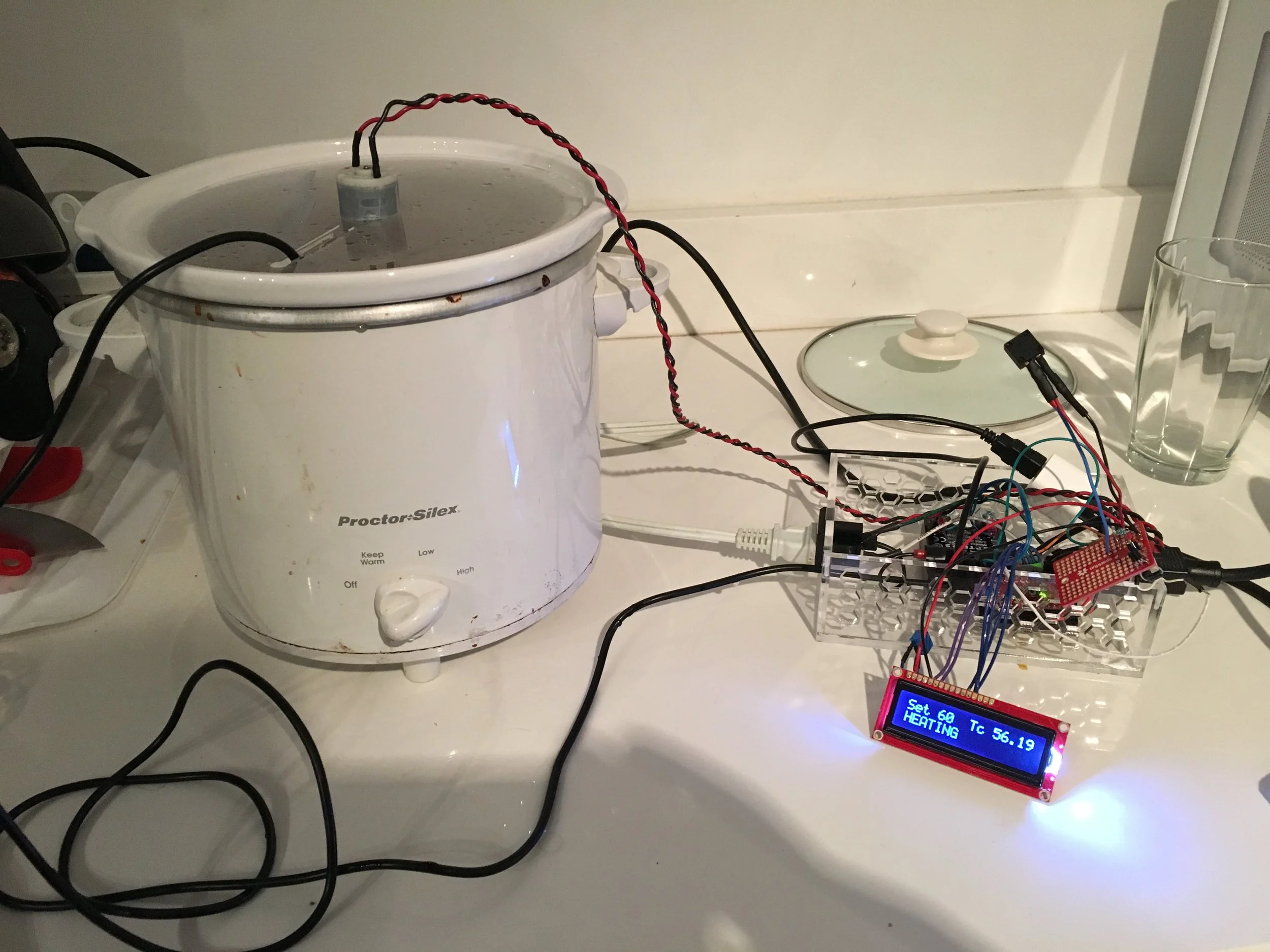

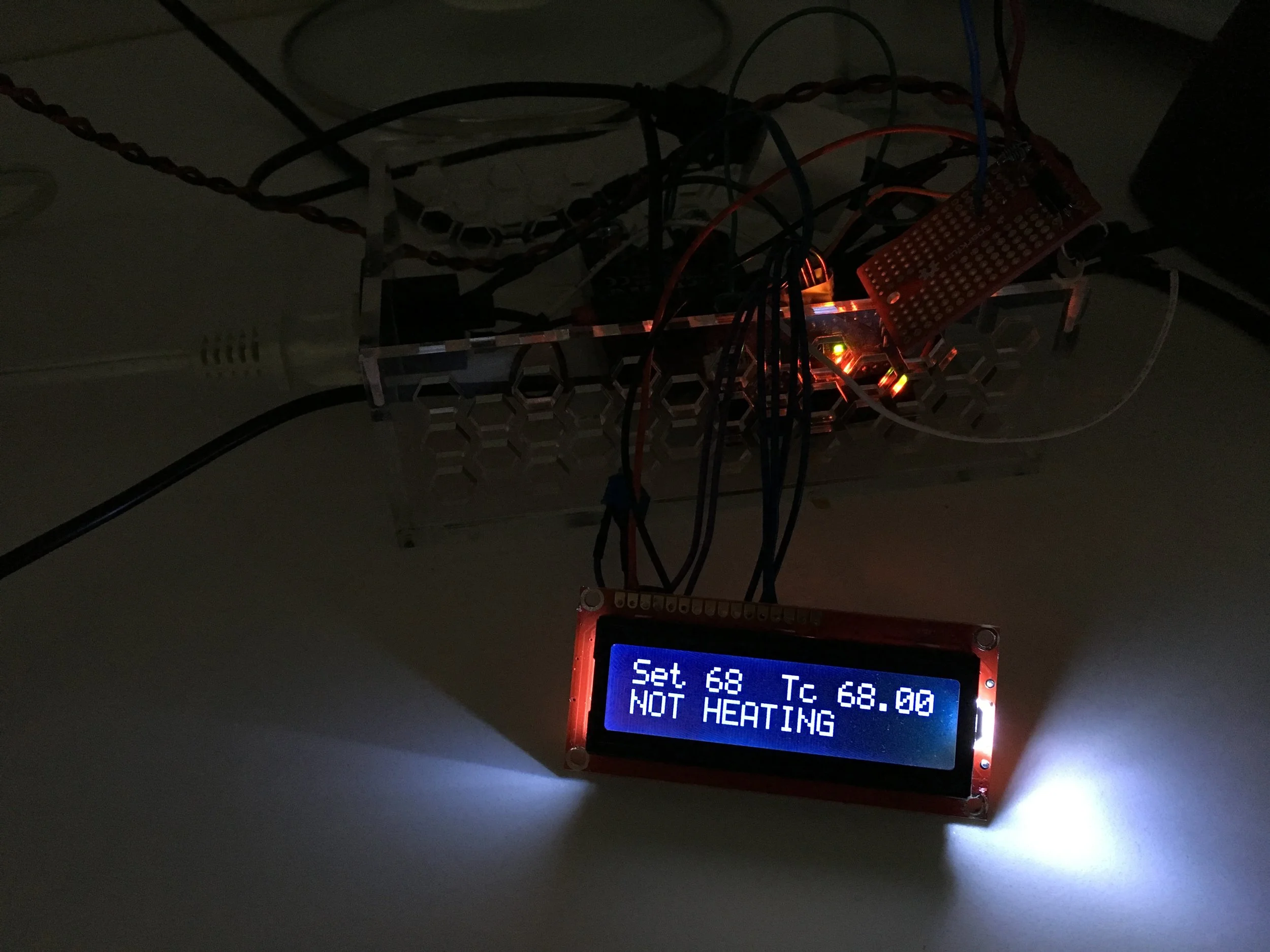

In a classic example of ‘I could buy this, or I could just build it’ I threw together a very simple sous vide controller that connects to any ‘dumb’ slow cooker. It had simple bang-bang control and stayed within about ±0.5C. A control PCB was designed but never made. Eventually I got tired of having what looked like a bomb on my kitchen counter and bought an Anova, which is much more kitchen-friendly.

June - August 2015

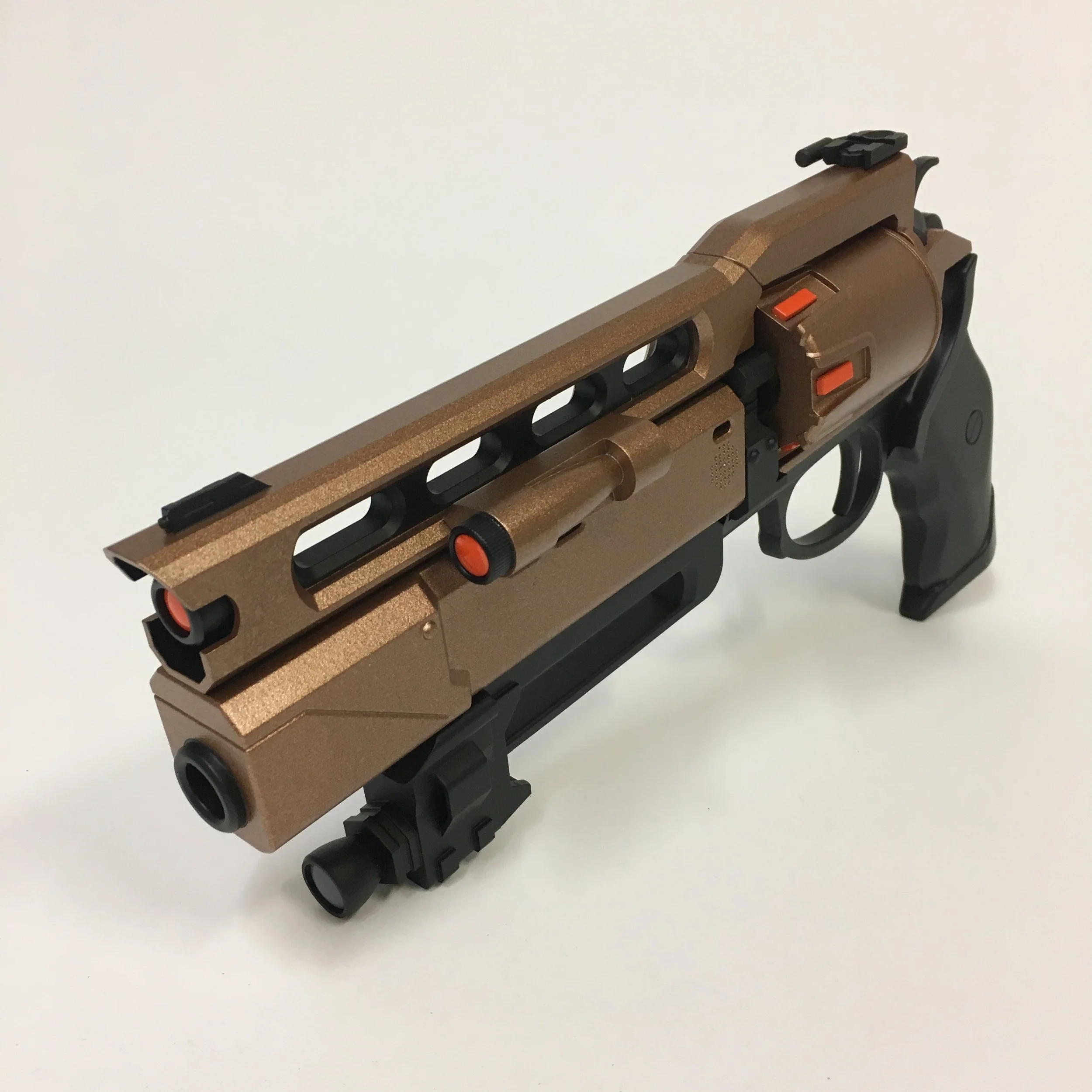

Fatebringer from the video game Destiny

My first video game prop!

SLA 3D printed parts

Spray paint

Many people use my images on Etsy to sell their versions of this prop :(

July - August 2017

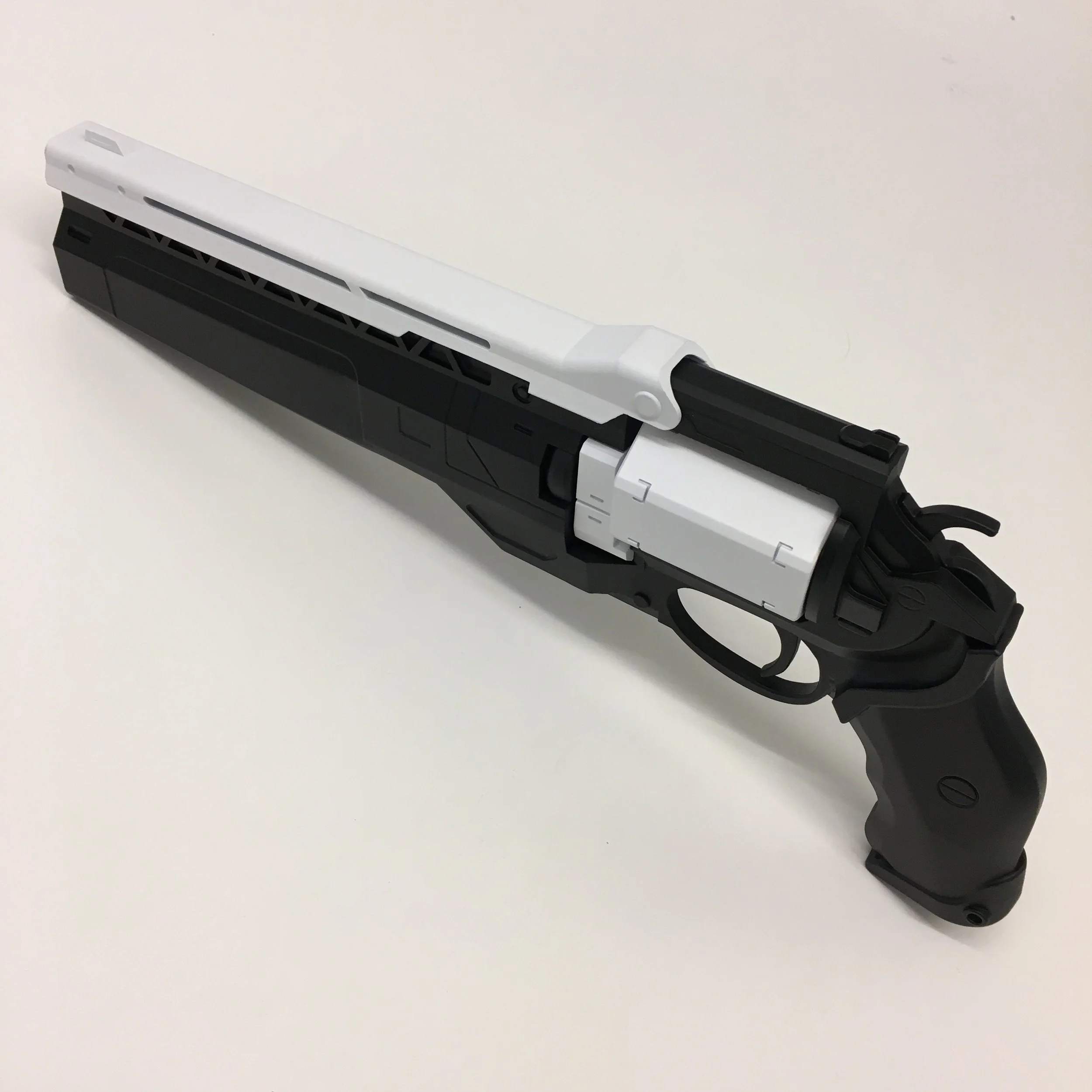

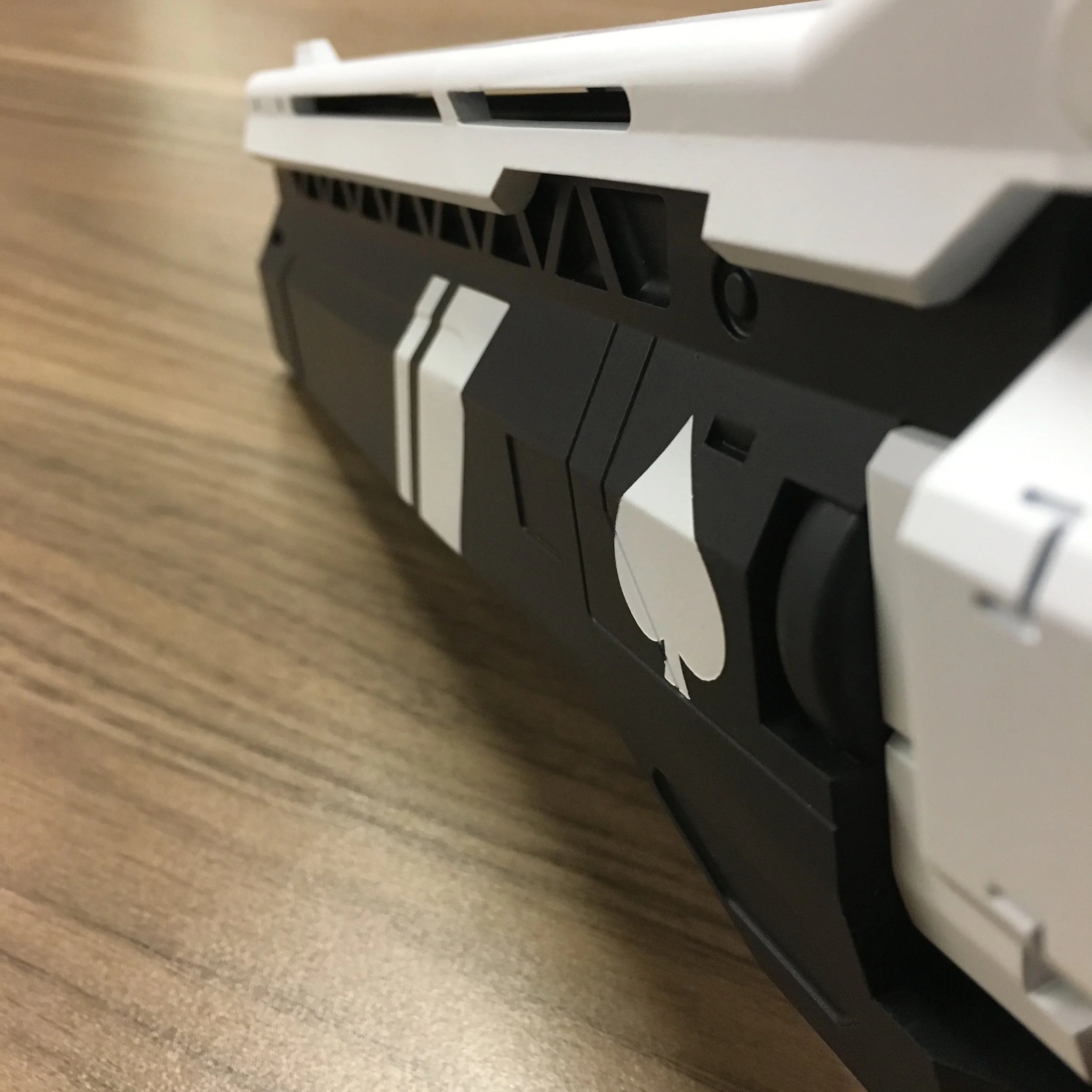

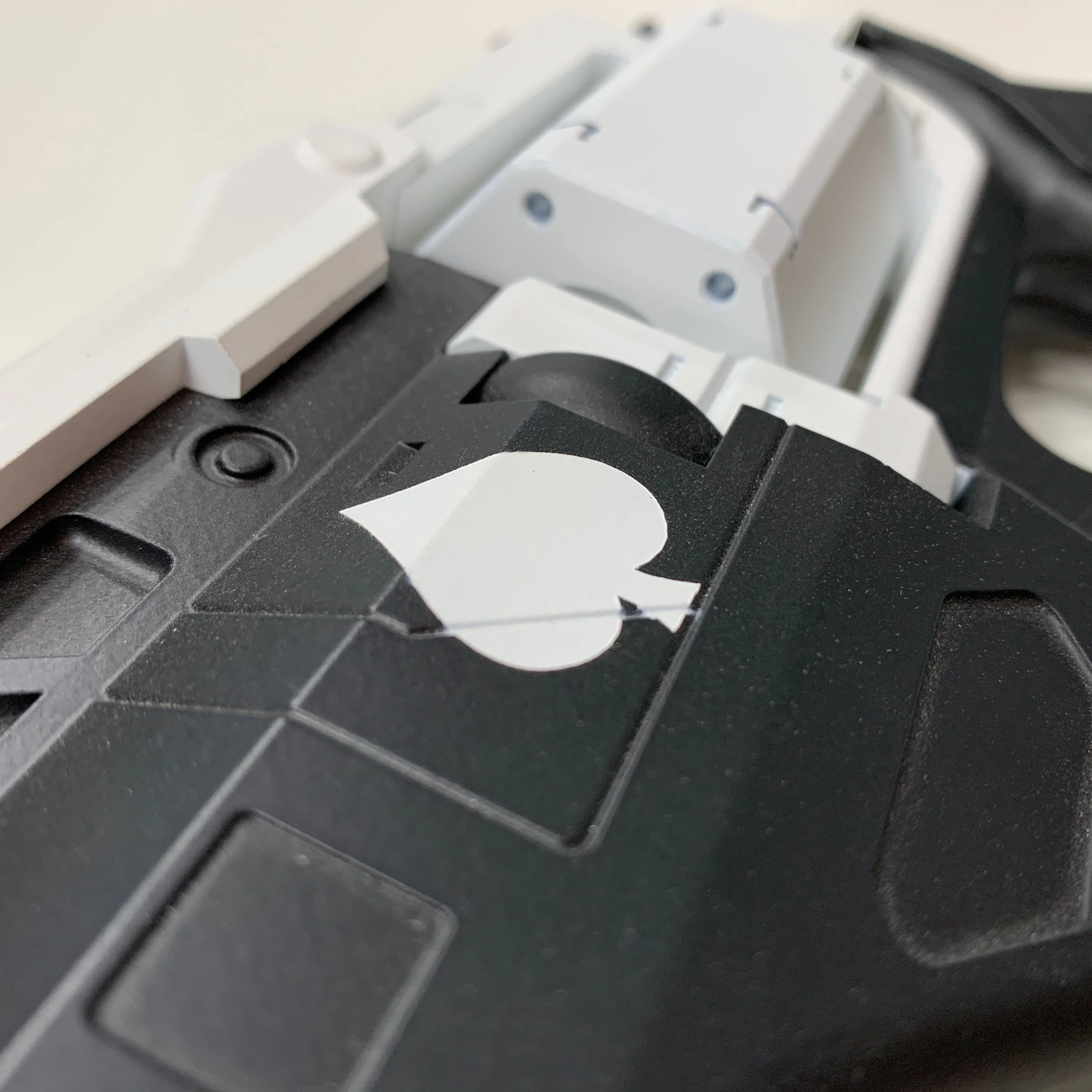

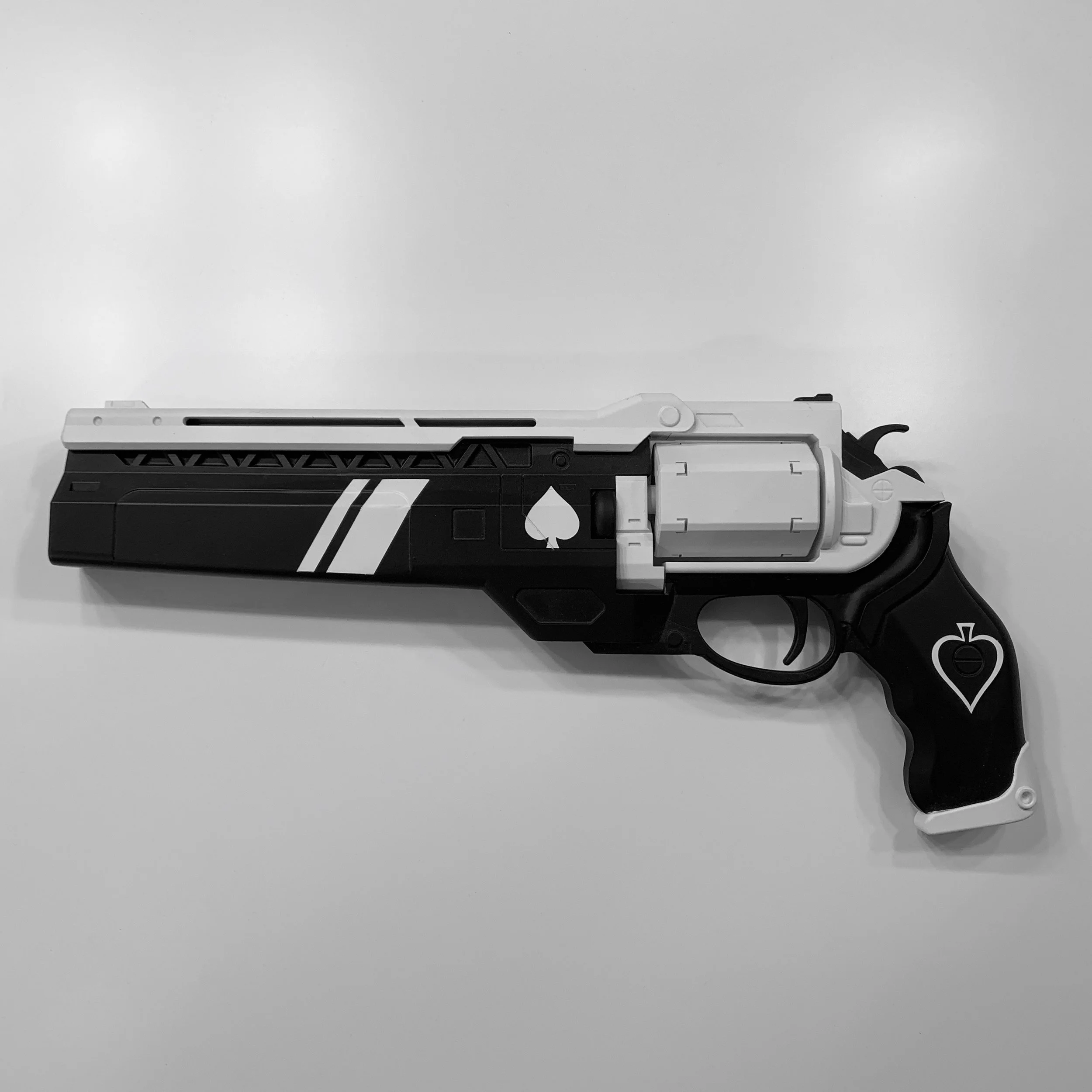

Ace of Spades // Destiny

Solidworks

SLA 3D printed parts, carbon fiber rods in the stand

Spray paint, vinyl stencils

*see STORE tab for files*

June 2016

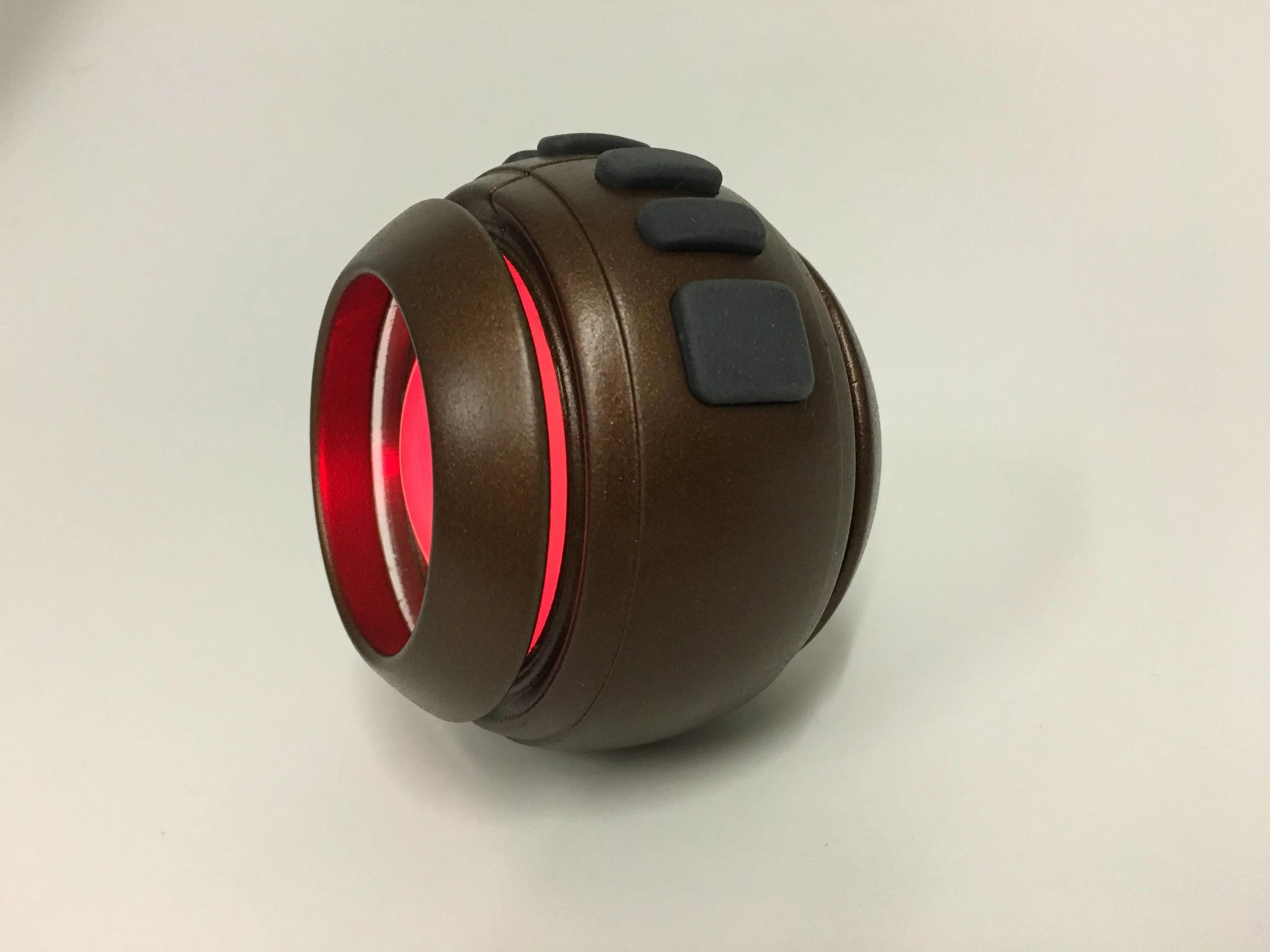

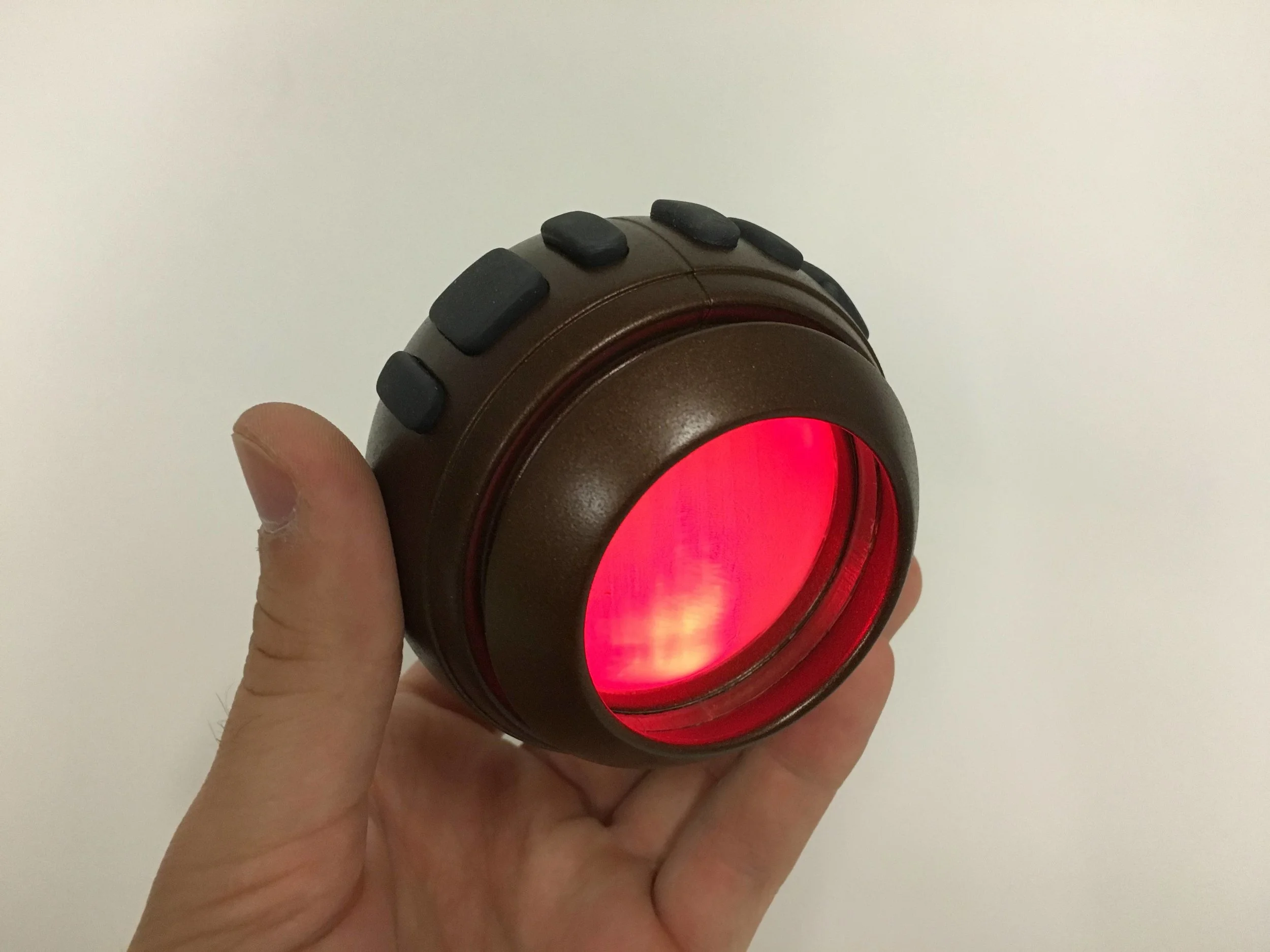

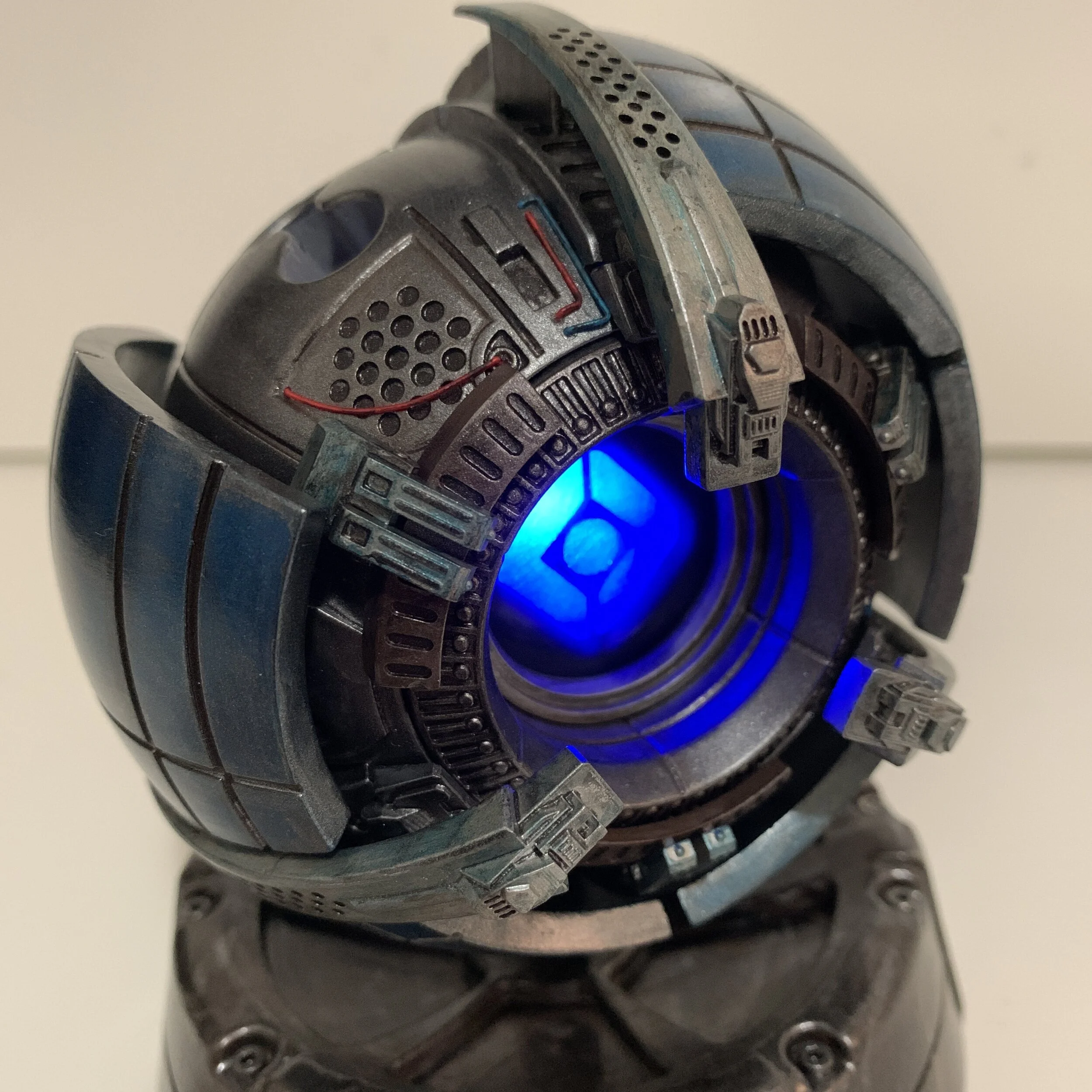

Vex Eye - Destiny

An item that I created as a ‘souvenir’ that your character may have taken from a Vex (murderous time-manipulating robot) after successfully completing an endgame activity

Solidworks

SLA 3D printed parts

Spray paint

LED

January 2018

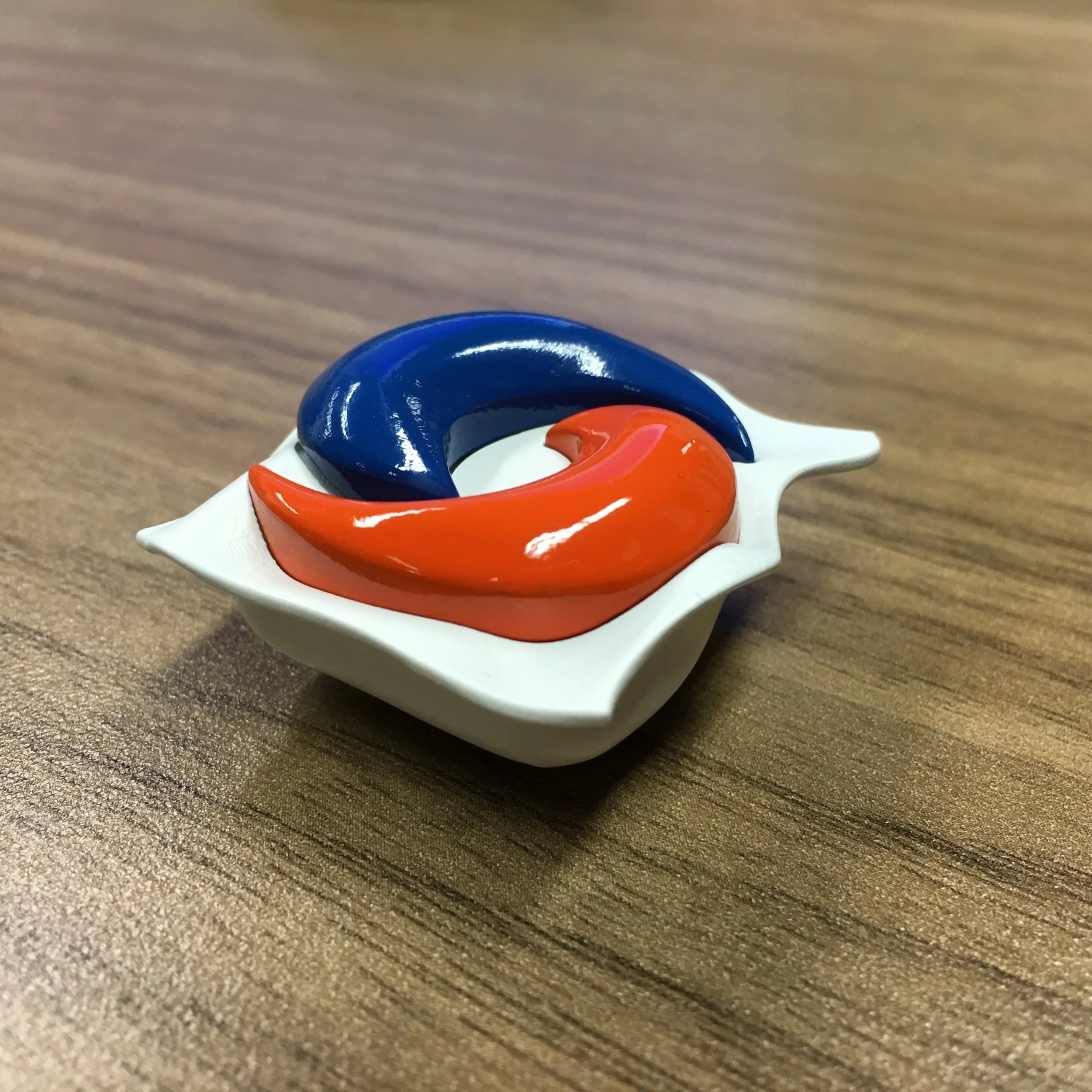

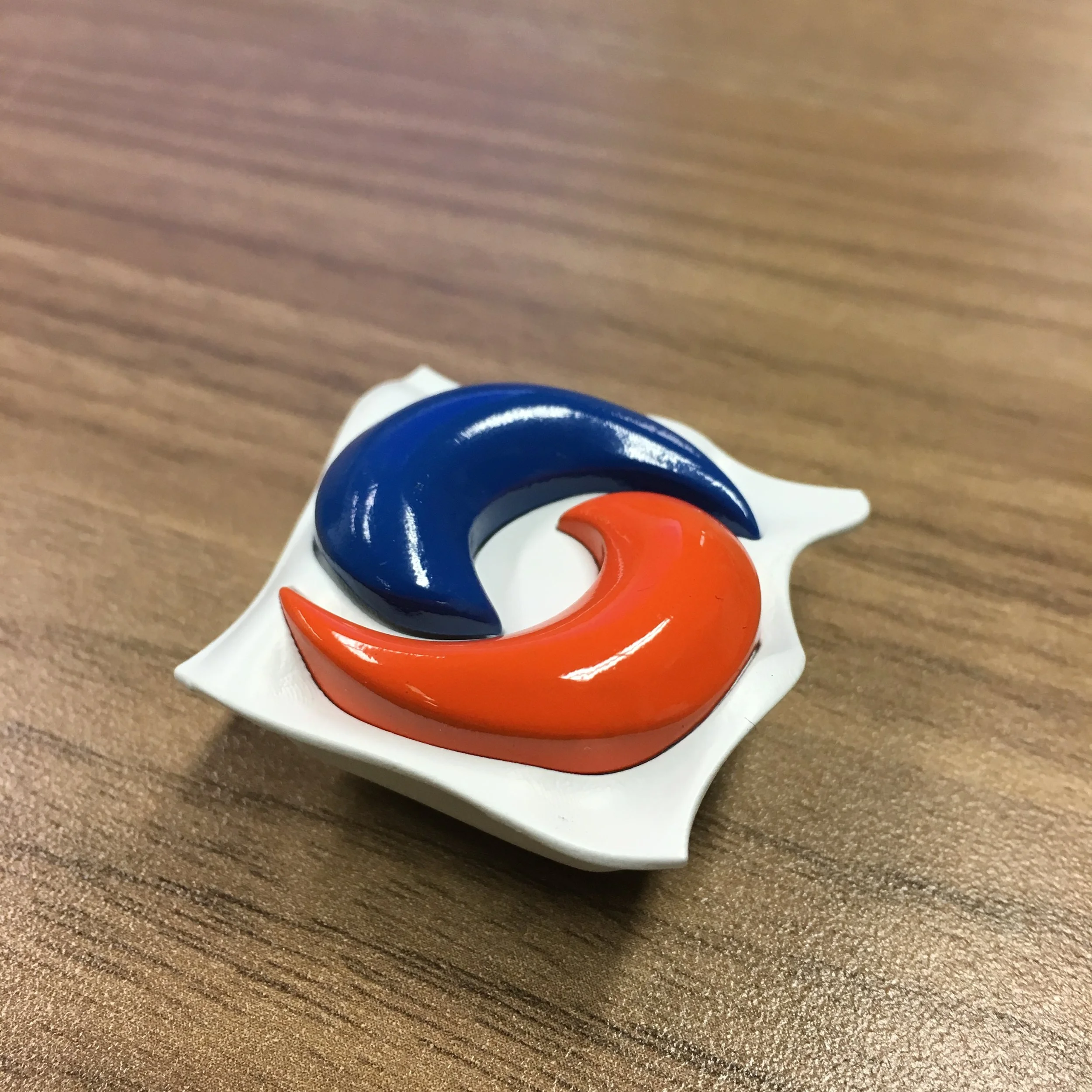

Wanted to feel like a kid again so I hopped on the Tide Pods train.

Solidworks

SLA printed parts

Spray paint

It was delicious.

November 2017

Commissioned piece for Titanfall 2 Cosplay

Solidworks, Sculptris

FDM printed parts, webbing

Always striving towards the perfect margherita.

Recent innovations:

The Obi-Wan Bulgogi: Korean bulgogi beef, caramelized onions, scallions

BBQ chicken with caramelized onions and the inside of broccoli stems

Prosciutto, arugula, grape must drizzle

Hawaiian but with bacon instead of ham because bacon

Fennel sausage, caramelized onion, goat cheese

Just add caramelized onions to most things - it’ll turn out pretty tasty.

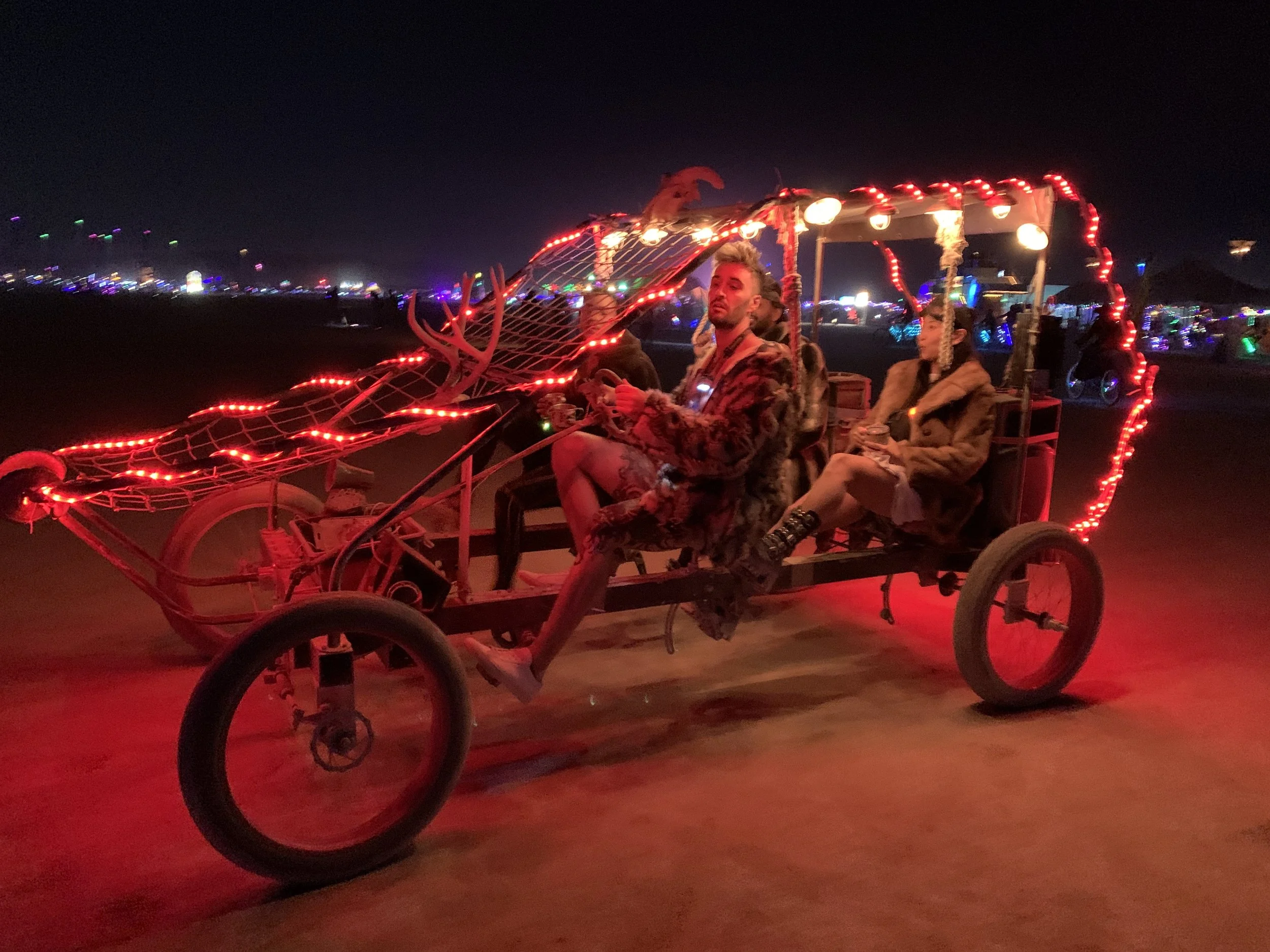

It’s a bike because it has pedals.

See you on playa :)
